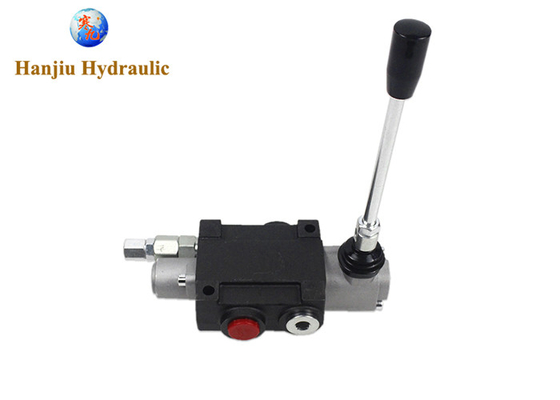

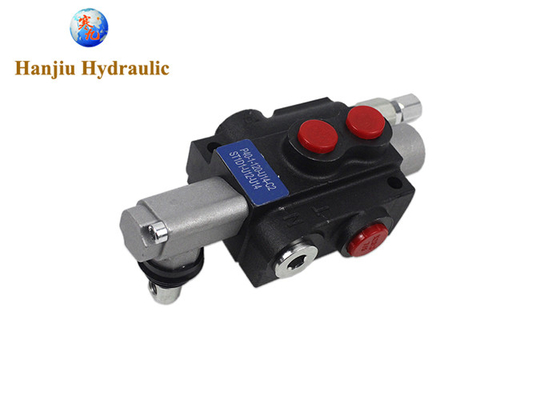

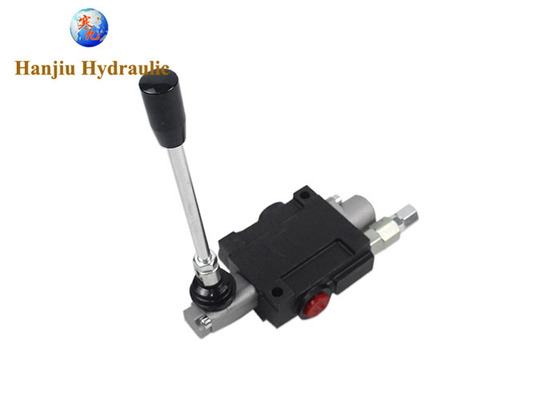

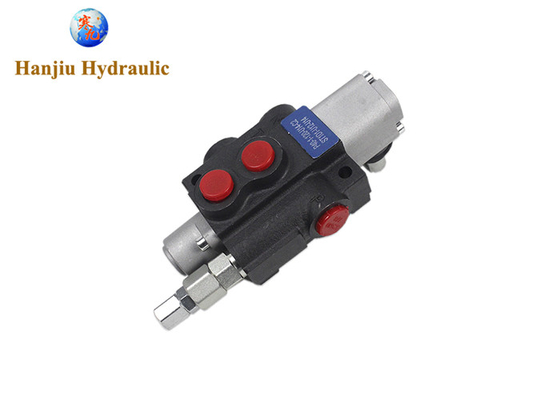

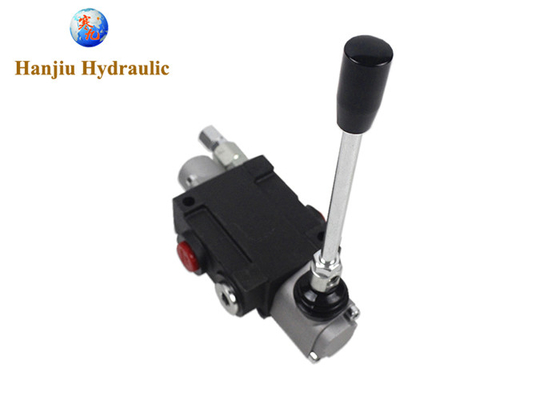

01P40 3 Way Manual Hydraulic Control Valves OEM Spring Return Handel At 180°

Model Number: P40-1-120-U14-C2ST1D1-U12-U14 (6)

Parameters:

Short introduction:

P40 hydraulic valve is a multi-way reversing valve commonly used in engineering machinery and industrial equipment.
It is mainly used to control the movement direction, speed and working order of the actuators in the hydraulic system.
The "P" in its name stands for "Parallel" (parallel oil circuit), and "40" means that its maximum rated flow is 40 liters/minute.

Technical features:
Compact structure, modular design, can freely combine multiple valve plates according to needs to meet the needs of different circuit controls.
High pressure capability: Its maximum working pressure can generally reach 250 bar, which is suitable for high-intensity working environments.
Multiple control methods: Supports multiple driving methods such as handle control, electromagnetic control, pneumatic control, hydraulic control, etc., which is convenient for integration with different systems.
Reliable sealing performance: Use high-quality seals to reduce internal and external leakage, and improve system efficiency and service life.
Multi-function configuration: Optional auxiliary functions such as overflow valve, check valve, anti-dry load valve, etc. can meet the needs of complex working conditions.

Application areas:
P40 hydraulic valves are widely used in agricultural machinery (such as tractors, combine harvesters), engineering machinery (such as loaders, excavators), sanitation equipment (such as garbage trucks, sweepers) and industrial automation equipment. Its stable performance and flexible combination make it perform well in multi-actuator collaborative control systems, especially suitable for occasions where multiple cylinders or motors need to act simultaneously or sequentially.

Summary:
P40 hydraulic valves play a key role in hydraulic control systems with their high performance, scalability and good versatility. Whether in high-load engineering equipment or in the field of precision-controlled industrial automation, it can provide efficient and reliable solutions.

Select flow, control method, stem function, port size you need, and contact us for a quote.

We look forward to working with you.
