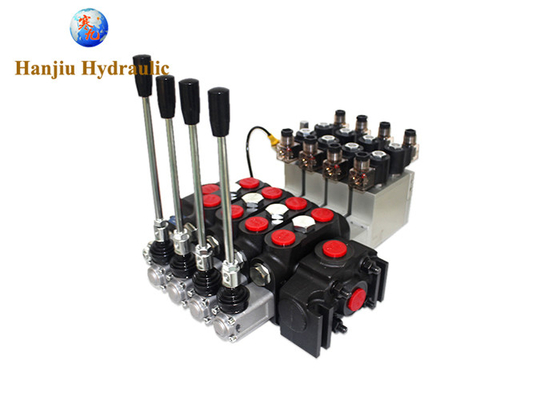

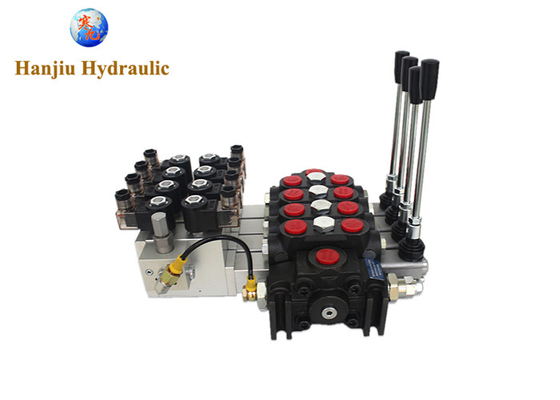

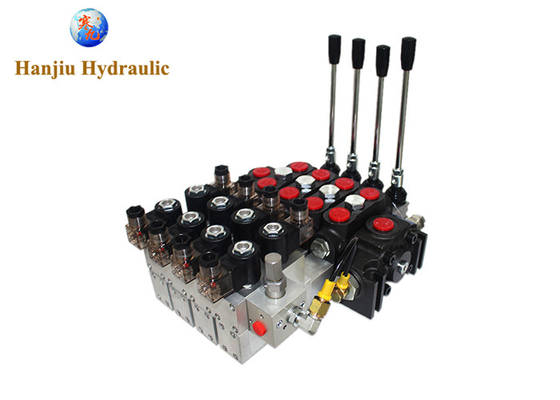

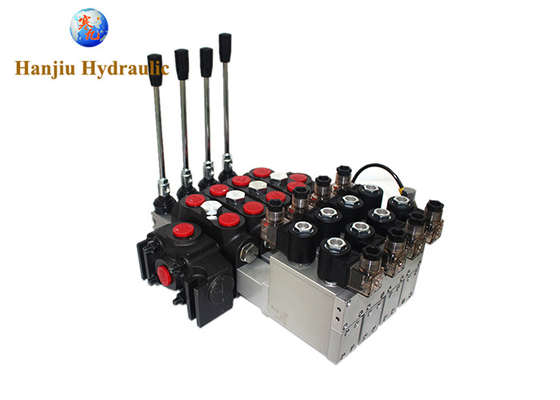

Model No.: DCV140, 4 BANK, 24V
Key parameters:
| flow rate |
140liters |
| number of spools |
4spools |
| inlet section valve |
side inlet, with relief valve |
| relief valve set pressure |
315bar |
| inlet port size |
G1 |
| spool type |
3 positon |
| handle side arrangement |
standard handle |
| spool cap side arrangement |
3position, spring return |
| working section arrangement |
standard type |
| work port size |
G3/4 |
| outlet section type |
top outlet |
| outlet port size |
G1 |
Short introduction:
DCV140 hydraulic valve is a high-performance multi-way directional valve, mainly used in medium and high-pressure hydraulic systems, and is widely used in engineering machinery, agricultural equipment and industrial automation. This series of valves has excellent flow control capabilities and multi-functional configurations, and is suitable for a variety of complex working conditions.
Technical features:
High flow design: The rated flow of DCV140 can reach 140 liters/minute, which is suitable for large-flow, high-efficiency hydraulic systems.
High working pressure: The maximum working pressure can usually reach 315 bar, ensuring stable operation under heavy load conditions.
Modular structure: Supports multi-valve combination, which is convenient for expanding multiple actuator controls to meet complex control needs.
Multiple control methods: Supports manual, electric control, hydraulic control, proportional control and other control methods to adapt to equipment with different degrees of automation.
Rich customization functions: Optional load holding valves, overflow valves, check valves, etc., enhance system safety and versatility.
Excellent sealing and durability: Use high-quality materials and sealing technology to reduce leakage and extend service life.
Application areas:
DCV140 hydraulic valves are widely used in various types of heavy machinery and equipment, such as excavators, cranes, bulldozers, forestry machinery and large agricultural machinery. It is particularly suitable for equipment that needs to control multiple hydraulic cylinders or motors at the same time, and has significant advantages in achieving precise motion control, load holding, synchronous operation, etc.
Summary:
DCV140 hydraulic valves have become an ideal choice in heavy hydraulic systems due to their high flow, high pressure and multi-functional configuration. Its modular and intelligent design concept not only improves the flexibility and maintainability of the system, but also greatly improves the operating efficiency and equipment performance. Whether in harsh environments or high-precision operating occasions, DCV140 can provide safe, stable and reliable hydraulic control solutions.
Select the flow, control mode, stem function, port size you need, and contact us for the latest quotation.
Our hydraulic valves will contribute to your business.
