Hydraulic Motor CB11480558 - AXT13783 For sugarcane harvester charlynn 2k series motor

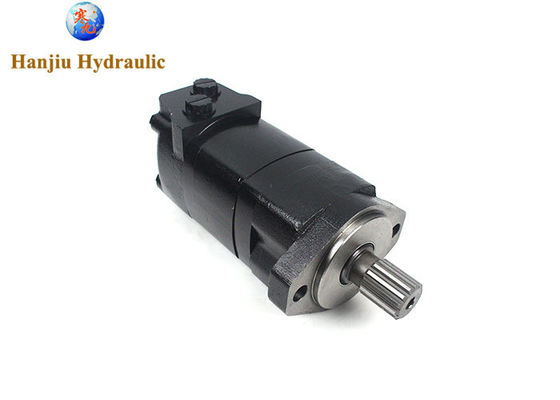

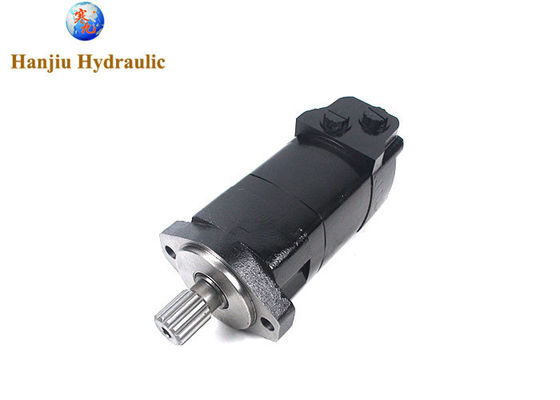

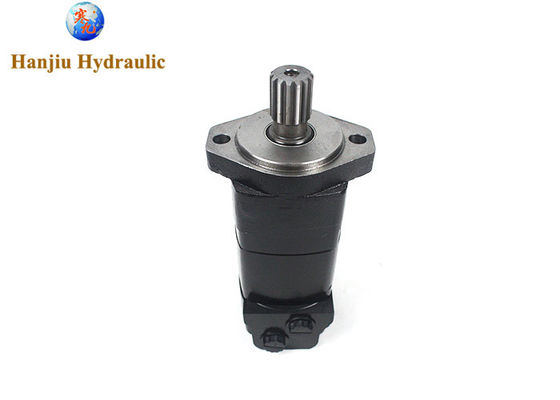

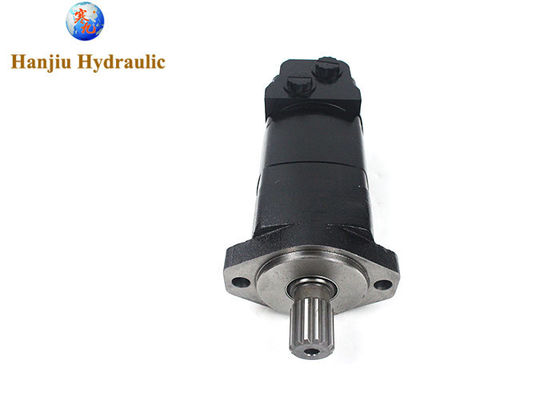

Large Image : Hydraulic Motor CB11480558 - AXT13783 For sugarcane harvester charlynn 2k series motor

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE
Model Number:	BMK2-315

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	90 USD
Packaging Details:	1 pc/ inner carton, 2 pcs/ outer carton, 31x31x17cm, transport with wooden pallet, 650 pcs/ 20GP, 1300 pcs/ 40GP
Delivery Time:	35 - 45 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,Payple
Supply Ability:	10000 pieces per year

Contact Now

Detailed Product Description

Type:	Low Speed High Torque Motor	Material:	Cast Iron
Displacement:	315ml/r	Flange:	2 Bolt SAE A Flange
Port Size:	Manifold Ports	Drain Line:	7/16-20UNF
Speed:	246 - 365 Rpm	Torque:	765 - 885 Nm
Highlight:	Hydraulic Motor CB11480558 sugarcane harvester , Orbit Hydraulic Motor AXT13783 , Charlynn 2K series hydraulic motor

Hydraulic Motor CB11480558 - AXT13783 For Sugarcane Harvester Charlynn 2K Series

Product Specifications

Attribute	Value
Type	Low speed high torque motor
Material	Cast iron
Displacement	315ml/r
Flange	2 Bolt SAE A Flange
Port size	Manifold Ports
Drain line	7/16-20UNF
Speed	246 - 365 rpm
Torque	765 - 885 nm

Product Overview

Hanjiu Technology produces BMK2 series hydraulic disc motors that match Eaton Charlynn 2000 Motor specifications. These motors are designed for sugarcane harvesters, offering identical performance at a cost-effective price point to optimize your supply chain.

Key Specifications

Model No.	CB11480558 / AXT13783
Type	BMK2 Motor Eaton 2000 Series
Speed	385 - 577 rpm
Torque	540 - 665 nm
Mounting	2 Bolt SAE A Flange
Shaft	Spline shaft

Technical Specifications

Type	BMK2 65	BMK2 80	BMK2 100	BMK2 125	BMK2 160	BMK2 200	BMK2 250	BMK2 315	BMK2 400	BMK2 475
Geometric displacement (cm³/rev.)	65	80	100.9	129.8	156.8	193.4	242.5	304.3	390.8	485
Max. speed (rpm) cont.	835	800	742	576	477	385	308	246	191	153
Max. speed (rpm) int.	990	980	924	720	713	577	462	365	287	230
Max. torque (N*m) cont.	185	235	295	385	455	540	660	765	775	845
Max. torque (N*m) int.	245	345	445	560	570	665	820	885	925	930

* Continuous pressure: Max. value of operating motor continuously.
* Intermittent pressure: Max. value of operating motor in 6 seconds per minute.
* Peak pressure: Max. value of operating motor in 0.6 second per minute.

Our Advantages

Technical strength: ISO 9001 certified with advanced production equipment and processes
Production capacity: Mass production capability with efficient logistics for timely delivery
Industry experience: Extensive knowledge of orbital motor industry standards and requirements
After-sales service: Comprehensive technical support system
R&D innovation: Continuous tracking of industry trends
Cost efficiency: Competitive pricing with optimized production costs
