sugarcane harvester parts CB11480557 hydraulic drive motor with wheel flange, tapered shaft

Large Image : sugarcane harvester parts CB11480557 hydraulic drive motor with wheel flange, tapered shaft

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE
Model Number:	BMK2-315

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	90 USD
Packaging Details:	1 pc/ inner carton, 2 pcs/ outer carton, 31x31x17cm, transport with wooden pallet, 650 pcs/ 20GP, 1300 pcs/ 40GP
Delivery Time:	35 - 45 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,Payple
Supply Ability:	10000 pieces per year

Contact Now

Detailed Product Description

Type:	Low Speed High Torque Motor	Material:	Cast Iron
Displacement:	400ml/r	Flange:	4bolts Wheel Flange
Port Size:	SAE Ports	Drain Line:	7/16-20UNF
Speed:	246 - 365 Rpm	Torque:	765 - 885 Nm
Highlight:	sugarcane harvester hydraulic drive motor , CB11480557 hydraulic motor wheel flange , tapered shaft hydraulic motor sugarcane

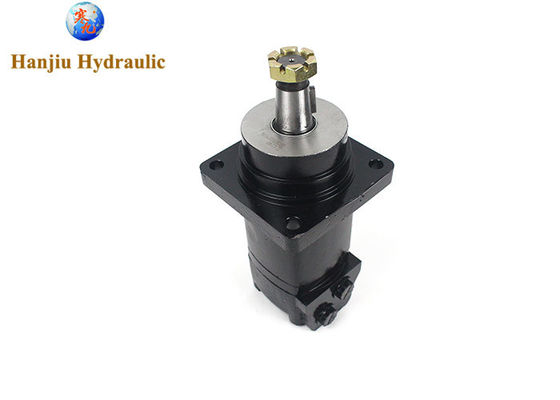

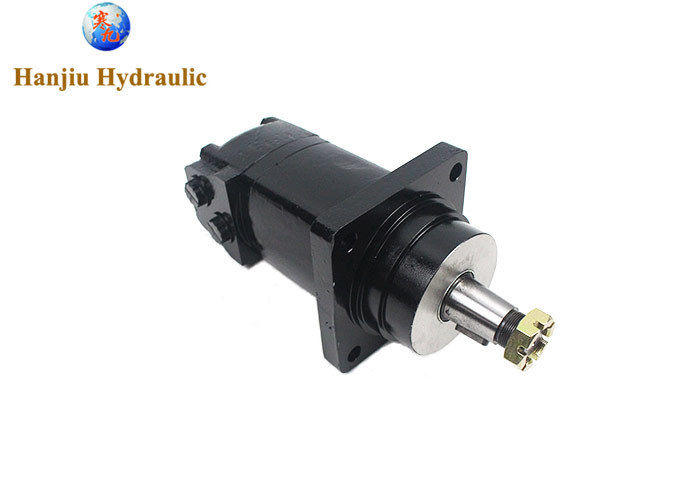

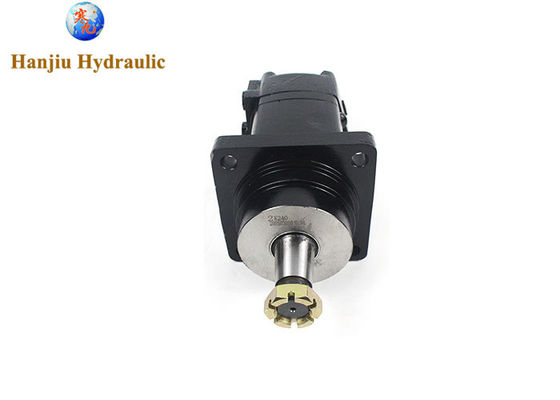

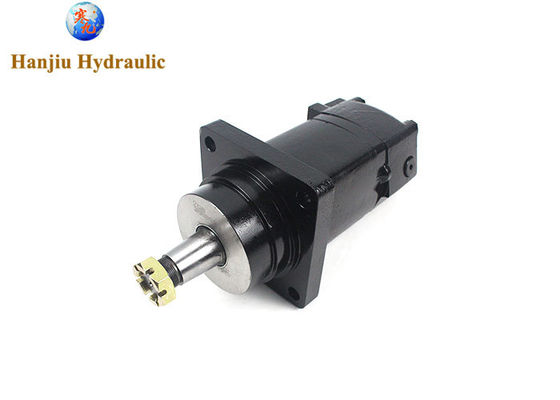

CB11480557 Hydraulic Drive Motor with Wheel Flange and Tapered Shaft

Key Specifications

Attribute	Value
Type	Low speed high torque motor
Material	Cast iron
Displacement	400ml/r
Flange	4-bolts wheel flange
Port size	SAE Ports
Drain line	7/16-20UNF
Speed	246 - 365 rpm
Torque	765 - 885 nm

Product Overview

The CB11480557 hydraulic drive motor is specifically designed for sugarcane harvesters, featuring a wheel flange and tapered shaft configuration. This BMK2 series motor matches Eaton Char-Lynn 2000 series specifications while offering cost-effective performance.

Quick Specifications

Model No.	CB11480557
Type	BMK2 Motor (Eaton 2000 series compatible)
Speed	385 - 577 rpm
Torque	540 - 665 nm
Mounting	4-bolts wheel flange
Shaft	Tapered shaft

Technical Specifications

Model	BMK2-400
Geometric displacement (cm³/rev)	390.8
Max. speed (rpm)	Continuous: 191 Intermittent: 287
Max. torque (N*m)	Continuous: 775 Intermittent: 925
Max. pressure drop (MPa)	Continuous: 15.5 Intermittent: 17 Peak: 20.5
Max. flow (L/min)	Continuous: 75 Intermittent: 115
Weight (kg)	12

* Continuous pressure: Maximum value for continuous operation
* Intermittent pressure: Maximum value for 6 seconds per minute operation
* Peak pressure: Maximum value for 0.6 second per minute operation

Compatible Models

Hanjiu Part No.	OEM Part No.
404335	104-3358-006
405517	104-1029-006
408848	104-1035-006
408849	104-1422-006
CB11480557	105-1411-006
CB11480558	104-3001-006
CB11480559	104-3130-006
CB11480555	105-1308-006
