BME2 Series Geroler orbital motors, 200cc 4 bolts square flange with woodruff key shaft for agricultural machines

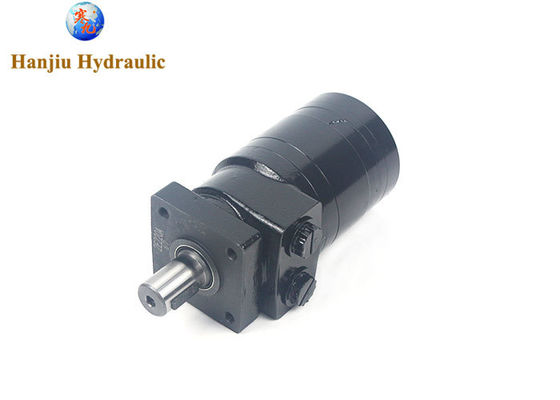

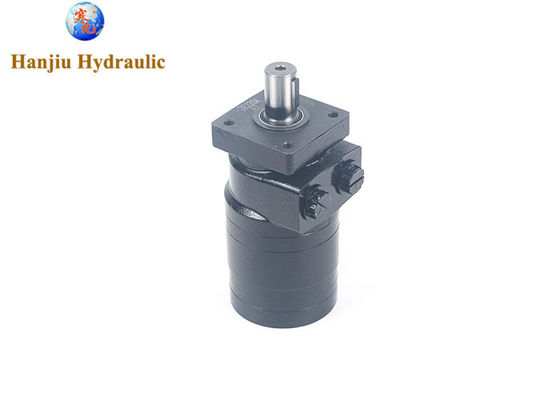

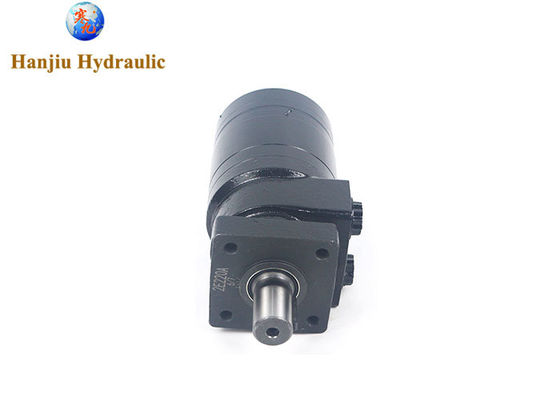

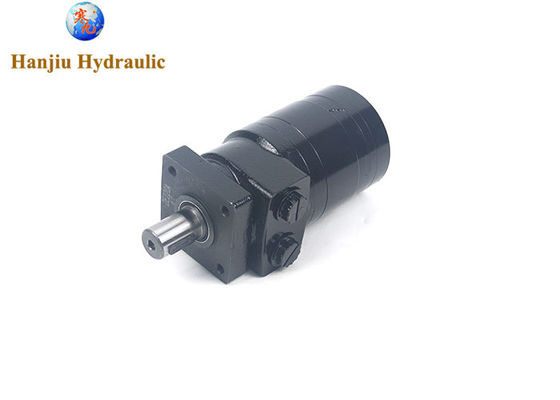

Large Image : BME2 Series Geroler orbital motors, 200cc 4 bolts square flange with woodruff key shaft for agricultural machines

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU
Certification:	CE
Model Number:	BME2-200-H4S-K

Payment & Shipping Terms:

Minimum Order Quantity:	30 Sets
Price:	Negotiable
Packaging Details:	Carton Packing and finally with a Tray, or Wooden Box
Delivery Time:	20-25 work days
Payment Terms:	L/C,T/T
Supply Ability:	300000 sets per year

Contact Now

Detailed Product Description

Type:	High Torque Hydraulic Motor	Max Speed:	724rpm-924rpm
Displacement:	200cc	Warranty:	12-18 Months
Application:	Agricultural Machines	Torque:	295N.M-5445N.M
Flow:	75--95 L/MIN	Material:	Cast Iron
Highlight:	BME2 Geroler orbital motor , 200cc hydraulic motor , agricultural hydraulic motor

BME2 Series Geroler Orbital Motors, 200cc 4 Bolts Square Flange with Woodruff Key Shaft for Agricultural Machines

Product Specifications

Attribute	Value
Type	High torque hydraulic motor
Max Speed	724rpm-924rpm
Displacement	200cc
Warranty	12-18 months
Application	Agricultural machines
Torque	295N.M-5445N.M
Flow	75-95 L/MIN
Material	Cast iron

Product Details

HANJIU Technology produces the hydraulic motor BME2 series torque motor used on agricultural machines.

Technical Specifications:

Type code: BME2
Displacement: 200cc
Flange: 4-3/8-16 Square-flange, Pilot Ø44.4×2.54
Port: 7/8-14 SAE
Shaft: Cylindrical Shaft Ø25.4, Woodruff key Ø25.4×6.35

Performance Specifications

Type	BME2	BME2	BME2	BME2	BME2	BME2	BME2	BME2	BME2	BME2	BME2
65	80	100	125	160	200	230	250	295	315	375
Geometric displacement (cm³/rev.)	66.8	81.3	101.6	127	157.2	193.6	226	257	287.8	314.5	370
Max. speed (rpm) cont.	667	543	439	350	283	229	247	216	296	178	152
Max. speed (rpm) int.	842	689	553	441	355	289	328	287	254	235	199
Max. torque (N*m) cont.	126	157	191	245	307	382	378	381	393	448	439
Max. torque (N*m) int.	176	215	268	335	422	520	528	543	547	587	613

Orbital Motor Selection Guide

There are many different types of orbital motors, and the specific type of orbital motor to be selected needs to be analyzed in relation to the requirements of the use. Consider the following factors when selecting an orbital motor:

The need for motor torque size (determined by system pressure)
The required motor speed
Motor connection form and back pressure considerations
Motor system back pressure requirements (some agricultural machinery auxiliary motors require up to 60bar)
Relationship between motor output speed and back pressure capacity
Hydraulic motor installation requirements and volume constraints
Availability and delivery time of common models

Understanding types of Orbital Motors can help users efficiently shop for products. Visit our official website for more information or to purchase related products.
