BMER-2-300-FH-SW Hydraulic motor low speed high torque 18.08 cubic inch displacement

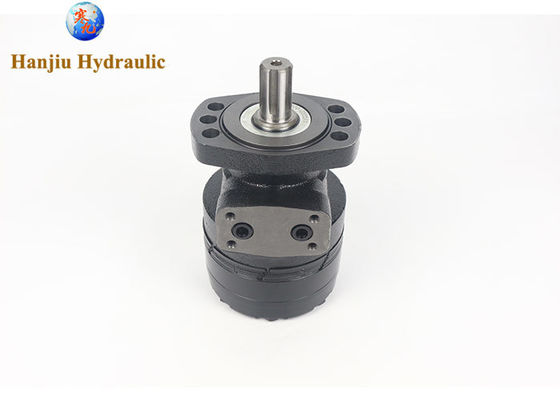

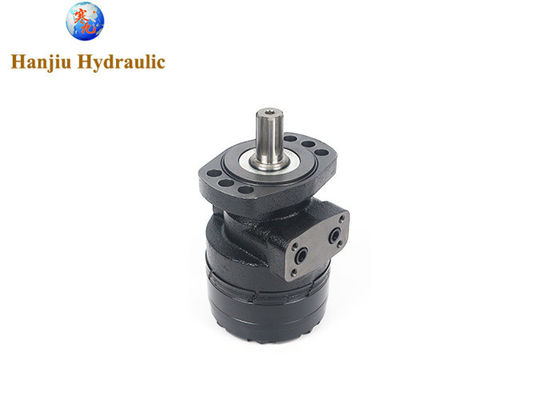

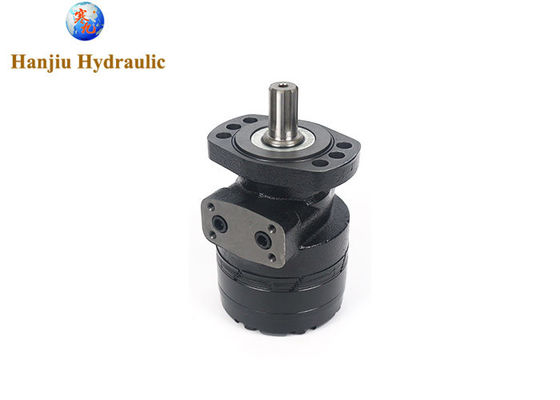

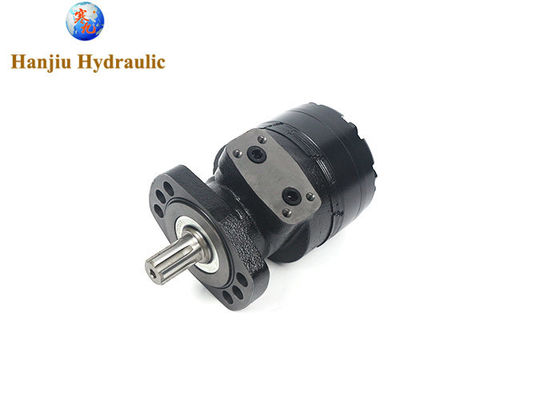

Large Image : BMER-2-300-FH-SW Hydraulic motor low speed high torque 18.08 cubic inch displacement

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE, ISO9001
Model Number:	BMER-2-300-FH-SW

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	170 usd/pc
Packaging Details:	box, pallet
Delivery Time:	35 - 45 work days
Payment Terms:	T/T,Western Union
Supply Ability:	10000 pieces per year

Contact Now

Detailed Product Description

Product:	Low Speed High Torque Hydraulic Motor	Model No.:	BMER-2-300-FH-SW
Size:	300ml/r	Flange:	Magneto Mount 6-Hole Flange
Shaft:	25.4mm Spline Shaft SAE 6B	Rotation:	CCW
Port:	7/8-14UNF	Material:	Cast Iron
Highlight:	low speed high torque hydraulic motor , hydraulic motor 18.08 cubic inch , BMER-2-300-FH-SW hydraulic motor

BMER-2-300-FH-SW Hydraulic Motor - Low Speed High Torque (18.08 Cubic Inch Displacement)

Product Specifications

Attribute	Value
Product	Low Speed High Torque Hydraulic Motor
Model No.	BMER-2-300-FH-SW
Size	300ml/r
Flange	Magneto Mount 6-Hole flange
Shaft	25.4mm spline shaft SAE 6B
Rotation	CCW
Port	7/8-14UNF
Material	Cast iron

Quick Specifications

Model No.: BMER-2-300-FH-SW
Compatible with White motor RE530/531 and Parker TG series motor
Displacement: 300 ml/r
Flange: Magneto mount 6-hole
Pilot: 82.55*2.8
Ports: BMER-2-300-FH-SW
Output Shaft: Ø25.4, splined key SAE 6B
Rotation: Right
Paint: Black

Technical Specifications

Type	BMER 125	BMER 160	BMER 200	BMER 230	BMER 250	BMER 300	BMER 350	BMER 375	BMER 475	BMER 540	BMER 750
Geometric displacement (cm3/rev.)	118	156	196	228	257	296	345	371	462	540	745
Max. speed (rpm) cont.	360	375	330	290	290	250	220	200	160	140	100
Max. speed (rpm) int.	490	470	425	365	350	315	270	240	195	170	120
Max. torque (N•m) cont.	325	450	530	625	700	810	905	990	1085	980	1050
Max. torque (N•m) int.	380	525	600	710	790	930	1035	1140	1180	1240	1180
Max. torque (N•m) peak	450	590	750	870	980	1120	1285	1360	1260	1380	1370
Max. output (kW) cont.	12.0	15.0	15.5	16.0	17.5	18.0	17.5	16.5	14.5	11.5	8.0
Max. output (kW) int.	14.0	17.5	18.0	19.0	20.0	21.0	20.0	19.0	16.5	15.0	10.0
Max. pressure drop (MPa) cont.	20.5	20.5	20.5	20.5	20.5	20.5	20.5	20.5	17.5	14	10.5
Max. pressure drop (MPa) int.	24	24	24	24	24	24	24	24	19	17.5	12
Max. pressure drop (MPa) peak	27.6	27.6	27.6	27.6	27.6	27.6	27.6	27.6	20.5	20.5	14
Max. flow (L/min) cont.	45	60	70	70	75	80	80	75	75	75	75
Max. flow (L/min) int.	60	75	85	85	90	95	95	90	90	90	90

Typical Applications

Engineering machinery: Excavator slewing motor, loader drive wheel motor
Agricultural machinery: Combine harvester cutting table drive, tractor hydraulic suspension system
Marine equipment: Ship anchor, underwater robot propeller
Metallurgical equipment: Rolling mill press down device, steel mill ladle tipping mechanism

With the core advantages of "low speed and high torque, compact structure and shock resistance", orbital motor is a cost-effective power element in the industrial field with outstanding performance under heavy load and severe working conditions. When choosing an orbital motor, it is necessary to weigh its advantages and disadvantages according to the actual needs (such as speed, torque, environmental conditions) in order to realize the best performance.
