hydraulic orbital motor M+S motor MT315K-RS，315cc tapered shaft motor with speed sensor

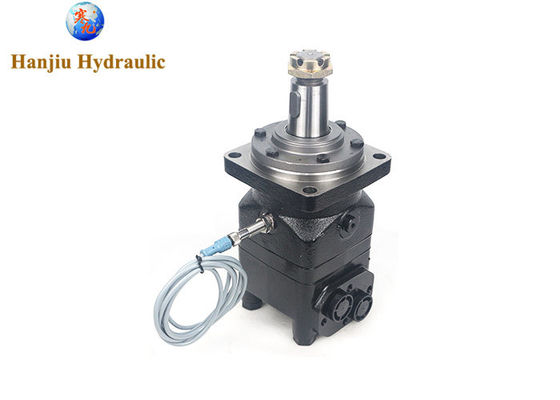

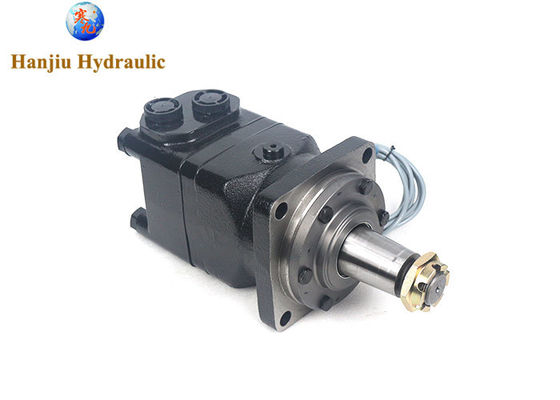

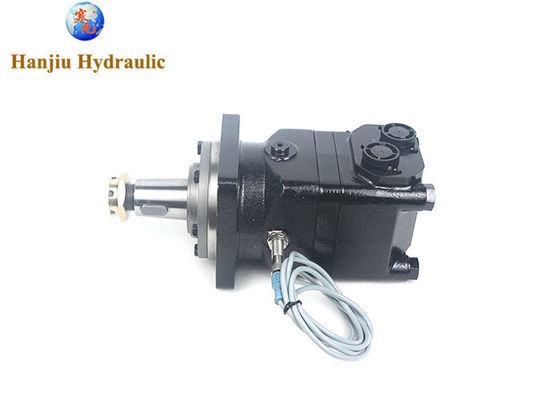

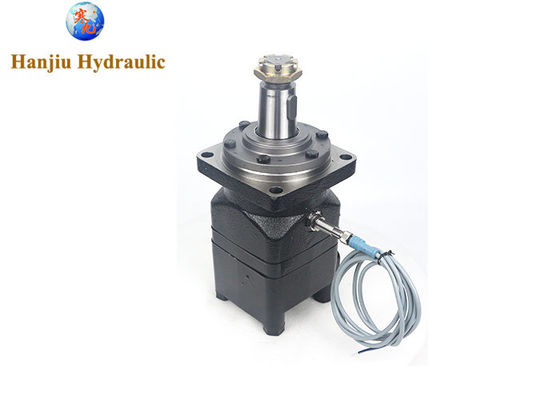

Large Image : hydraulic orbital motor M+S motor MT315K-RS，315cc tapered shaft motor with speed sensor

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	ISO9001:2015
Model Number:	BMT315

Payment & Shipping Terms:

Minimum Order Quantity:	20 Sets
Price:	Negotiable
Packaging Details:	Carton Packing, and finally with pallet or wooden box
Payment Terms:	L/C,T/T,Western Union,Paypal
Supply Ability:	100,000 Sets per year

Contact Now

Detailed Product Description

Categories:	Hydraulic Heavy Motor	Name:	Bmt315
Max.output:	Cont.34.9kw/int.40kw	Max Torque:	Cont.950N.m/int.1140N.m
Flange:	Square Flange	Shaft:	Tapered Shaft
Highlight:	hydraulic orbital motor 315cc , tapered shaft hydraulic motor , orbit motor with speed sensor

Hydraulic Orbital Motor M+S Motor MT315K-RS, 315cc Tapered Shaft Motor with Speed Sensor

Product Attributes

Attribute	Value
Categories	Hydraulic Heavy Motor
Name	bmt315
Max.output	cont.34.9kw/int.40kw
max torque	cont.950N.m/int.1140N.m
Flange	square flange
Shaft	tapered shaft

Product Details

Output volume (cc/rev): 315cc
Shaft: ø45 tapered 1:10, Parallel key B12x8x28 DIN6885
max r.p.m.: 380
Torque max. (Nm): 950/1140
Power max. (kW): 30
Pressure difference (bar): 180
Inlet pressure (bar): 280
Volume flow max. (l/min): 125
Engine version: with non-return valves
Connection: G 3/4
Leakage oil connection: G 1/4

Main Specifications

Type	BMT 160	BMT 200	BMT 230	BMT 250	BMT 315	BMT 400	BMT 500	BMT 630	BMT 800
displacement (cm3/rev.)	161.1	201.4	232.5	251.8	326.3	410.9	523.6	629.1	801.8
Max. speed (rpm)	cont. 625 int. 780	cont. 625 int. 750	cont. 536 int. 643	cont. 500 int. 600	cont. 380 int. 460	cont. 305 int. 365	cont. 240 int. 285	cont. 196 int. 233	cont. 154 int. 185
Max. torque (N.m)	cont. 470 int. 560 peak 669	cont. 590 int. 710 peak 838	cont. 670 int. 821 peak 958	cont. 730 int. 880 peak 1036	cont. 950 int. 1140 peak 1346.3	cont. 1080 int. 1260 peak 1450.3	cont. 1220 int. 1370 peak 1643.8	cont. 1318 int. 1498 peak 1618.8	cont. 1464 int. 1520 peak 1665
Max. output (KW)	cont. 27.7 int. 32	cont. 34.9 int. 40	cont. 34.7 int. 40	cont. 34.5 int. 40	cont. 34.9 int. 40	cont. 31.2 int. 35	cont. 28.8 int. 35	cont. 25.3 int. 27.5	cont. 22.2 int. 26.8
Max.pressure drop (MPa)	cont. 20 int. 24 peak 28	cont. 20 int. 24 peak 28	cont. 20 int. 24 peak 28	cont. 20 int. 24 peak 28	cont. 20 int. 24 peak 28	cont. 18 int. 21 peak 24	cont. 16 int. 18 peak 21	cont. 14 int. 16 peak 19	cont. 12.5 int. 13 peak 16
Max. flow (L/min)	rated 80 cont. 100 int. 125	rated 100 cont. 125 int. 150	rated 100 cont. 125 int. 150	rated 100 cont. 125 int. 150	rated 100 cont. 125 int. 150	rated 100 cont. 125 int. 150	rated 100 cont. 125 int. 150	rated 100 cont. 125 int. 150	rated 100 cont. 125 int. 150
Max. inlet pressure (Mpa)	cont. 21 int. 25 peak 30	cont. 21 int. 25 peak 30	cont. 21 int. 25 peak 30	cont. 21 int. 25 peak 30	cont. 21 int. 25 peak 30	cont. 21 int. 25 peak 30	cont. 21 int. 25 peak 30	cont. 21 int. 25 peak 30	cont. 21 int. 25 peak 30
Weight (kg)	19.5	20	20.4	20.5	21	22	23	24	25

Applications

Conveyors
Metal working machines
Road building machines
Mining machinery
Food industries
Agricultural machines
Special vehicles
Plastic and rubber machinery

As a professional manufacturer in the field of hydraulic transmission in China, HANJIU is committed to providing customers all over the world with a complete range of orbital motor products with reliable performance and wide adaptability by virtue of its strong technical strength and mature production technology.
