2P40 Monoblock Hydraulic Valve 40L Flow, 2 Spool, BSP Port G3/8, 3 Position Spring Return

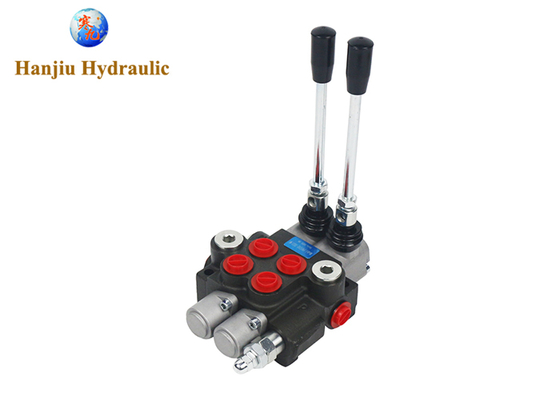

Large Image : 2P40 Monoblock Hydraulic Valve 40L Flow, 2 Spool, BSP Port G3/8, 3 Position Spring Return

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU
Certification:	CE, ISO9001
Model Number:	2P40

Payment & Shipping Terms:

Minimum Order Quantity:	100 Sets
Price:	24.7 usd
Packaging Details:	Carton, Box, Pallets
Delivery Time:	10 - 15 work days
Payment Terms:	T/T
Supply Ability:	300000 sets per year

Contact Now

Detailed Product Description

Item:	Directional Control Valve	Model:	2P40
Bank:	2 Bank	Flow Rate:	40 LPM
Operating Pressure Max:	250 Bar	Dividing Flow:	8 - 12 LPM
Control:	Manual	Application:	Agriculture Machine
Function:	Open Center	Power Beyond Port:	Yes
Highlight:	Monoblock hydraulic valve 40L flow , 2 spool directional control valve , BSP port G3/8 hydraulic valve

2P40 Monoblock Hydraulic Valve 40L Flow, 2 Spool, BSP Port G3/8, 3 Position Spring Return

Product Specifications

Attribute	Value
Item	Directional Control Valve
Model	2P40
Bank	2 bank
Flow rate	40 LPM
Operating pressure max	250 Bar
Dividing Flow	8 - 12 LPM
Control	Manual
Application	Agriculture Machine
Function	Open center
Power Beyond Port	Yes

Welcome to China Hanjiu Hydraulic
The company manufactures hydraulic control valves for agriculture, engineering, and special equipment.
We serve OEMs and hydraulic distributors.
Contact us to learn how we can better assist your business.

Product Overview

This product is part of our P40 series hydraulic valves.

Technical Parameters

Parameter	Value
Model No.	2P40
Function	Open center
Section	2 sections
Flow	Nominal flow rate 40 lpm (10.6 US GPM)
Pressure	250 bar max (3626 psi)
Temperature range	-40℃ ~ 80℃ (-40℉ ~ 176℉)

Features & Capabilities

P40 series Hydraulic Directional Control Valves are economical monoblock type valves with various applications and features of compact structure, low price, stable performance and high versatility.

Control types: manual, cable, pneumatic, electro-hydraulic, solenoid, joystick, etc.
Circuit type: parallel connection
Structure: Monoblock construction, 1-7 section

Applications

Tractors, both ends, flatbed trucks, truck-mounted cranes, agricultural equipment
