3P40 Monoblock Hydraulic Valve 40L Flow, 3 Spool, BSP Port G3/8, 3 Position Spring Return

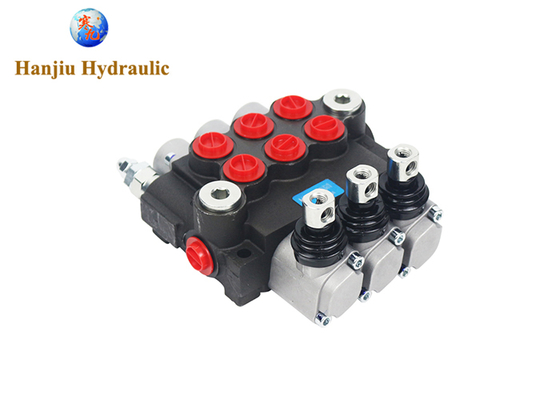

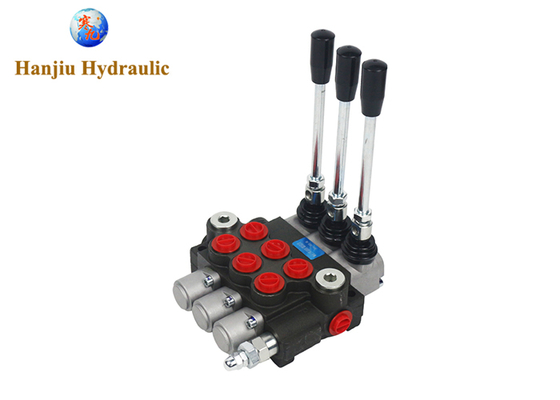

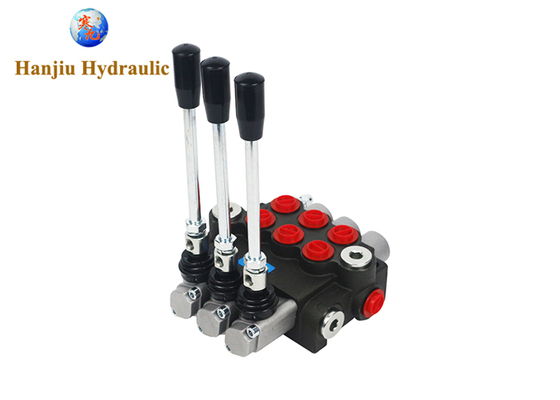

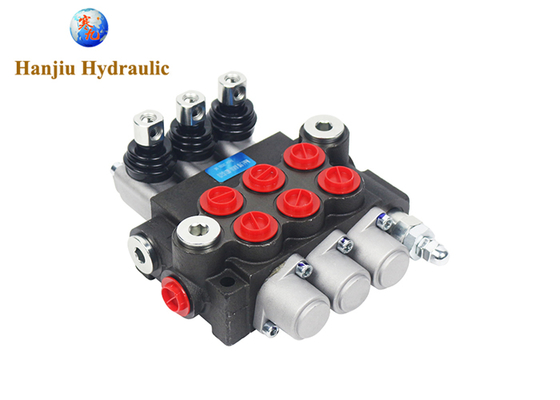

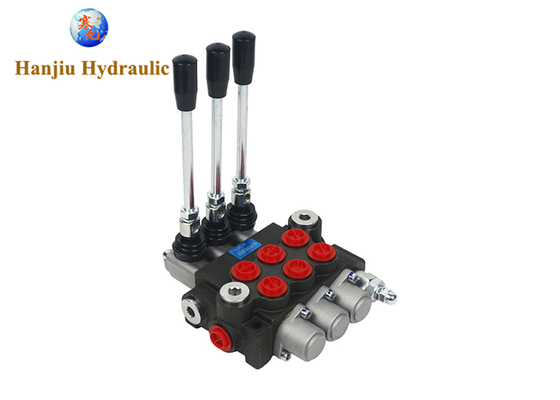

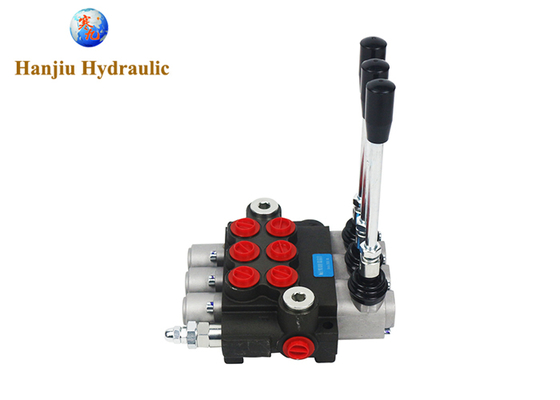

Large Image : 3P40 Monoblock Hydraulic Valve 40L Flow, 3 Spool, BSP Port G3/8, 3 Position Spring Return

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU
Certification:	CE, ISO9001
Model Number:	2P40

Payment & Shipping Terms:

Minimum Order Quantity:	100 Sets
Price:	24.7 usd
Packaging Details:	Carton, Box, Pallets
Delivery Time:	10 - 15 work days
Payment Terms:	T/T
Supply Ability:	300000 sets per year

Contact Now

Detailed Product Description

Item:	Directional Control Valve	Model:	2P40
Bank:	2 Bank	Flow Rate:	40 LPM
Operating Pressure Max:	250 Bar	Dividing Flow:	8 - 12 LPM
Control:	Manual	Application:	Agriculture Machine
Function:	Open Center	Power Beyond Port:	Yes
Highlight:	3P40 monoblock hydraulic valve , 40L flow directional control valve , 3 spool Monoblock Hydraulic Valve

3P40 Monoblock Hydraulic Valve 40L Flow, 3 Spool, BSP Port G3/8, 3 Position Spring Return

Product Specifications

Attribute	Value
Item	Directional Control Valve
Model	2P40
Bank	2 bank
Flow rate	40 LPM
Operating pressure max	250 Bar
Dividing Flow	8 - 12 LPM
Control	Manual
Application	Agriculture Machine
Function	Open center
Power Beyond Port	Yes

Welcome to China Hanjiu Hydraulic

The company manufactures hydraulic control valves for agriculture, engineering, and special equipment. We serve OEMs and hydraulic distributors. Contact us to learn how we can better assist your business.

P40 Series Hydraulic Valve

This product is part of our P40 series hydraulic valves. Please see the product details below:

1. Product Parameters

Model No.	3 P40
Function	Open center
Section	3 sections
Flow	Nominal flow rate 40 lpm (10.6 US GPM)
Pressure	250 bar max (3626 psi)
Temperature range	-40℃ ~ 80℃ (-40℉ ~ 176℉)

2. Features & Functions

P40 series Hydraulic Directional Control Valves are economical monoblock type valves with various applications and features of compact structure, low price, stable performance and high versatility.

Control type: manual, cable, pneumatic, electro-hydraulic, solenoid, joystick, etc.
Circuit type: parallel connection
Structure: Monoblock construction, 1-7 section

3. Applications

Tractors, both ends, flatbed trucks, truck-mounted cranes, agricultural equipment

4. Recommended Products

Series	Type	Control
P40	Monoblock	Manual
P40	Monoblock	Solenoid
P40	Monoblock	Electro-hydraulic
P40	Monoblock	Electro-pneumatic
P40	Monoblock	Pneumatic
P80	Monoblock	Manual
P80	Monoblock	Solenoid
P80	Monoblock	Electro-hydraulic
P80	Monoblock	Electro-pneumatic
P80	Monoblock	Pneumatic
