BMK2-315-WE-T4-SU Hydraulic Gerolor Motor Assembly, 315 Ml/r, 1.25'' Tapper Shaft With Wheel Mounting

BMK2-315-WE-T4-SU Hydraulic Gerolor Motor Assembly, 315 Ml/r, 1.25'' Tapper Shaft With Wheel Mounting
BMK2-315-WE-T4-SU Hydraulic Gerolor Motor Assembly, 315 Ml/r, 1.25'' Tapper Shaft With Wheel Mounting BMK2-315-WE-T4-SU Hydraulic Gerolor Motor Assembly, 315 Ml/r, 1.25'' Tapper Shaft With Wheel Mounting BMK2-315-WE-T4-SU Hydraulic Gerolor Motor Assembly, 315 Ml/r, 1.25'' Tapper Shaft With Wheel Mounting BMK2-315-WE-T4-SU Hydraulic Gerolor Motor Assembly, 315 Ml/r, 1.25'' Tapper Shaft With Wheel Mounting BMK2-315-WE-T4-SU Hydraulic Gerolor Motor Assembly, 315 Ml/r, 1.25'' Tapper Shaft With Wheel Mounting BMK2-315-WE-T4-SU Hydraulic Gerolor Motor Assembly, 315 Ml/r, 1.25'' Tapper Shaft With Wheel Mounting

Large Image :  BMK2-315-WE-T4-SU Hydraulic Gerolor Motor Assembly, 315 Ml/r, 1.25'' Tapper Shaft With Wheel Mounting

Product Details:
Place of Origin: China
Brand Name: HANJIU
Certification: CE, ISO9001
Model Number: BMK2-315-WE-T4-SU
Payment & Shipping Terms:
Minimum Order Quantity: 100 Pieces
Price: 89 usd/pc
Packaging Details: box, pallet
Delivery Time: 0 - 35 work days
Payment Terms: T/T,Western Union
Supply Ability: 200000 pieces per year
Contact Now
Detailed Product Description
Product: Gerotor Hydraulic Motors Model No.: BMK2-315-WE-T4-SU
Size: 315 Ml/r Flange: 4 Bolt, Wheel Mounting
Highlight:

Gerotor hydraulic motor 315 ml/r

,

Hydraulic motor 1.25'' tapper shaft

,

Gerotor motor wheel mounting assembly

BMK2-315-WE-T4-SU Hydraulic Gerolor Motor Assembly, 315 Ml/r, 1.25'' Tapper Shaft With Wheel Mounting
Product Attributes
Attribute Value
Product Gerotor Hydraulic Motors
Model No. BMK2-315-WE-T4-SU
Size 315 ml/r
Flange 4 Bolt, Wheel Mounting
Quick Specifications
Product Gerotor Hydraulic Motors
Model No. BMK2-315-WE-T4-SU
Size 315 ml/r
Flange 4 bolt wheel mount
Shaft 1.25'' tapper shaft
Rotation Clockwise
Port 7/8-14UNF O-ring,7/16-20 UN
Features Danfoss Eaton Charlynn 2000 series interchangeable
Technical Specifications
Type BMK2 BMK2 BMK2 BMK2 BMK2 BMK2 BMK2 BMK2 BMK2 BMK2
65 80 100 125 160 200 250 315 400 475
Geometric displacement (cm3/rev.) 65 80 100.9 129.8 156.8 193.4 242.5 304.3 390.8 485
Max. speed (rpm) cont. 835 800 742 576 477 385 308 246 191 153
Max. speed (rpm) int. 990 980 924 720 713 577 462 365 287 230
Max. torque (N*m) cont. 185 235 295 385 455 540 660 765 775 845
Max. torque (N*m) int. 245 345 445 560 570 665 820 885 925 930
Max. pressure drop (MPa) cont. 20.5 21 21 21 20.5 20.5 20.5 21 15.5 12
Max. pressure drop (MPa) int. 27.5 31 31 31 26 26 26 24 17 14
Max. pressure drop (MPa) peak 31 31 31 31 31 31 31 31 20.5 17
Max. flow (L/min) cont. 55 65 75 75 75 75 75 75 75 75
Max. flow (L/min) int. 65 80 95 95 115 115 115 115 115 115
Weight (kg) 9.2 9.4 9.7 10 10.2 10.5 11 11.5 12 12.4
* Continuous pressure: Max. value of operating motor continuously.
* Intermittent pressure: Max. value of operating motor in 6 seconds per minute.
* Peak pressure: Max. value of operating motor in 0.6 second per minute.
Product Images

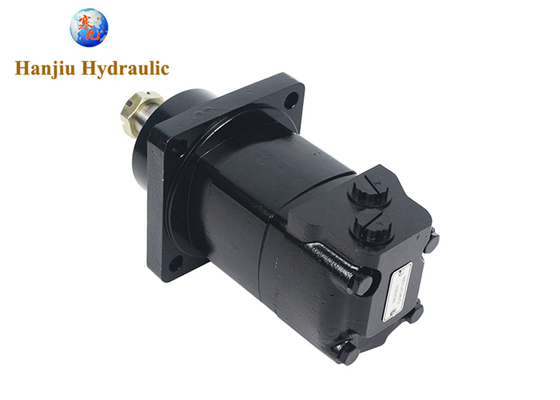

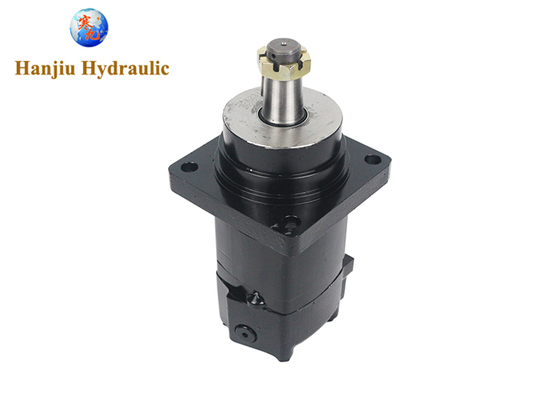

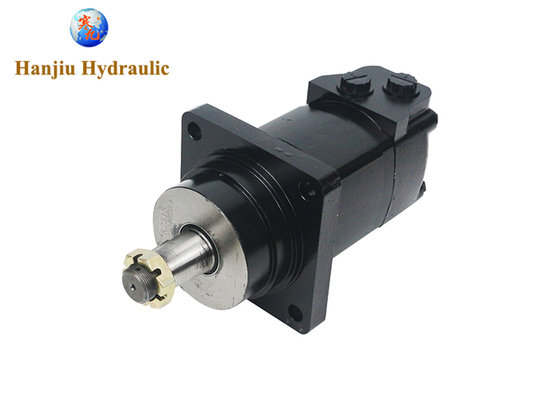

BMK2-315-WE-T4-SU Hydraulic Gerolor Motor Assembly, 315 Ml/r, 1.25'' Tapper Shaft With Wheel Mounting 0 BMK2-315-WE-T4-SU Hydraulic Gerolor Motor Assembly, 315 Ml/r, 1.25'' Tapper Shaft With Wheel Mounting 1 BMK2-315-WE-T4-SU Hydraulic Gerolor Motor Assembly, 315 Ml/r, 1.25'' Tapper Shaft With Wheel Mounting 2

The BMK2 series motor adapts the GEROLER gear set design with high speed distribution flow and high pressure. These motors can be supplied with various options for multifunctional operations in accordance with the application requirements. These low weight advanced construction design motors are manufactured in accordance with the requirements of ISO 9001-2000 quality system.

Compatible Models

More BMK2 series to match Danfoss Eaton Charlynndrive motors

EATON CHAY-LYNN Hydraulic Motors

  • J (129-)
  • H (101-)
  • S (103-)
  • T (158-)
  • W (162-)
  • 2000 (104-, 105-, 106-, 193-)
  • 4000 (109-, 110-, 111-)
  • 6000 (112-, 113-, 114-)
  • 10000 (119-)

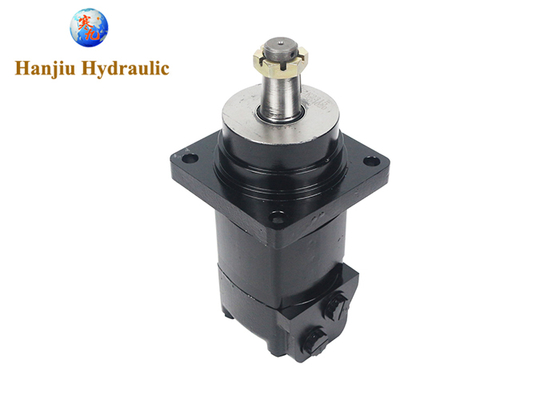

BMK2-315-WE-T4-SU Hydraulic Gerolor Motor Assembly, 315 Ml/r, 1.25'' Tapper Shaft With Wheel Mounting 3
About Hanjiu

We are HANJIU from China, Hanjiu manufactures hydraulic motors. Europe, North America, South America importers, dealers and users love to sell and use Hanjiu's Disc valve motors as Eaton Char-lynn compatible motors. The quality of Hanjiu's motors can meet the needs of users, and the price is low for importers. Importers can sell at a good price and get a good profit. At the same time, their customers have a high return rate.

Our Specializations:

  • We specialize in Eaton Char-lynn replacement/alternative/compatible motors
  • We specialize in Sauer Danfoss replacement/alternative/compatible motors
  • We specialize in Parker replacement/alternative/compatible motors
  • We specialize in Brevini replacement/alternative/compatible Motors
  • We are good at M+S replacement/alternative/compatible motor

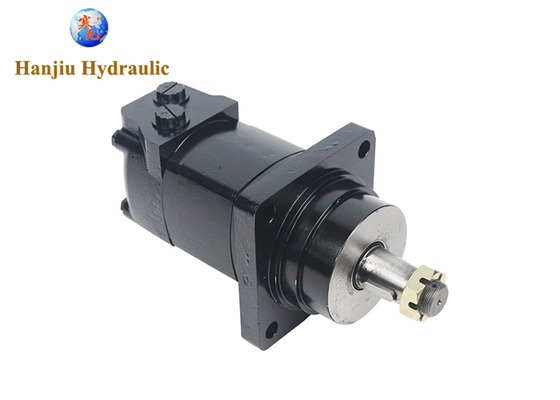

BMK2-315-WE-T4-SU Hydraulic Gerolor Motor Assembly, 315 Ml/r, 1.25'' Tapper Shaft With Wheel Mounting 4
