TG0335MS020 hydrotorque motor, 4 bolts flange, straight shaft with G1/2 ports BMER-335

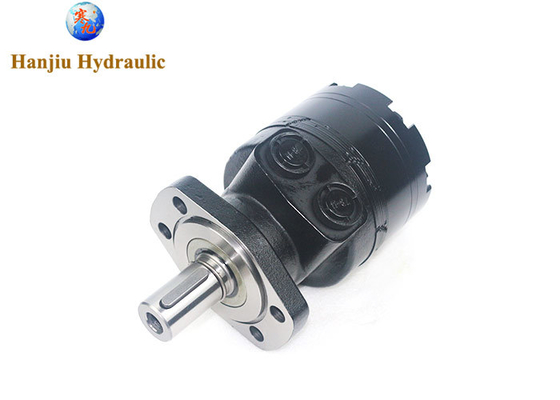

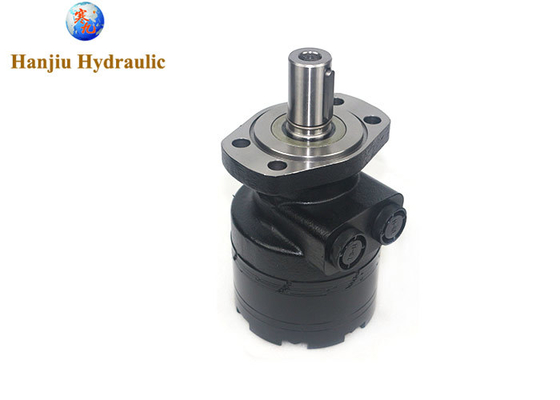

Large Image : TG0335MS020 hydrotorque motor, 4 bolts flange, straight shaft with G1/2 ports BMER-335

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE, ISO9001
Model Number:	BMER-2-350-MS-G2

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	170 usd/pc
Packaging Details:	box, pallet
Delivery Time:	35 - 45 work days
Payment Terms:	T/T,Western Union
Supply Ability:	10000 pieces per year

Contact Now

Detailed Product Description

Product:	Low Speed High Torque Hydraulic Motor	Model No.:	BMER-2-350-MS-G2
Size:	350ml/r	Flange:	Magneto Mount 4-Hole Flange
Shaft:	31.75 Mm Key Shaft	Rotation:	CCW
Port:	7/8-14UNF	Material:	Cast Iron
Highlight:	hydraulic motor with G1/2 ports , low speed high torque hydraulic motor , 4 bolts flange hydraulic motor

TG0335MS020 Hydrotorque Motor

4-Bolt Flange, Straight Shaft with G1/2 Ports BMER-335

Attribute	Value
Product	Low Speed High Torque Hydraulic Motor
Model No.	BMER-2-350-MS-G2
Size	350ml/r
Flange	Magneto Mount 4-Hole flange
Shaft	31.75 mm key shaft
Rotation	CCW
Port	7/8-14UNF
Material	Cast iron

Quick Specifications

Model No.	TG0335MS020=BMER-2-350-MS-G2
Displacement	350 ml/r
Flange	Magneto mount 4-hole
Pilot	82.55*2.8
Ports	BMER-2-350-MS-G2
Output Shaft	31.75 mm straight shaft
Rotation	Right
Paint	Black

Technical Specifications

Type	BMER 125	BMER 160	BMER 200	BMER 230	BMER 250	BMER 300	BMER 350	BMER 375	BMER 475	BMER 540	BMER 750
Geometric displacement (cm3/rev.)	118	156	196	228	257	296	345	371	462	540	745
Max. speed (rpm) cont.	360	375	330	290	290	250	220	200	160	140	100
Max. speed (rpm) int.	490	470	425	365	350	315	270	240	195	170	120
Max. torque (N•m) cont.	325	450	530	625	700	810	905	990	1085	980	1050
Max. torque (N•m) int.	380	525	600	710	790	930	1035	1140	1180	1240	1180
Max. torque (N•m) peak	450	590	750	870	980	1120	1285	1360	1260	1380	1370
Max. output (kW) cont.	12.0	15.0	15.5	16.0	17.5	18.0	17.5	16.5	14.5	11.5	8.0
Max. output (kW) int.	14.0	17.5	18.0	19.0	20.0	21.0	20.0	19.0	16.5	15.0	10.0
Max. pressure drop (MPa) cont.	20.5	20.5	20.5	20.5	20.5	20.5	20.5	20.5	17.5	14	10.5
Max. pressure drop (MPa) int.	24	24	24	24	24	24	24	24	19	17.5	12
Max. pressure drop (MPa) peak	27.6	27.6	27.6	27.6	27.6	27.6	27.6	27.6	20.5	20.5	14
Max. flow (L/min) cont.	45	60	70	70	75	80	80	75	75	75	75
Max. flow (L/min) int.	60	75	85	85	90	95	95	90	90	90	90

Product Advantages

The orbital motor offers numerous benefits for industrial applications:

Compact Design: Ingenious engineering results in a small, lightweight motor that fits strict space requirements
High Torque Output: Delivers powerful performance even at low speeds for efficient equipment operation
Precision Speed Control: Features excellent speed regulation with stepless adjustment capabilities
Smooth Operation: Minimal noise and vibration create stable working conditions and extend equipment life

Manufacturing Excellence

Hanjiu brings years of specialized experience in orbital motor production:

Dedicated R&D team focused on continuous innovation and performance optimization
Rigorous quality control from material selection through final testing
Precision manufacturing processes that exceed industry standards
Comprehensive product testing ensures reliable performance

Applications

Our orbital motors serve diverse industrial sectors:

Construction Machinery: Excavator slewing mechanisms, loader working devices
Agricultural Equipment: Seeders, harvesters, and other mechanized farming implements
Material Handling: Conveyor systems, stacker cranes, and logistics equipment
Industrial Automation: Various applications requiring precise hydraulic power

For high-performance orbital motors, choose Hanjiu's professional solutions. Our technical expertise, quality products, and comprehensive support provide reliable power for your equipment needs.
