BMER-350 magneto 4hole flange 1inch key shaft high torque motor for auger drilling TG0335MS030

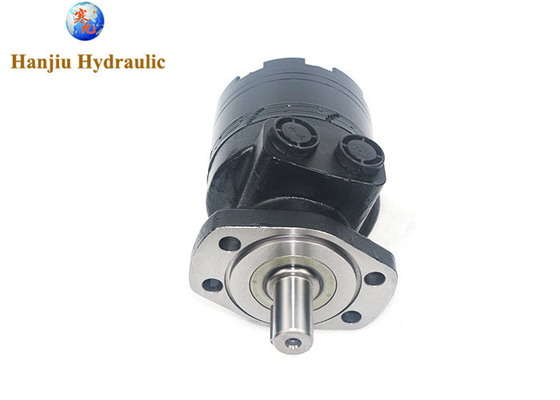

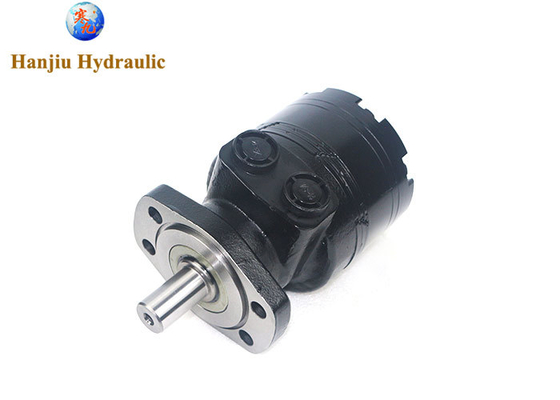

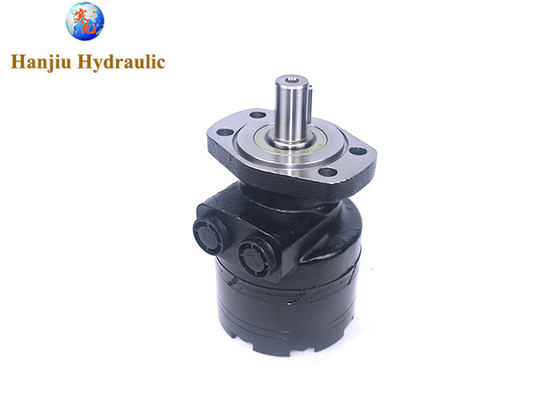

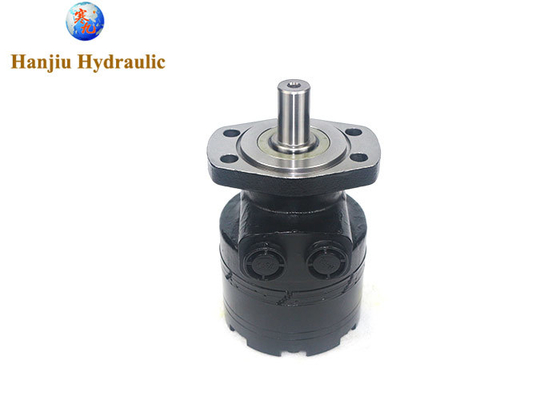

Large Image : BMER-350 magneto 4hole flange 1inch key shaft high torque motor for auger drilling TG0335MS030

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE, ISO9001
Model Number:	BMER-2-350-MS-RW

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	170 usd/pc
Packaging Details:	box, pallet
Delivery Time:	35 - 45 work days
Payment Terms:	T/T,Western Union
Supply Ability:	10000 pieces per year

Contact Now

Detailed Product Description

Product:	Low Speed High Torque Hydraulic Motor	Model No.:	BMER-2-350-MS-RW
Size:	350ml/r	Flange:	Magneto Mount 4-Hole Flange
Shaft:	25.4 Mm Key Shaft	Rotation:	CCW
Port:	7/8-14UNF	Material:	Cast Iron
Highlight:	1 inch key shaft hydraulic motor , high torque motor for auger drilling , 4 hole flange hydraulic motor

BMER-350 Magneto 4-Hole Flange 1-Inch Key Shaft High Torque Motor for Auger Drilling

Product Attributes

Attribute	Value
Product	Low Speed High Torque Hydraulic Motor
Model No.	BMER-2-350-MS-RW
Size	350ml/r
Flange	Magneto Mount 4-Hole flange
Shaft	25.4 mm key shaft
Rotation	CCW
Port	7/8-14UNF
Material	Cast iron

Quick Specifications

Model No.	TG0335MS030=BMER-2-350-ms-RW
Compatibility	White motor RE530/531; Parker TG series motor
Displacement	350 ml/r
Flange	Magneto mount 4-hole
Pilot	82.55*2.8
Ports	BMER-2-350-MS-RW
Output Shaft	25.4 mm straight shaft
Rotation	Right
Paint	Black

Technical Specifications

Type	BMER 125	BMER 160	BMER 200	BMER 230	BMER 250	BMER 300	BMER 350	BMER 375	BMER 475	BMER 540	BMER 750
Geometric displacement (cm3/rev.)	118	156	196	228	257	296	345	371	462	540	745
Max. speed (rpm) cont.	360	375	330	290	290	250	220	200	160	140	100
Max. speed (rpm) int.	490	470	425	365	350	315	270	240	195	170	120
Max. torque (N•m) cont.	325	450	530	625	700	810	905	990	1085	980	1050
Max. torque (N•m) int.	380	525	600	710	790	930	1035	1140	1180	1240	1180
Max. torque (N•m) peak	450	590	750	870	980	1120	1285	1360	1260	1380	1370
Max. output (kW) cont.	12.0	15.0	15.5	16.0	17.5	18.0	17.5	16.5	14.5	11.5	8.0
Max. output (kW) int.	14.0	17.5	18.0	19.0	20.0	21.0	20.0	19.0	16.5	15.0	10.0
Max. pressure drop (MPa) cont.	20.5	20.5	20.5	20.5	20.5	20.5	20.5	20.5	17.5	14	10.5
Max. pressure drop (MPa) int.	24	24	24	24	24	24	24	24	19	17.5	12
Max. pressure drop (MPa) peak	27.6	27.6	27.6	27.6	27.6	27.6	27.6	27.6	20.5	20.5	14
Max. flow (L/min) cont.	45	60	70	70	75	80	80	75	75	75	75
Max. flow (L/min) int.	60	75	85	85	90	95	95	90	90	90	90

Performance Features

The high performance of the Hanjiu orbital motor is based on three core design principles:

Differential gearing with eccentricity: Creates planetary motion and variable-volume chambers for efficient power transfer
Precise flow timing: Ensures optimal oil flow in and out of the motor in perfect phase
Compact space integration: All components work together precisely to achieve high torque density with low noise operation

The outstanding performance of our orbital motors results from deep expertise in stator/rotor tooth shape design, eccentricity optimization, motion conversion mechanisms, and flow distribution synchronization. As a leading supplier of orbital motors, Hanjiu combines specialized production experience with continuous process innovation to ensure precise internal component fit and long-term durability, delivering efficient and reliable hydraulic drive solutions worldwide.
