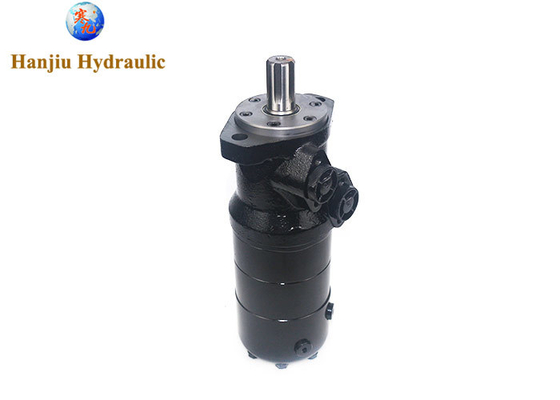

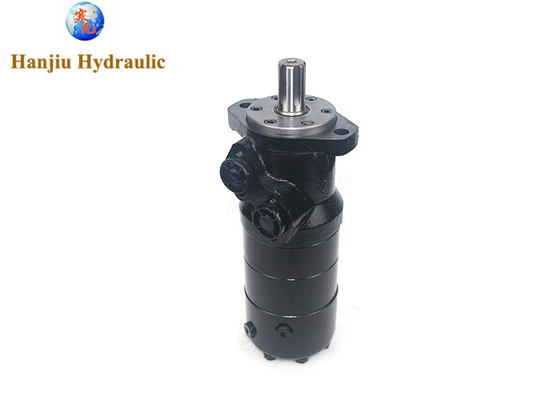

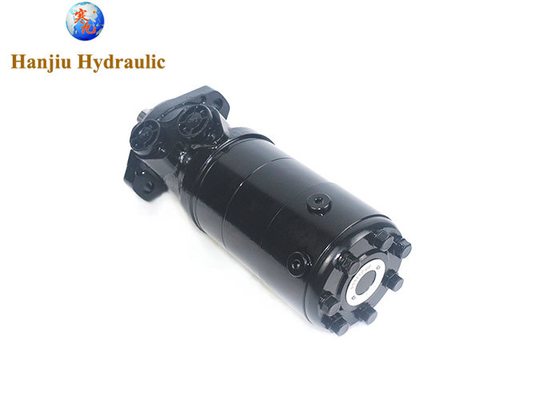

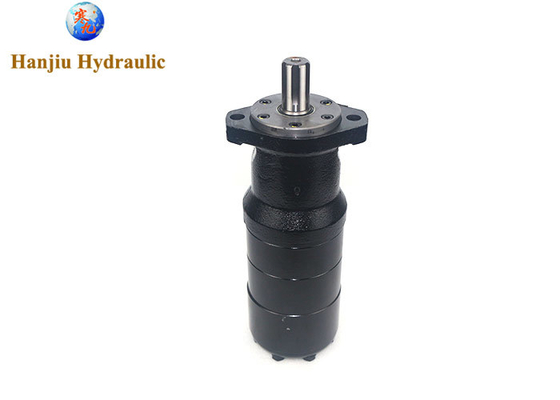

151-6465 OMR200F hydraulic orbital motor with brake, side port with 2-hole oval mounting flange

Large Image : 151-6465 OMR200F hydraulic orbital motor with brake, side port with 2-hole oval mounting flange

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE
Model Number:	BMR-200

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	Contact seller for latest offer
Packaging Details:	Carton, Box, Pallets
Delivery Time:	35 work days
Payment Terms:	T/T,Western Union,Paypal
Supply Ability:	200000 pieces per year

Contact Now

Detailed Product Description

Product:	Hydraulic Motor,orbit Motor	Model No.:	BMR315
Manufacturer:	Hanjiu	Origion:	China
Material:	Cast Iron	Warranty:	1 Year
Highlight:	OMR200F hydraulic orbital motor with brake , Gerotor hydraulic motor with side port , 2-hole oval flange hydraulic motor

151-6465 OMR200F Hydraulic Orbital Motor with Brake

Side port with 2-hole oval mounting flange

Product Specifications

Attribute	Value
Product	Hydraulic motor, orbit motor
Model No.	BMR315
Manufacturer	Hanjiu
Origin	China
Material	Cast iron
Warranty	1 year

Quick Review

Model number: BMR
Displacement: 200 ml/r
Shaft: SAE 6B spline shaft
Rotation: CW
Ports: G1/2
Drain ports: G1/4

Available Models

OMR80F	OMR100F	OMR125F	OMR160F	OMR200F	OMR250F	OMR315F	OMR375F
151-6461	151-6462	151-6463	151-6464	151-6465	151-6466	151-6467	151-6468

Technical Specifications

BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft

Type	BMR BMRS 40	BMR BMRS 50	BMR BMRS 80	BMR BMRS 100	BMR BMRS 125	BMR BMRS 160	BMR BMRS 200	BMR BMRS 250	BMR BMRS 315	BMR BMRS 400
Geometric displacement (cm³/rev.)	36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4

BMR with 31.75 and 32 shaft

Type	BMR BMRS 36	BMR BMRS 50	BMR BMRS 80	BMR BMRS 100	BMR BMRS 125	BMR BMRS 160	BMR BMRS 200	BMR BMRS 250	BMR BMRS 315	BMR BMRS 375
Geometric displacement (cm³/rev.)	36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4

* Continuous pressure: Max value of operating motor continuously.
* Intermittent pressure: Max value of operating motor in 6 seconds per minute.
* Peak pressure: Max value of operating motor in 0.6 second per minute.
