6E6406 6E-6406 Steering Power Pump Valve For CAT 950F II 980F II

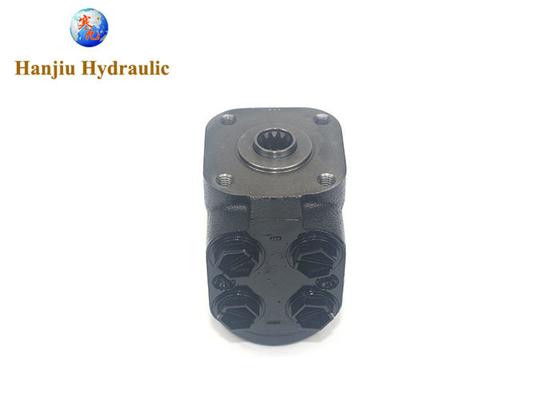

Large Image : 6E6406 6E-6406 Steering Power Pump Valve For CAT 950F II 980F II

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU
Certification:	CE
Model Number:	101-125

Payment & Shipping Terms:

Minimum Order Quantity:	50 Sets
Price:	Negotiable
Packaging Details:	Carton Packing and finally with a Tray, or Wooden Box
Delivery Time:	10-15 work days
Payment Terms:	L/C,T/T
Supply Ability:	1000000 Sets Per Year

Contact Now

Detailed Product Description

Product Name:	Hydrostatic Unit,steering Valve	Oil Port:	G1/2
Quality:	Oem Quality	Material:	Cast Iron
Displacement:	125cc	Applications:	Tractors ,loaders, Excavators
Highlight:	CAT 950F II steering power pump , CAT 980F II hydraulic valve , steering pump valve with warranty

6E6406 6E-6406 Steering Power Pump Valve For Caterpillar CAT 950F II 980F II

Hanjiu hydraulic supply 101 series hydraulic steering units,

used on wheel loaders, backhoe loaders, pushback tractors, forklifts....

same quality, high performance

specification:

Parameters	Series 101----*
Function code	1,2,4							1,4
Displacement (mL/r)	50	63	80	100	125	160	200	250	280	315	400
Rated Flow (L/min)	5	6	8	10	12.5	16	20	25	28	32	40
Max.input pressure(Mpa)	17.5
Relief Valve Pressure Settings ( MPa)	06,07,08,10,12,14,15,16,17.5
Shock Valve Pressure Settings ( MPa)	12,13,14,16,18,20,21,22,23.5
Max.cont.back pressure	2.5
Weight(kg)	5.75	5.81	5.89	5.96	6.1	6.3	6.5	6.73	6.91	7.1	7.5
Dimension L (mm)	130	132	134	137	140	145	150	156	161	166	176

Other types we offer

1198749

2477868

6E6406

1198748

1198767

3496093

1477343

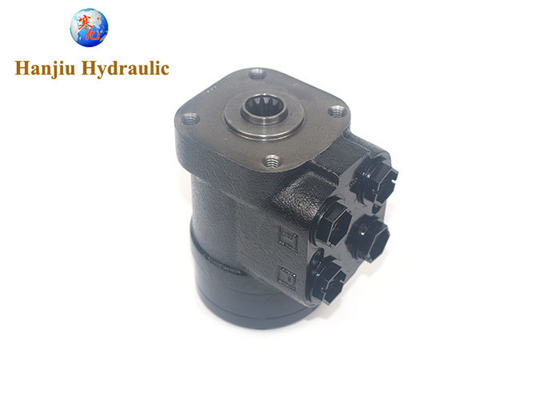

6E6406 6E-6406 Steering Power Pump Valve For CAT 950F II 980F II 0

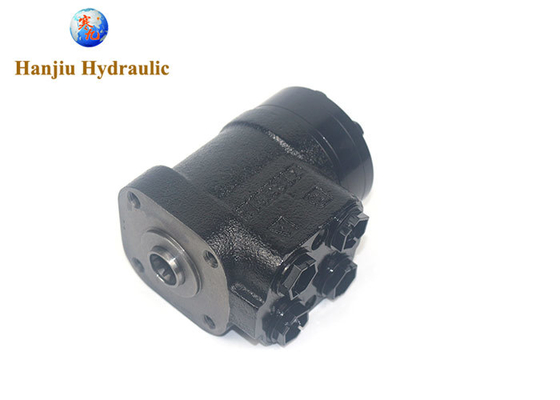

6E6406 6E-6406 Steering Power Pump Valve For CAT 950F II 980F II 1

6E6406 6E-6406 Steering Power Pump Valve For CAT 950F II 980F II 2

Hanjiu technology produce the a series hydraulic steering units/hydraulic orbitrols,

with the same specification as OSPM, OSPB, OSPC, HKU, HKUS,XCEL-45

widely used on tractors, backhoe loaders, wheelloaders, excavators...

109 series

101 series

101s series

060 series

6E6406 6E-6406 Steering Power Pump Valve For CAT 950F II 980F II 3
