BMRS Hydraulic Motor SAE B Flange, compact, low speed and high torque, 80cc, 25mm shaft

BMRS Hydraulic Motor SAE B Flange, compact, low speed and high torque, 80cc, 25mm shaft
BMRS Hydraulic Motor SAE B Flange, compact, low speed and high torque, 80cc, 25mm shaft BMRS Hydraulic Motor SAE B Flange, compact, low speed and high torque, 80cc, 25mm shaft BMRS Hydraulic Motor SAE B Flange, compact, low speed and high torque, 80cc, 25mm shaft BMRS Hydraulic Motor SAE B Flange, compact, low speed and high torque, 80cc, 25mm shaft BMRS Hydraulic Motor SAE B Flange, compact, low speed and high torque, 80cc, 25mm shaft BMRS Hydraulic Motor SAE B Flange, compact, low speed and high torque, 80cc, 25mm shaft

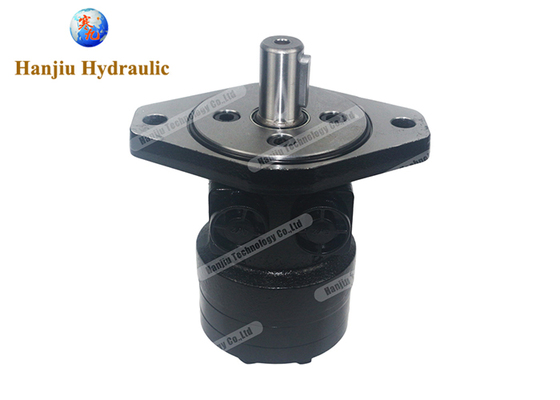

Large Image :  BMRS Hydraulic Motor SAE B Flange, compact, low speed and high torque, 80cc, 25mm shaft

Product Details:
Place of Origin: China
Brand Name: HANJIU
Certification: CE
Model Number: BMRS-80-H7-A-G
Payment & Shipping Terms:
Minimum Order Quantity: 100 Pieces
Price: Contact seller for latest offer
Packaging Details: Carton, Box, Pallets
Delivery Time: 35 work days
Payment Terms: T/T,Western Union,Paypal
Supply Ability: 200000 pieces per year
Contact Now
Detailed Product Description
Product: Hydraulic Motor Model No.: BMRS-80-H7-A-G
Manufacturer: Hanjiu Origion: China
Highlight:

Gerotor hydraulic motor SAE B flange

,

Compact hydraulic motor 80cc

,

Low speed high torque hydraulic motor

BMR OMR MR BMR-80 Hydraulic Motor, 80ml/r, 2 bolt SAE B mounting, 25mm Straight shaft
Product Specifications
Attribute Value
Product Hydraulic motor
Model No. BMRS-80-H7-A-G
Manufacturer Hanjiu
Origin China
Quick Review
  • Shaft: 25mm straight Key shaft
  • Flange: SAE "B" 2-Bolt Mounting
  • Ports: G1/2
  • Drain: G1/4
  • Corrosion-resistant Black Paint
Technical Specifications
Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:
Type BMR BMRS 40 BMR BMRS 50 BMR BMRS 80 BMR BMRS 100 BMR BMRS 125 BMR BMRS 160 BMR BMRS 200 BMR BMRS 250 BMR BMRS 315 BMR BMRS 400
Geometric displacement (cm³/rev.) 36 51.7 81.5 102 127.2 157.2 194.5 253.3 317.5 381.4
Technical data for BMR with 31.75 and 32 shaft:
Type BMR BMRS 36 BMR BMRS 50 BMR BMRS 80 BMR BMRS 100 BMR BMRS 125 BMR BMRS 160 BMR BMRS 200 BMR BMRS 250 BMR BMRS 315 BMR BMRS 375
Geometric displacement (cm³/rev.) 36 51.7 81.5 102 127.2 157.2 194.5 253.3 317.5 381.4
* Continuous pressure: Max.value of operating motor continuously.
* Intermittent pressure: Max.value of operating motor in 6 seconds per minute.
* Peak pressure: Max.value of operating motor in 0.6 second per minute.

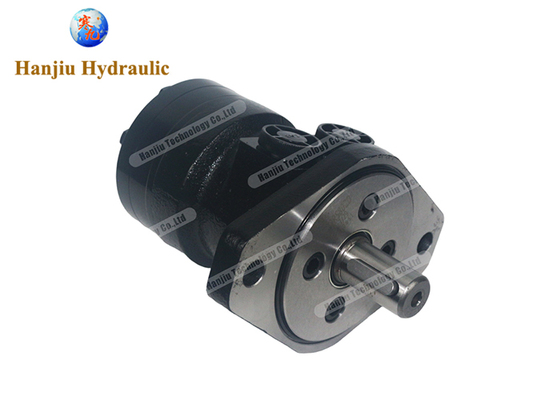

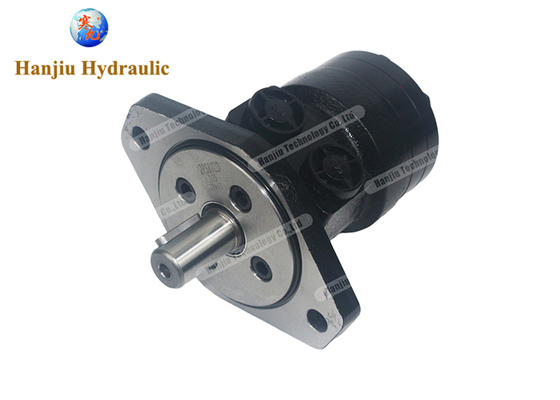

BMRS Hydraulic Motor SAE B Flange, compact, low speed and high torque, 80cc, 25mm shaft 0
BMRS Hydraulic Motor SAE B Flange, compact, low speed and high torque, 80cc, 25mm shaft 1
BMRS Hydraulic Motor SAE B Flange, compact, low speed and high torque, 80cc, 25mm shaft 2
Key Features
  • Displacement: 4.6 in³/rev (76 cm³/rev)
  • Max Speed: 750 rpm (cont) / 940 rpm (int)
  • Max Torque: 195 N.M (cont) / 220 N.M (int)
  • Max Differential: 17.5MPA (cont) / 20MPA (int)
  • Max Flow: 60l/min (cont) / 75l/min (int)

Replacement for:

  • Char-Lynn 103- SERIES
If you are a bulk importer, please contact us for cooperation terms and preferential quotes.
More Products in BMR Series
BMRS Hydraulic Motor SAE B Flange, compact, low speed and high torque, 80cc, 25mm shaft 3
About HANJIU Technology
Precision manufacturing, providing solutions for hydraulic systems. Grow together with customers, always provide innovation in products and services, always maintain our quality standards, and let our professional team meet your needs. Brand new wholeheartedly provide you with quality service. Our goal is to ensure that our customers receive fast, efficient and reliable service. Be a benchmark enterprise in the industry and lead the industry development.
Hanjiu Technology Company production of LSHT hydraulic motors, a wide variety of types, their production of motors for the main markets of hydraulics including construction, agriculture, traditional industry, metallurgy, mining, shipbuilding and horticulture and other fields.
Specializations
  • Eaton Char-lynn replacement/alternative/compatible motors
  • Sauer Danfoss replacement/alternative/compatible motors
  • Parker replacement/alternative/compatible motors
  • Brevini replacement/alternative/compatible Motors
  • M+S replacement/alternative/compatible motor
BMRS Hydraulic Motor SAE B Flange, compact, low speed and high torque, 80cc, 25mm shaft 4
