BMR Hydraulic Motor with 36ml/r Displacement 2-hole Wheel Flange and Straight Shaft for Danfoss OMR Replacement

BMR Hydraulic Motor with 36ml/r Displacement 2-hole Wheel Flange and Straight Shaft for Danfoss OMR Replacement
BMR Hydraulic Motor with 36ml/r Displacement 2-hole Wheel Flange and Straight Shaft for Danfoss OMR Replacement BMR Hydraulic Motor with 36ml/r Displacement 2-hole Wheel Flange and Straight Shaft for Danfoss OMR Replacement BMR Hydraulic Motor with 36ml/r Displacement 2-hole Wheel Flange and Straight Shaft for Danfoss OMR Replacement BMR Hydraulic Motor with 36ml/r Displacement 2-hole Wheel Flange and Straight Shaft for Danfoss OMR Replacement BMR Hydraulic Motor with 36ml/r Displacement 2-hole Wheel Flange and Straight Shaft for Danfoss OMR Replacement BMR Hydraulic Motor with 36ml/r Displacement 2-hole Wheel Flange and Straight Shaft for Danfoss OMR Replacement BMR Hydraulic Motor with 36ml/r Displacement 2-hole Wheel Flange and Straight Shaft for Danfoss OMR Replacement

Large Image :  BMR Hydraulic Motor with 36ml/r Displacement 2-hole Wheel Flange and Straight Shaft for Danfoss OMR Replacement

Product Details:
Place of Origin: China
Brand Name: HANJIU
Certification: CE
Model Number: BMR-36-2-C-S-B-SD
Payment & Shipping Terms:
Minimum Order Quantity: 100 Pieces
Price: 95 USD
Packaging Details: Box, Pallet
Delivery Time: 55 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 10000 pieces per year
Detailed Product Description
Item: Hydraulic Motor OEM #: BMR-36-2-C-S-B-SD
Manufacturer: Hanjiu Displacement: 36ml/r
Mounting Flange: 2-hole Wheel Flange Shaft Type: Straight
Highlight:

36ml/r Displacement Hydraulic Motor

,

2-hole Wheel Flange Orbit Hydraulic Motor

,

Straight Shaft BMR Hydraulic Motor

OMR BMR Speed Sensor Hydraulic Motor
Compatible replacement for Danfoss OMR, M+S MR, Eaton Charlynn S series, BMR-36-2-C-S-B-SD
Product Overview
This is a Danfoss-compatible motor with sensor, manufactured by Hanjiu.
Technical Specifications
BMR Medium-Speed Motor with 1M Cable
  • Displacement: 36cc
  • Flange: 2-hole, SAE-A, distance 106mm, Ø centring 82.50mm
  • Shaft: Ø25mm, cylindrical
  • Ports: 1/2" BSP (inlet and outlet) 1/4" BSP (drain)
  • PNP speed of rotation sensor (35 impulsion per rev)
Performance Data
Type BMR 36 BMR 50 BMR 80 BMR 100 BMR 125 BMR 160 BMR 200 BMR 250 BMR 315 BMR 375
Geometric displacement (cm³/rev.) 36 51.7 81.5 102 127.2 157.2 194.5 253.3 317.5 381.4
Max. speed (rpm) cont. 1085 960 750 600 475 378 310 240 190 155
Max. torque (N*m) cont. 72 100 195 240 300 360 360 390 390 365
Max. output (kW) cont. 8.5 9.5 12.5 13 12.5 12.5 10 7 6 5
* Continuous pressure: Max value of operating motor continuously.
* Intermittent pressure: Max value of operating motor in 6 seconds per minute.
* Peak pressure: Max value of operating motor in 0.6 second per minute.

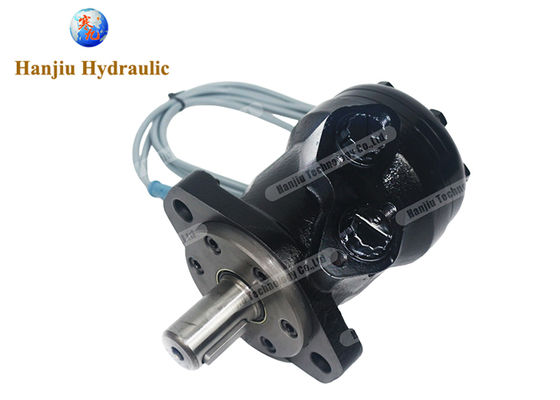

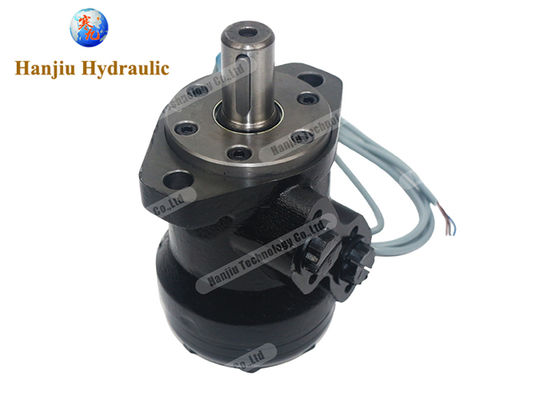

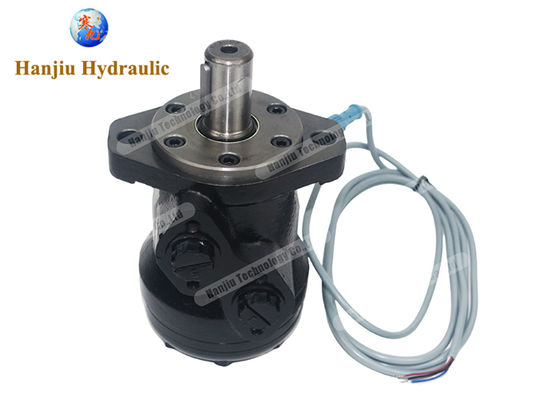

Product Images
BMR Hydraulic Motor with 36ml/r Displacement 2-hole Wheel Flange and Straight Shaft for Danfoss OMR Replacement 0 BMR Hydraulic Motor with 36ml/r Displacement 2-hole Wheel Flange and Straight Shaft for Danfoss OMR Replacement 1 BMR Hydraulic Motor with 36ml/r Displacement 2-hole Wheel Flange and Straight Shaft for Danfoss OMR Replacement 2

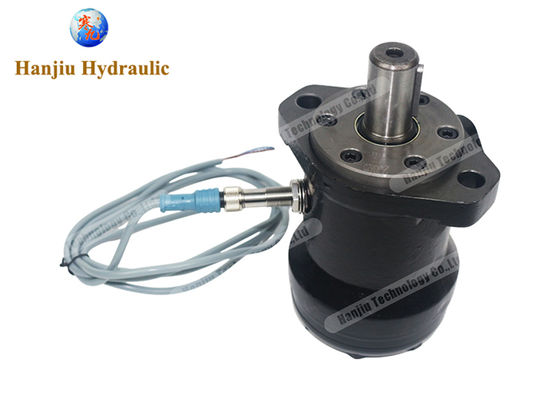

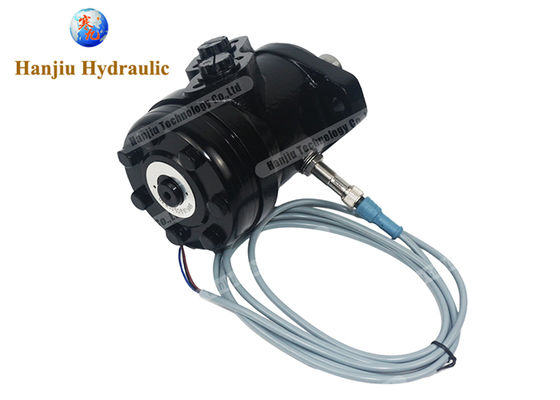

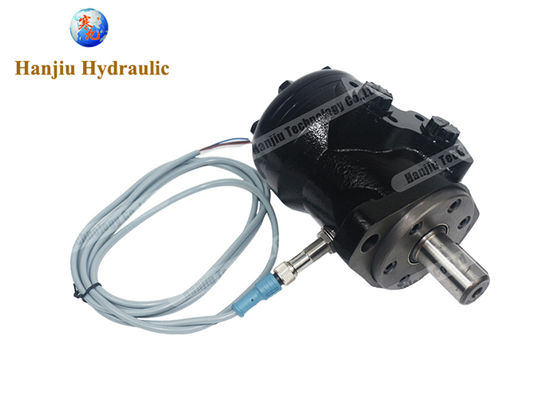

Additional BMR Series Motors Available
BMR Hydraulic Motor with 36ml/r Displacement 2-hole Wheel Flange and Straight Shaft for Danfoss OMR Replacement 3 BMR Hydraulic Motor with 36ml/r Displacement 2-hole Wheel Flange and Straight Shaft for Danfoss OMR Replacement 4 BMR Hydraulic Motor with 36ml/r Displacement 2-hole Wheel Flange and Straight Shaft for Danfoss OMR Replacement 5 BMR Hydraulic Motor with 36ml/r Displacement 2-hole Wheel Flange and Straight Shaft for Danfoss OMR Replacement 6
We offer a variety of mounting flange types, output shaft types, and displacements to meet all your installation and use requirements.
For BMM, BMP, BMR, BMH, BMS, BMSY, BMT, BMV, BMK2, BMK4, BMK6, BMK10 hydraulic motors, contact our sales team:
Phone: +86-311-68123061
WhatsApp: 008613831101542
