BMT200 Orbit Hydraulic Motor with 200cm³/r Displacement and 625/750 RPM for Slurry Macerator

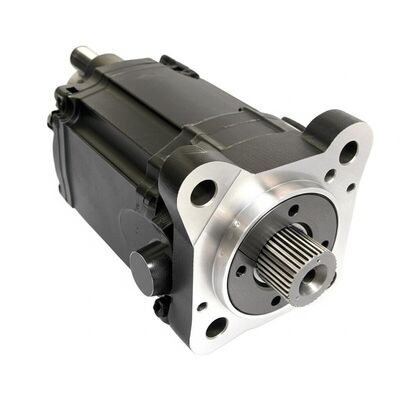

Large Image : BMT200 Orbit Hydraulic Motor with 200cm³/r Displacement and 625/750 RPM for Slurry Macerator

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	ISO9001:2015
Model Number:	BMV630

Payment & Shipping Terms:

Minimum Order Quantity:	20 Sets
Price:	Negotiable
Packaging Details:	Carton Packing, and finally with pallet or wooden box
Payment Terms:	L/C,T/T,Western Union,Paypal
Supply Ability:	100,000 Sets per year

Contact Now

Detailed Product Description

Categories:	Hydraulic Heavy Motor	Name:	BMT200
Max.output:	Cont.34.9kw/int.40kw	Max Torque:	Cont.590N.m/int.710N.m
Flange:	Square Flange	Shaft:	Key Shaft
Highlight:	BMT200 Orbit Hydraulic Motor , 200cm³/r Hydraulic Orbit Motor , 625/750 RPM BMT200 Motor

HYDRAULIC MOTOR BMT200 OMT200 WHITE ORBIT MOTORS FOR SLURRY MACERATOR

High-performance hydraulic orbit motor designed for slurry macerator applications, offering exceptional torque and power output.

Product Specifications

Attribute	Value
Categories	Hydraulic Orbit Motor
Name	BMT200
Max. Output	cont.34.9kw/int.40kw
Max. Torque	cont.590N.m/int.710N.m
Flange	Square Flange
Shaft	Key Shaft

Technical Parameters

Geometrical displacement: 200cm³/r
Max. Speed: 625/750 min⁻¹ [rpm]
Max. Torque: 838 Nm
Max. Output: 40 kW
Max. Oil flow: 150 l/min
Max. Inlet pressure: 300 bar

BMT Series Specifications Comparison

Type	BMT 160	BMT 200	BMT 230	BMT 250	BMT 315	BMT 400	BMT 500	BMT 630	BMT 800
Displacement (cm³/rev.)	161.1	201.4	232.5	251.8	326.3	410.9	523.6	629.1	801.8
Max. speed (rpm)	cont. 625 int. 780	cont. 625 int. 750	cont. 536 int. 643	cont. 500 int. 600	cont. 380 int. 460	cont. 305 int. 365	cont. 240 int. 285	cont. 196 int. 233	cont. 154 int. 185
Max. torque (N m)	cont. 470 int. 560 peak 669	cont. 590 int. 710 peak 838	cont. 670 int. 821 peak 958	cont. 730 int. 880 peak 1036	cont. 950 int. 1140 peak 1346.3	cont. 1080 int. 1260 peak 1450.3	cont. 1220 int. 1370 peak 1643.8	cont. 1318 int. 1498 peak 1618.8	cont. 1464 int. 1520 peak 1665
Max. output (kW)	cont. 27.7 int. 32	cont. 34.9 int. 40	cont. 34.7 int. 40	cont. 34.5 int. 40	cont. 34.9 int. 40	cont. 31.2 int. 35	cont. 28.8 int. 35	cont. 25.3 int. 27.5	cont. 22.2 int. 26.8
Max. pressure drop (MPa)	cont. 20 int. 24 peak 28	cont. 20 int. 24 peak 28	cont. 20 int. 24 peak 28	cont. 20 int. 24 peak 28	cont. 20 int. 24 peak 28	cont. 18 int. 21 peak 24	cont. 16 int. 18 peak 21	cont. 14 int. 16 peak 19	cont. 12.5 int. 13 peak 16
Max. flow (L/min)	rated 80 cont. 100 int. 125	rated 100 cont. 125 int. 150	rated 100 cont. 125 int. 150	rated 100 cont. 125 int. 150	rated 100 cont. 125 int. 150	rated 100 cont. 125 int. 150	rated 100 cont. 125 int. 150	rated 100 cont. 125 int. 150	rated 100 cont. 125 int. 150
Max. inlet pressure (Mpa)	cont. 21 int. 25 peak 30	cont. 21 int. 25 peak 30	cont. 21 int. 25 peak 30	cont. 21 int. 25 peak 30	cont. 21 int. 25 peak 30	cont. 21 int. 25 peak 30	cont. 21 int. 25 peak 30	cont. 21 int. 25 peak 30	cont. 21 int. 25 peak 30
Weight (kg)	19.5	20	20.4	20.5	21	22	23	24	25

As an experienced small-to-medium-sized supplier, Hanjiu Company offers flexible pricing solutions tailored to your equipment requirements and budget. We provide customized pricing based on order volume, cooperation models, and specific needs, ensuring high cost-effectiveness without compromising quality. Our optimized production processes and efficient management allow us to offer competitive pricing for both small-batch custom orders and long-term procurement partnerships.
