Hydraulic Motor CPMT160SL,151B0243, OMT 160 PTO DRIVE MOTOR

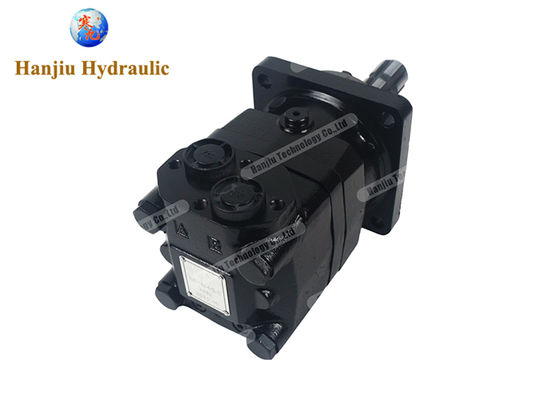

Large Image : Hydraulic Motor CPMT160SL,151B0243, OMT 160 PTO DRIVE MOTOR

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	ISO9001:2015
Model Number:	BMV630

Payment & Shipping Terms:

Minimum Order Quantity:	20 Sets
Price:	Negotiable
Packaging Details:	Carton Packing, and finally with pallet or wooden box
Payment Terms:	L/C,T/T,Western Union,Paypal
Supply Ability:	100,000 Sets per year

Contact Now

Detailed Product Description

Categories:	Hydraulic Heavy Motor	Name:	BMT160
Max.output:	Cont.34.9kw/int.40kw	Max Torque:	Cont.590N.m/int.710N.m
Flange:	Square Flange	Shaft:	SAE 6B Shaft
Highlight:	Hydraulic motor CPMT160SL with warranty , Orbit hydraulic motor PTO drive , Hydraulic drive motor 151B0243

Hydraulic Motor CPMT160SL,151B0243, OMT 160 PTO-DRIVE MOTOR

Our BMT-160-4-SL-D motors are interchangeable to the following manufacturers:

Danfoss, 151B0243, OMT 160 M. PTO-WELLE
Danfoss, 151B3018, OMT 160
Hydromot CPMT160SL

Product Specifications

Categories	Hydraulic Orbit Motor
Name	BMT160
Max. Output	cont.27.7kw/int.32kw
Max. Torque	cont.470N.m/int.560N.m
Flange	Square Flange
Shaft	SAE 6B Shaft

BMT Series Specifications Comparison

Type	BMT 160	BMT 200	BMT 230	BMT 250	BMT 315	BMT 400	BMT 500	BMT 630	BMT 800
Displacement (cm³/rev.)	161.1	201.4	232.5	251.8	326.3	410.9	523.6	629.1	801.8
Max. speed (rpm)	cont. 625 int. 780	cont. 625 int. 750	cont. 536 int. 643	cont. 500 int. 600	cont. 380 int. 460	cont. 305 int. 365	cont. 240 int. 285	cont. 196 int. 233	cont. 154 int. 185
Max. torque (N m)	cont. 470 int. 560 peak 669	cont. 590 int. 710 peak 838	cont. 670 int. 821 peak 958	cont. 730 int. 880 peak 1036	cont. 950 int. 1140 peak 1346.3	cont. 1080 int. 1260 peak 1450.3	cont. 1220 int. 1370 peak 1643.8	cont. 1318 int. 1498 peak 1618.8	cont. 1464 int. 1520 peak 1665
Max. output (kW)	cont. 27.7 int. 32	cont. 34.9 int. 40	cont. 34.7 int. 40	cont. 34.5 int. 40	cont. 34.9 int. 40	cont. 31.2 int. 35	cont. 28.8 int. 35	cont. 25.3 int. 27.5	cont. 22.2 int. 26.8
Max. pressure drop (MPa)	cont. 20 int. 24 peak 28	cont. 20 int. 24 peak 28	cont. 20 int. 24 peak 28	cont. 20 int. 24 peak 28	cont. 20 int. 24 peak 28	cont. 18 int. 21 peak 24	cont. 16 int. 18 peak 21	cont. 14 int. 16 peak 19	cont. 12.5 int. 13 peak 16
Max. flow (L/min)	rated 80 cont. 100 int. 125	rated 100 cont. 125 int. 150	rated 100 cont. 125 int. 150	rated 100 cont. 125 int. 150	rated 100 cont. 125 int. 150	rated 100 cont. 125 int. 150	rated 100 cont. 125 int. 150	rated 100 cont. 125 int. 150	rated 100 cont. 125 int. 150
Max. inlet pressure (Mpa)	cont. 21 int. 25 peak 30	cont. 21 int. 25 peak 30	cont. 21 int. 25 peak 30	cont. 21 int. 25 peak 30	cont. 21 int. 25 peak 30	cont. 21 int. 25 peak 30	cont. 21 int. 25 peak 30	cont. 21 int. 25 peak 30	cont. 21 int. 25 peak 30
Weight (kg)	19.5	20	20.4	20.5	21	22	23	24	25

orbital motor is widely used in several core systems of harvesters:

Walking drive system: In the hydrostatic transmission system, it utilizes its low-speed and high-torque characteristics to drive the walking wheels or tracks of the harvester either directly or through a simple deceleration mechanism. By adjusting the hydraulic oil flow, the travel speed can be infinitely adjusted to ensure the flexibility and stability of the machine in complex terrain such as slopes and mud.

Cutting platform control system: Provide strong and smooth driving force for the rapid elevation of the cutting platform, and support the automatic profiling function of the cutting platform according to the terrain (control the elevation cylinder).

Material Conveyor System: Drive the conveyor chain, agitator, elevator and other mechanisms between the cutting platform to the threshing drum and the cleaning device to the grain bin to provide continuous and stable speed and torque to ensure the smooth and unobstructed flow of crop materials.

Attachment drives: for bin unloading agitators, straw chopping devices or baling devices, etc. The modular design facilitates integration and installation.

Hydraulic Motor CPMT160SL,151B0243, OMT 160 PTO DRIVE MOTOR 3
