BMR-36-2-C-S-B Orbit Hydraulic Motor with 36cc Displacement 2-hole Flange and 35 Pulse Speed Sensor

Large Image : BMR-36-2-C-S-B Orbit Hydraulic Motor with 36cc Displacement 2-hole Flange and 35 Pulse Speed Sensor

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE
Model Number:	BMR-36-2-C-S-B

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	Contact the seller to get a quote
Packaging Details:	Box, Pallet
Delivery Time:	55 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	10000 pieces per year

Contact Now

Detailed Product Description

Item:	Orbital	OEM #:	BMR-36-2-C-S-B
Manufacturer:	Hanjiu	Displacement:	36 Ml/r
Mounting Flange:	2-hole	Shaft Type:	Key Shaft
Highlight:	36cc Displacement Orbit Hydraulic Motor , 2-hole Mounting Flange Hydraulic Speed Sensor Motor , 35 Pulse Speed Sensor BMR Hydraulic Motor

BMR-36-2-C-S-B Speed Sensor Motor 36cc with 1 Meter Cable, 35 Pulse

Hanjiu produces a variety of hydraulic parts to suit multiple brands and applications. We serve as an advantageous supplement to your current hydraulic supply, providing solutions for reliability, quality, timing, cost-effectiveness, and brand promotion.

Product Compatibility & Specifications

Compatible with OMR Danfoss medium-speed motor
Displacement: 36cc
Flange: 2-hole
Shaft: Ø25.4mm, cylindrical
Ports: 7/8-14 O-RING
PNP speed of rotation sensor (35 pulses per revolution)
Genuine Danfoss reference: OMR 36

Small Frame Low Speed, High Torque Motor
Manufacturer: Hanjiu

Technical Specifications

Type	BMR/BMRS 36	BMR/BMRS 50	BMR/BMRS 80	BMR/BMRS 100	BMR/BMRS 125	BMR/BMRS 160	BMR/BMRS 200	BMR/BMRS 250	BMR/BMRS 315	BMR/BMRS 375
Geometric displacement (cm³/rev.)	36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max. speed (rpm) cont.	1085	960	750	600	475	378	310	240	190	155
Max. speed (rpm) int.	1220	1150	940	750	600	475	385	300	240	190
Max. torque (N*m) cont.	72	100	195	240	300	360	360	390	390	365
Max. torque (N*m) int.	83	126	220	280	340	430	440	490	535	495
Max. torque (N*m) peak	105	165	270	320	370	460	560	640	650	680

Continuous pressure: Maximum value of operating motor continuously.
Intermittent pressure: Maximum value of operating motor in 6 seconds per minute.
Peak pressure: Maximum value of operating motor in 0.6 second per minute.

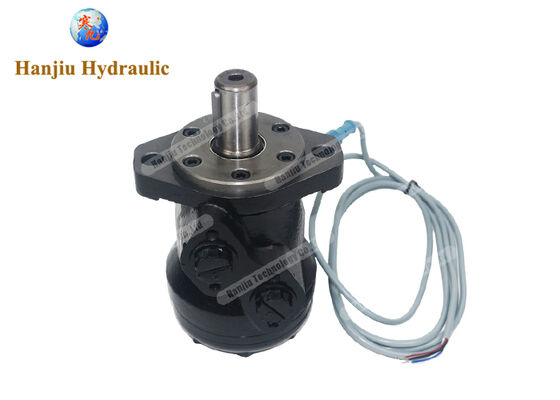

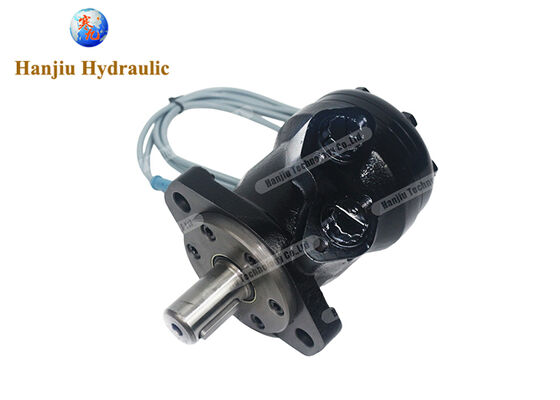

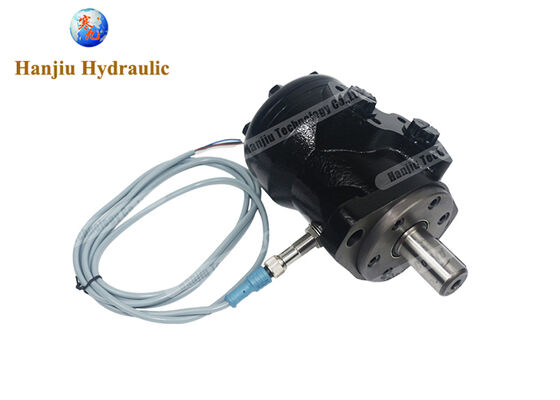

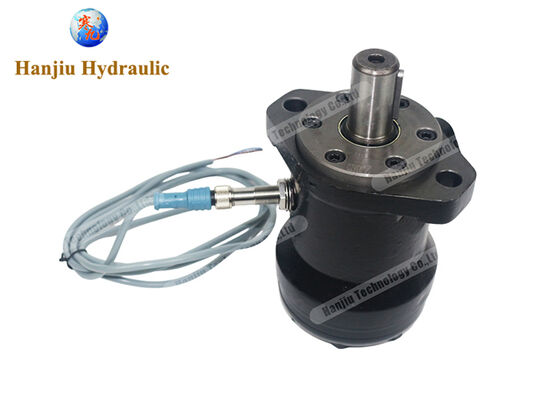

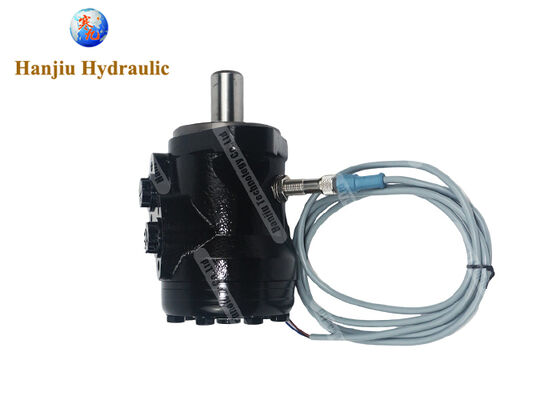

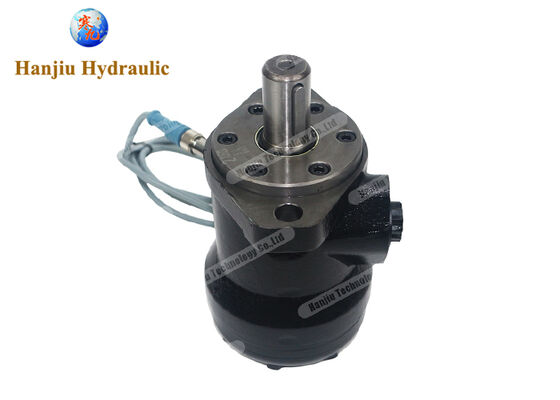

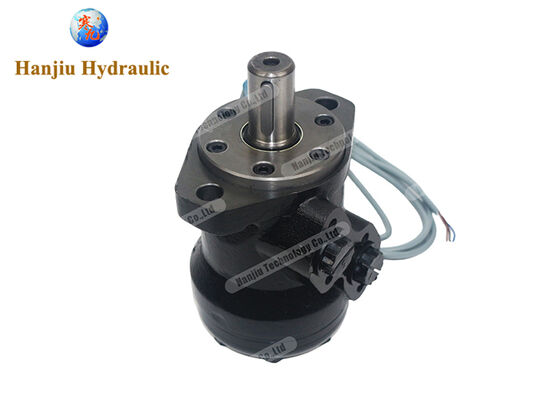

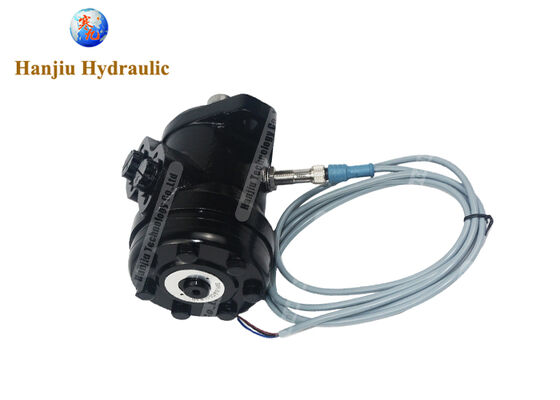

Product Images
