HYDRAULIC GEROLER MOTOR BMV-1000-4-C-S High Pressure, Smooth Operation motor

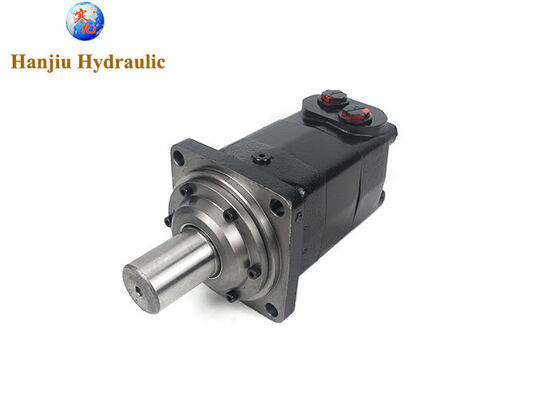

Large Image : HYDRAULIC GEROLER MOTOR BMV-1000-4-C-S High Pressure, Smooth Operation motor

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU CHINA
Certification:	CE
Model Number:	BMV-1000-4-C-S

Payment & Shipping Terms:

Minimum Order Quantity:	100 pcs
Price:	Contact the selle to get the best offer
Packaging Details:	Carton, Box, Pallets
Delivery Time:	0 - 35 work days
Payment Terms:	T/T,Western Union,Paypal
Supply Ability:	100000 sets per year

Contact Now

Detailed Product Description

Product:	Hydraulic Orbital Motor	Model No.:	BMV-1000-4-C-S-B
Displacement:	1000 Cc	Brand:	Hanjiu
Material:	Cast Iron	Warranty:	1 Year
Highlight:	Hydraulic Geroler motor BMV-1000-4-C-S , High pressure orbit hydraulic motor , Smooth operation hydraulic motor

HYDRAULIC GEROLER MOTOR BMV-1000-4-C-S High Pressure, Smooth Operation motor

This series is the BMV series hydraulic motor
Model: BMV-1000-4-C-S
Displacement: 1000ml/r
Flange: 4-Ø18 Square-flange Ø160, pilot Ø160X11
Shaft:Shaft Ø57.15, parallel key,12.7×12.7×57.15

Rotation :Standard

Color:Black

Main Specifications:

Type		BMV 315	BMV 400	BMV 500	BMV 630	BMV 800	BMV 1000
Geometric displacement (cm3 /rev.)		333	419	518	666	801	990
Max. speed (rpm)	cont.	510	500	400	320	250	200
Max. speed (rpm)	int.	630	600	480	380	300	240
Max. torque (N·m)	cont.	920	1180	1460	1660	1880	2015
	int.	1110	1410	1760	1940	2110	2280
	peak	1290	1640	2050	2210	2470	2400
Max. output (kW)	cont.	38	47	47	40	33	28.6
Max. output (kW)	int.	46	56	56	56	44	40
Max. pressure drop (MPa)	cont.	20	20	20	18	16	14
	int.	24	24	24	21	18	16
	peak	28	28	28	24	21	18
Max. flow (L/min)	cont.	160	200	200	200	200	200
Max. flow (L/min)	int.	200	240	240	240	240	240
Weight (kg)		31.8	32.6	33.5	34.9	36.5	38.6

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

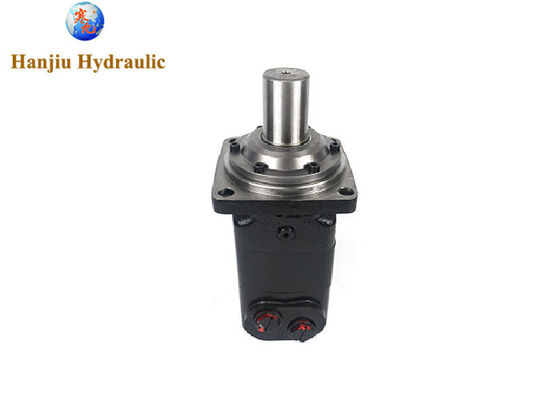

HYDRAULIC GEROLER MOTOR BMV-1000-4-C-S High Pressure, Smooth Operation motor 0

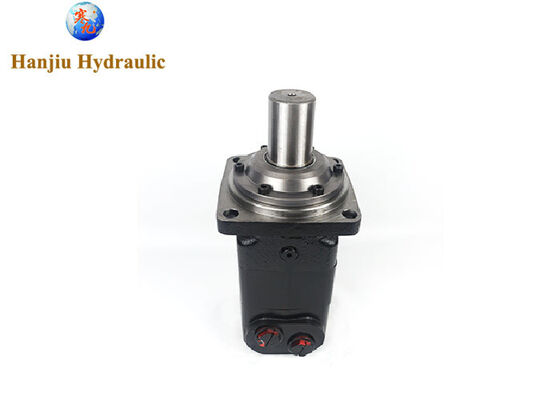

HYDRAULIC GEROLER MOTOR BMV-1000-4-C-S High Pressure, Smooth Operation motor 2

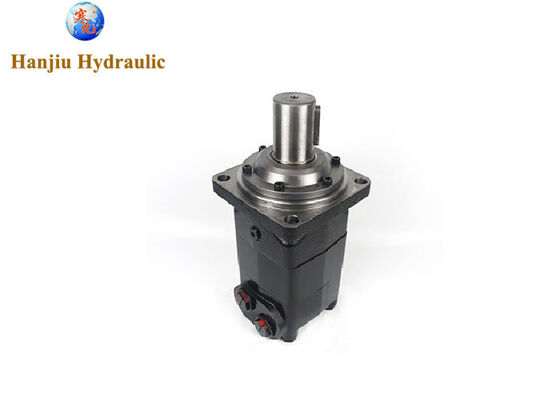

HYDRAULIC GEROLER MOTOR BMV-1000-4-C-S High Pressure, Smooth Operation motor 3

Type code

BMV-315-4-B-S1	BMV-400-4-B-S1	BMV-500-4-B-S1	BMV-630-4-B-S1	BMV-800-4-B-S1	BMV-1000-4-B-S1
BMV-315-4-C-S1	BMV-400-4-C-S1	BMV-500-4-C-S1	BMV-630-4-C-S1	BMV-800-4-C-S1	BMV-1000-4-T1-S1
BMV-315-4-T1-S1	BMV-400-4-T1-S1	BMV-500-4-T1-S1	BMV-630-4-T1-S1	BMV-800-4-T1-S1	BMV-1000-4-C-S1

Application:
HYDRAULIC GEROLER MOTOR BMV-1000-4-C-S High Pressure, Smooth Operation motor 4

HYDRAULIC GEROLER MOTOR BMV-1000-4-C-S High Pressure, Smooth Operation motor 5

Hanjiu, with deep expertise in ORBIT motors, provides OEM-compatible core components for the Motor Orbital BMV SERIES MOTOR—including seals and bearings—ensuring precise compatibility with motor performance. Additionally, Hanjiu's professional technical team offers repair guidance to help quickly diagnose faults and standardize maintenance procedures. This minimizes equipment downtime, safeguards the continuous and stable operation of the Motor Orbital BMV SERIES MOTOR, and ensures efficient equipment performance.
