Orbital motor TMT 500-151Z3024,displacement 500cc,17teeth splined shaft

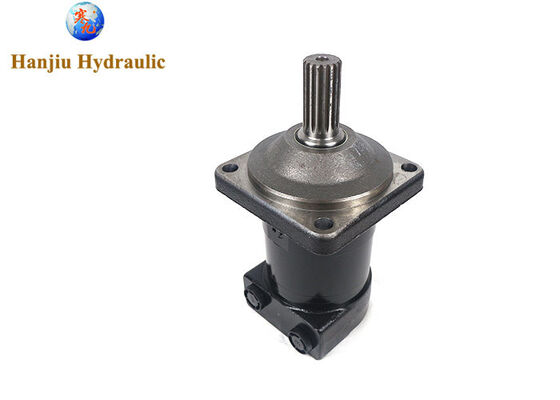

Large Image : Orbital motor TMT 500-151Z3024,displacement 500cc,17teeth splined shaft

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU CHINA
Certification:	CE
Model Number:	HMT-500-4-FD-D-B

Payment & Shipping Terms:

Minimum Order Quantity:	100 pcs
Price:	Contact the selle to get the best offer
Packaging Details:	Carton, Box, Pallets
Delivery Time:	0 - 35 work days
Payment Terms:	T/T,Western Union,Paypal
Supply Ability:	100000 sets per year

Contact Now

Detailed Product Description

Product:	Hydraulic Orbital Motor	Model No.:	HMT-500-4-FD-D-B
Displacement:	500 Cc	Brand:	Hanjiu
Material:	Cast Iron	Warranty:	1 Year
Highlight:	Orbital hydraulic motor 500cc displacement , TMT 500 hydraulic motor 17 teeth shaft , Orbit motor 151Z3024 splined shaft

Orbital motor TMT 500-151Z3024,displacement 500cc,17teeth splined shaft

This series is the HMT series hydraulic motor,matching TMT Series motors
Model: HMT-500-4-FD-D,replaced 151z3024
Displacement: 500ml/r
Flange: 4-Bolt flange-spigot diameter Ø160 mm - BC Ø200 mm

Shaft:Pitch 12/24, Teeth 17, Major diameter 1.50 inch, Pressure angle 30˚

Rotation :Standard

Color:Black

Port size:G3/4

Maximum speed:250-300RPM

Maximum torque:1770-2240N.m

Maximum output:35-42kw

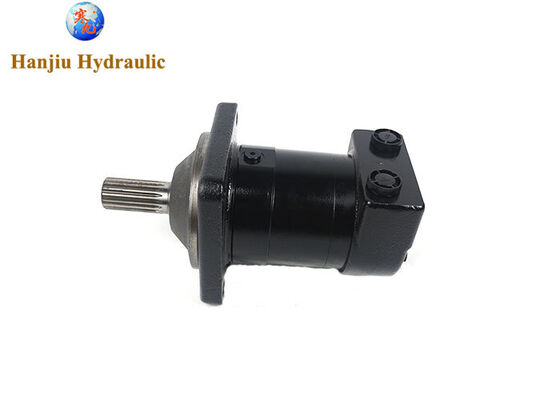

Orbital motor TMT 500-151Z3024,displacement 500cc,17teeth splined shaft 0

Orbital motor TMT 500-151Z3024,displacement 500cc,17teeth splined shaft 1

Type code

Code numbers
TMT 250	151Z3010	151Z3016	151Z3060	151Z3020	151Z3026	151Z3070	151Z3030	151Z3036	151Z3080
TMT 315	151Z3011	151Z3017	151Z3061	151Z3021	151Z3027	151Z3071	151Z3031	151Z3037	151Z3081
TMT 400	151Z3012	151Z3018	151Z3062	151Z3022	151Z3028	151Z3072	151Z3032	151Z3038	151Z3082
TMT 470	151Z3013	-	151Z3063	151Z3023	-	151Z3073	151Z3033	-	151Z3083
TMT 500	151Z3014	-	151Z3064	151Z3024	-	151Z3074	151Z3034	-	151Z3084
TMT 630	151Z3015	-	151Z3065	151Z3025	-	151Z3075	151Z3035	-	151Z3085

Application:

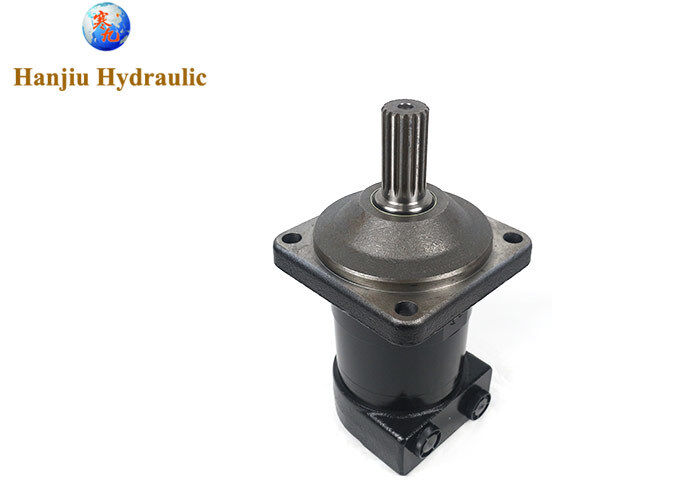

Orbital motor TMT 500-151Z3024,displacement 500cc,17teeth splined shaft 2

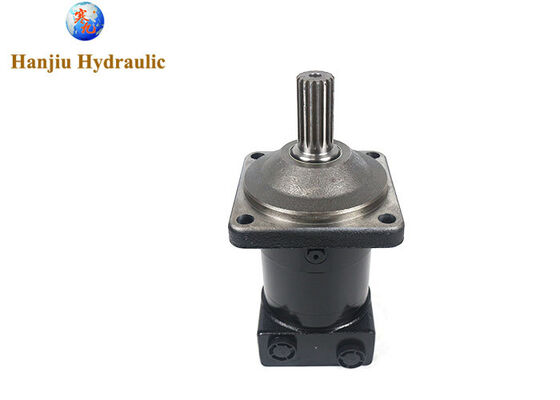

Orbital motor TMT 500-151Z3024,displacement 500cc,17teeth splined shaft 3
