BMK2 Series 125 ml/r Gerotor Hydraulic Motor with 2 Bolt Flange and Char-lynn 2000 Series Compatibility

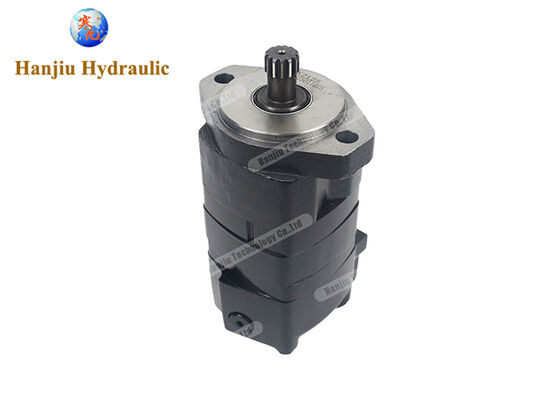

Large Image : BMK2 Series 125 ml/r Gerotor Hydraulic Motor with 2 Bolt Flange and Char-lynn 2000 Series Compatibility

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE, ISO9001
Model Number:	BMK2-125-E2-I-SU

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	89 usd/pc
Packaging Details:	box, pallet
Delivery Time:	0 - 35 work days
Payment Terms:	T/T,Western Union
Supply Ability:	200000 pieces per year

Contact Now

Detailed Product Description

Product:

Gerotor Hydraulic Motors

Model No.:

BMK2-125-E2-I-SU

Size:

125 Ml/r

Flange:

2 Bolt

Highlight:

125 ml/r Gerotor Hydraulic Motor

2 Bolt Flange Hydraulic Motor

Char-lynn 2000 Series Compatible BMK2 Series Motor

BMK2 Series Hydraulic Motors

BMK2 series hydraulic motors utilize advanced Geroler technology and are fully compatible with the Char-lynn 2000 series, with various models available to meet diverse application requirements.

Product Specifications

Product Type	Gerotor Hydraulic Motors
Model Number	BMK2-125-E2-I-SU
Size	125 ml/r
Flange	2 Bolt
Shaft	Spline shaft
Rotation	Clockwise
Port	7/8-14UNF O-ring, 7/16-20 UN
Compatibility	Danfoss Eaton Charlynn 2000 series interchangeable

Technical Performance Data

Type BMK2	65	80	100	125	160	200	250	315	400	475
Geometric displacement (cm³/rev.)	65	80	100.9	129.8	156.8	193.4	242.5	304.3	390.8	485
Max. speed (rpm) cont.	835	800	742	576	477	385	308	246	191	153
Max. speed (rpm) int.	990	980	924	720	713	577	462	365	287	230
Max. torque (N*m) cont.	185	235	295	385	455	540	660	765	775	845
Max. torque (N*m) int.	245	345	445	560	570	665	820	885	925	930
Max. pressure drop (MPa) cont.	20.5	21	21	21	20.5	20.5	20.5	21	15.5	12
Max. pressure drop (MPa) int.	27.5	31	31	31	26	26	26	24	17	14
Max. pressure drop (MPa) peak	31	31	31	31	31	31	31	31	20.5	17
Max. flow (L/min) cont.	55	65	75	75	75	75	75	75	75	75
Max. flow (L/min) int.	65	80	95	95	115	115	115	115	115	115
Weight (kg)	9.2	9.4	9.7	10	10.2	10.5	11	11.5	12	12.4

* Continuous pressure: Maximum value for continuous motor operation
* Intermittent pressure: Maximum value for motor operation in 6 seconds per minute
* Peak pressure: Maximum value for motor operation in 0.6 second per minute

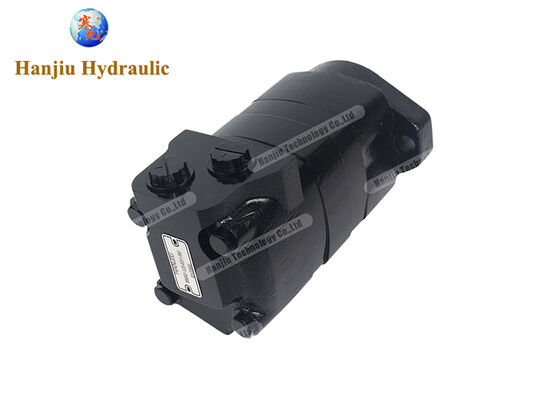

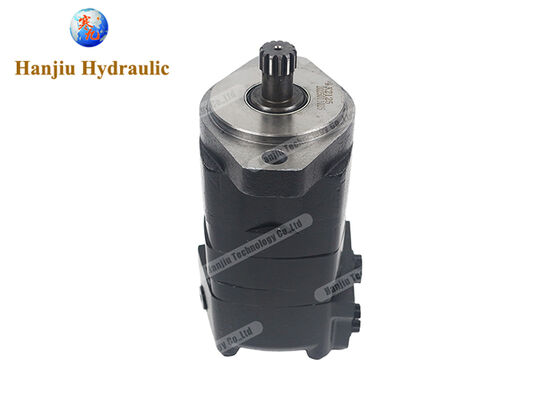

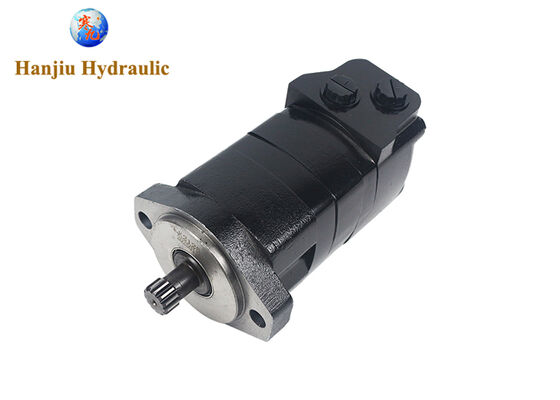

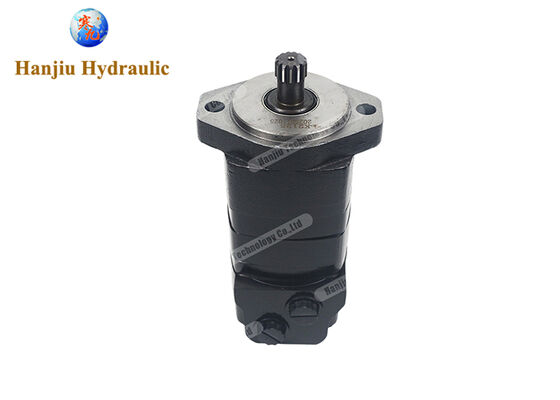

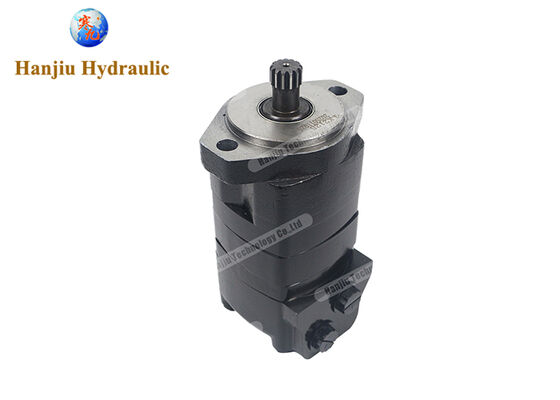

Product Images

Advanced Engineering Features

The BMK2 series motor adapts the GEROLER gear set design with high speed distribution flow and high pressure capability. These motors can be supplied with various options for multifunctional operations in accordance with application requirements. These lightweight advanced construction design motors are manufactured in accordance with ISO 9001-2000 quality system standards.

Compatible Models

BMK2 series motors are designed to match Danfoss Eaton Charlynn drive motors including:

J (129-)
H (101-)
S (103-)
T (158-)
W (162-)
2000 (104-, 105-, 106-, 193-)
4000 (109-, 110-, 111-)
6000 (112-, 113-, 114-)
10000 (119-)
