315 ml/r Gerotor Hydraulic Motor with 4 Bolt Wheel Mounting Flange and Taper Shaft for Char-lynn 2000 Series

315 ml/r Gerotor Hydraulic Motor with 4 Bolt Wheel Mounting Flange and Taper Shaft for Char-lynn 2000 Series
315 ml/r Gerotor Hydraulic Motor with 4 Bolt Wheel Mounting Flange and Taper Shaft for Char-lynn 2000 Series 315 ml/r Gerotor Hydraulic Motor with 4 Bolt Wheel Mounting Flange and Taper Shaft for Char-lynn 2000 Series 315 ml/r Gerotor Hydraulic Motor with 4 Bolt Wheel Mounting Flange and Taper Shaft for Char-lynn 2000 Series 315 ml/r Gerotor Hydraulic Motor with 4 Bolt Wheel Mounting Flange and Taper Shaft for Char-lynn 2000 Series 315 ml/r Gerotor Hydraulic Motor with 4 Bolt Wheel Mounting Flange and Taper Shaft for Char-lynn 2000 Series 315 ml/r Gerotor Hydraulic Motor with 4 Bolt Wheel Mounting Flange and Taper Shaft for Char-lynn 2000 Series 315 ml/r Gerotor Hydraulic Motor with 4 Bolt Wheel Mounting Flange and Taper Shaft for Char-lynn 2000 Series

Large Image :  315 ml/r Gerotor Hydraulic Motor with 4 Bolt Wheel Mounting Flange and Taper Shaft for Char-lynn 2000 Series

Product Details:
Place of Origin: China
Brand Name: HANJIU
Certification: CE, ISO9001
Model Number: BMK2-315-WE-T4-SU
Payment & Shipping Terms:
Minimum Order Quantity: 100 Pieces
Price: 89 usd/pc
Packaging Details: box, pallet
Delivery Time: 0 - 35 work days
Payment Terms: T/T,Western Union
Supply Ability: 200000 pieces per year
Contact Now
Detailed Product Description
Product: Gerotor Hydraulic Motors Model No.: BMK2-315-WE-T4-SU
Size: 315 Ml/r Flange: Wheel Flange
Highlight:

315 ml/r Gerotor Hydraulic Motor

,

4 Bolt Wheel Mounting Flange Hydraulic Wheel Motor

,

Taper Shaft BMK2 Series Motor

BMK2-315 Gerotor Hydraulic Motor
315 ml/r Gerotor Hydraulic Motor with 4 Bolt wheel mounting flange and taper shaft, fully compatible with Char-lynn 2000 Series
Product Overview
BMK2 series hydraulic motors utilize advanced Geroler technology and are fully compatible with the Char-lynn 2000 series, with various models available to meet diverse application requirements.
Product Specifications
Product Type Gerotor Hydraulic Motors
Model Number BMK2-315-WE-T4-SU
Size 315 ml/r
Flange 4 Bolt
Shaft Taper shaft
Rotation Clockwise
Port 7/8-14UNF O-ring, 7/16-20 UN
Compatibility Danfoss Eaton Charlynn 2000 series interchangeable
Technical Performance Data
Type BMK2 65 80 100 125 160 200 250 315 400 475
Geometric displacement (cm³/rev.) 65 80 100.9 129.8 156.8 193.4 242.5 304.3 390.8 485
Max. speed (rpm) cont. 835 800 742 576 477 385 308 246 191 153
Max. speed (rpm) int. 990 980 924 720 713 577 462 365 287 230
Max. torque (N*m) cont. 185 235 295 385 455 540 660 765 775 845
Max. torque (N*m) int. 245 345 445 560 570 665 820 885 925 930
Max. pressure drop (MPa) cont. 20.5 21 21 21 20.5 20.5 20.5 21 15.5 12
Max. pressure drop (MPa) int. 27.5 31 31 31 26 26 26 24 17 14
Max. pressure drop (MPa) peak 31 31 31 31 31 31 31 31 20.5 17
Max. flow (L/min) cont. 55 65 75 75 75 75 75 75 75 75
Max. flow (L/min) int. 65 80 95 95 115 115 115 115 115 115
Weight (kg) 9.2 9.4 9.7 10 10.2 10.5 11 11.5 12 12.4
* Continuous pressure: Maximum value for continuous motor operation
* Intermittent pressure: Maximum value for motor operation in 6 seconds per minute
* Peak pressure: Maximum value for motor operation in 0.6 second per minute

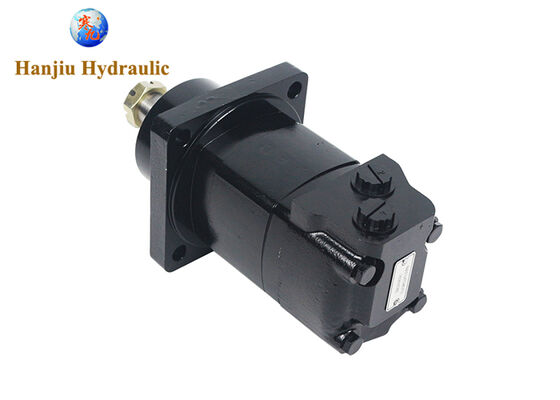

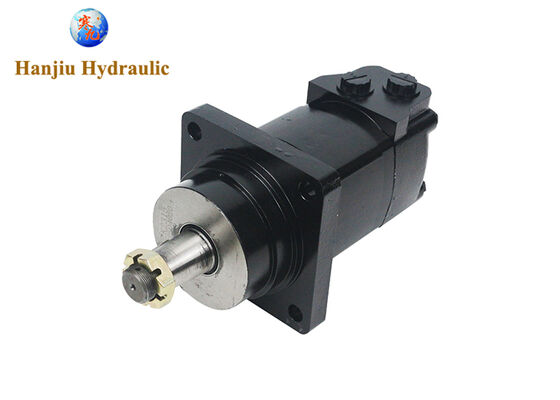

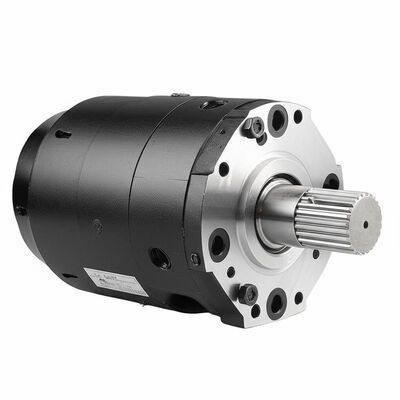

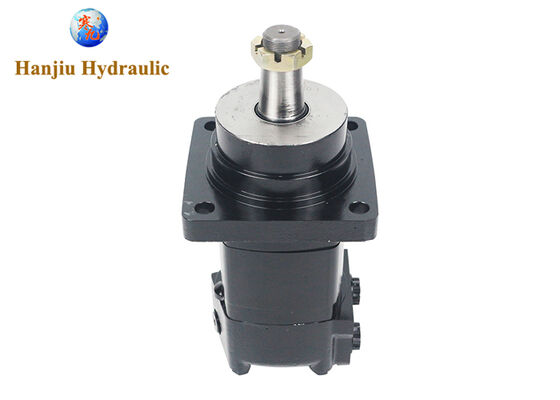

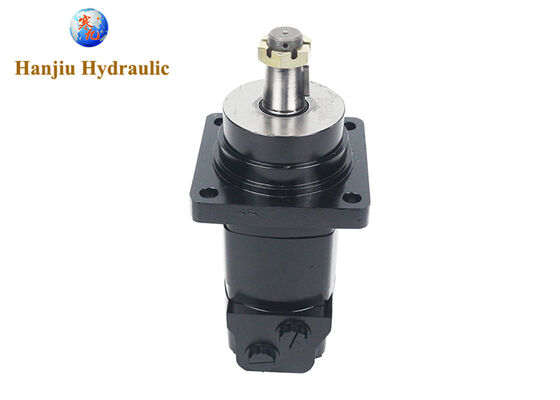

Product Images
315 ml/r Gerotor Hydraulic Motor with 4 Bolt Wheel Mounting Flange and Taper Shaft for Char-lynn 2000 Series 0 315 ml/r Gerotor Hydraulic Motor with 4 Bolt Wheel Mounting Flange and Taper Shaft for Char-lynn 2000 Series 1 315 ml/r Gerotor Hydraulic Motor with 4 Bolt Wheel Mounting Flange and Taper Shaft for Char-lynn 2000 Series 2 315 ml/r Gerotor Hydraulic Motor with 4 Bolt Wheel Mounting Flange and Taper Shaft for Char-lynn 2000 Series 3
Advanced Engineering Features
The BMK2 series motor adapts the GEROLER gear set design with high speed distribution flow and high pressure capability. These motors can be supplied with various options for multifunctional operations in accordance with application requirements. These lightweight advanced construction design motors are manufactured in accordance with ISO 9001-2000 quality system standards.
Compatible Models
BMK2 series motors are designed to match Danfoss Eaton Charlynn drive motors including:
  • J (129-)
  • H (101-)
  • S (103-)
  • T (158-)
  • W (162-)
  • 2000 (104-, 105-, 106-, 193-)
  • 4000 (109-, 110-, 111-)
  • 6000 (112-, 113-, 114-)
  • 10000 (119-)

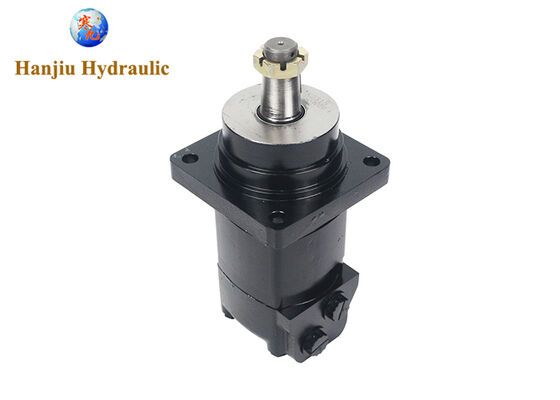

315 ml/r Gerotor Hydraulic Motor with 4 Bolt Wheel Mounting Flange and Taper Shaft for Char-lynn 2000 Series 4
About Hanjiu
We are HANJIU from China, specializing in hydraulic motor manufacturing. European, North American, and South American importers, dealers and users prefer Hanjiu's Disc valve motors as Eaton Char-lynn compatible alternatives. Hanjiu motors meet user quality requirements while offering competitive pricing that provides importers with excellent profit margins and high customer satisfaction rates.
Our Specializations
  • Eaton Char-lynn replacement/alternative/compatible motors
  • Sauer Danfoss replacement/alternative/compatible motors
  • Parker replacement/alternative/compatible motors
  • Brevini replacement/alternative/compatible motors
  • M+S replacement/alternative/compatible motors

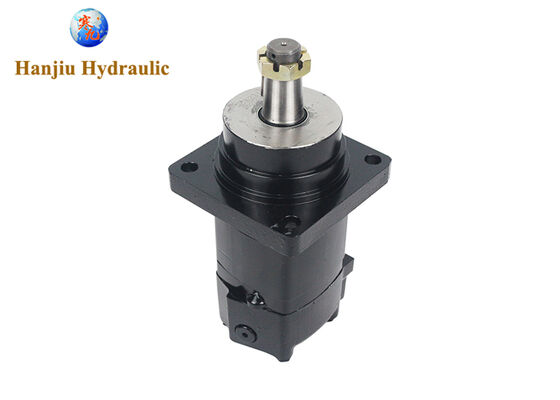

315 ml/r Gerotor Hydraulic Motor with 4 Bolt Wheel Mounting Flange and Taper Shaft for Char-lynn 2000 Series 5
