Hanjiu BMPH-50-H5-S-S 50cc/r Hydraulic Motor with SAE 6B shaft and SAE 10 port, Ensure reliability during long-term, high-intensity operation.

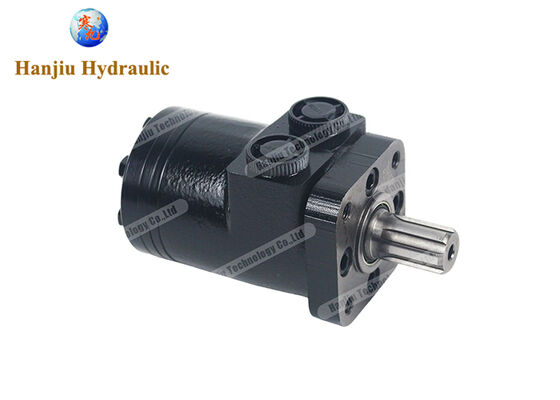

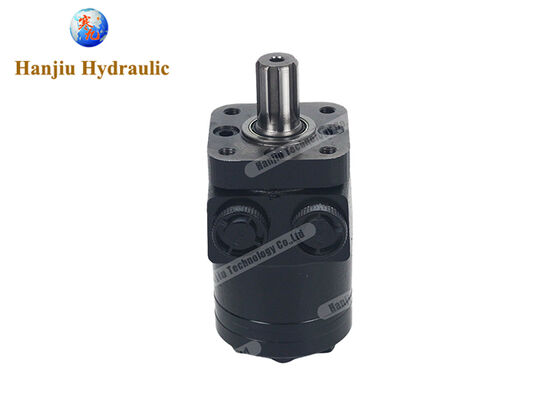

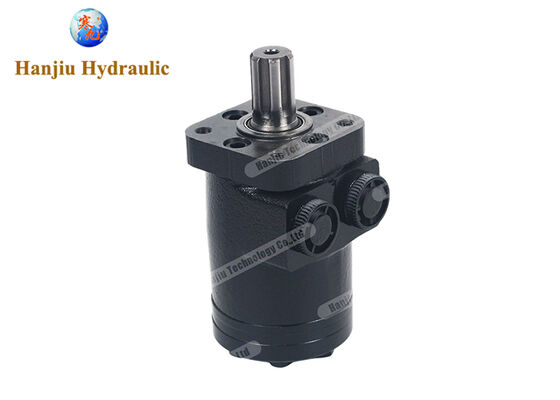

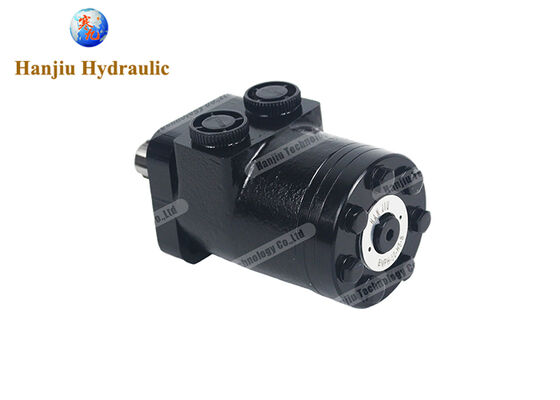

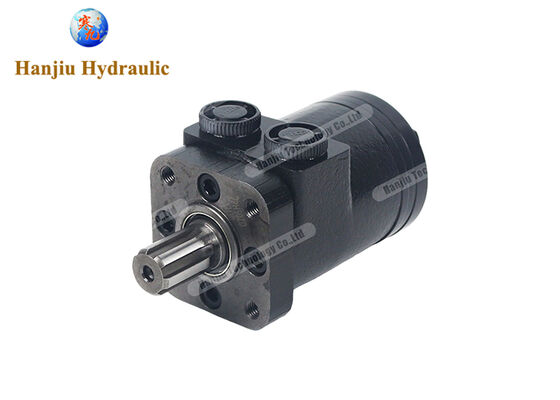

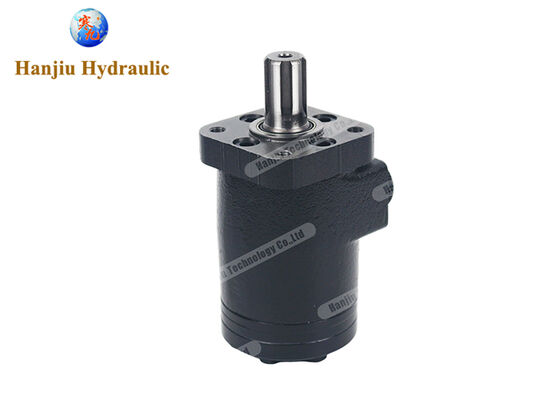

BMPH-50-H5-S-S 50cc/r Hydraulic Motor

Brand new BMPH series hydraulic motors. Gerotor power element. Interchangeable with the following motor lines:  Danfoss DH, White RS, Parker/Ross MG/TB.

SPECIFICATIONS
Disp. 3.15 cu. in. / rev.
Motor Type Gerotor
Pressure:
  2031 PSI cont.
  2538 PSI int.
Torque:
  885  in-lbs. cont.
  1133  in-lbs. int.
Speed:
  1150  RPM cont.
  1450  RPM int.
Flow:
  15.8  GPM cont.
  19.8  GPM int.

Rotation Reversible
Mount 4-M10 Square-flange , pilot Ø44.4×2.8
Shaft  Ø25.4 , splined tooth SEA 6B
Ports 7/8-14 O-ring ,
Case Drain 7/16-20UNF

In today's rapidly evolving global manufacturing landscape, European and American companies have clear and high-standard demands for hydraulic drive solutions that offer high cost-effectiveness, high reliability, and rapid delivery. Hanjiu's hydraulic motors are positioned around the core principles of "compliance with mainstream European and American standards, superior durability, and highly competitive total cost of ownership." Focusing on technological comparison, lifecycle cost, rapid delivery, and a comprehensive after-sales service system, they provide stable, efficient, and easy-to-maintain drive solutions for European and American manufacturing industries.

Choosing Hanjiu means choosing higher productivity, lower risk, and more predictable long-term benefits.
