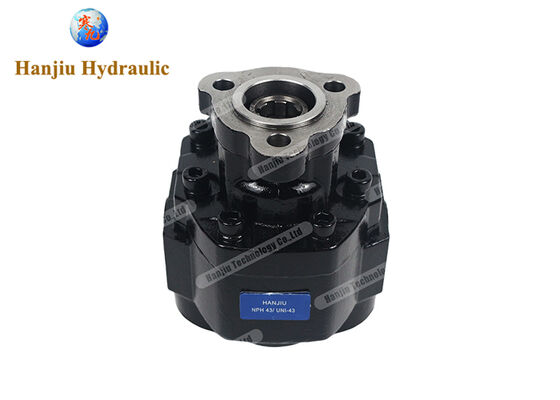

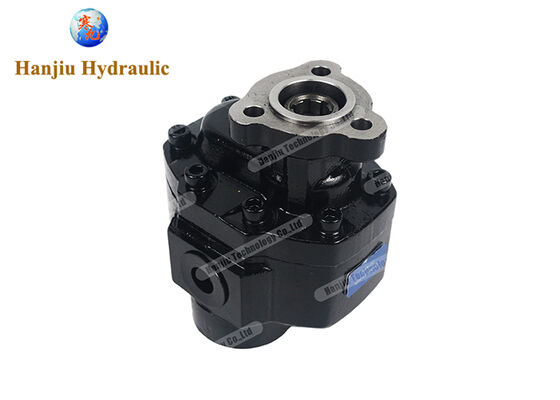

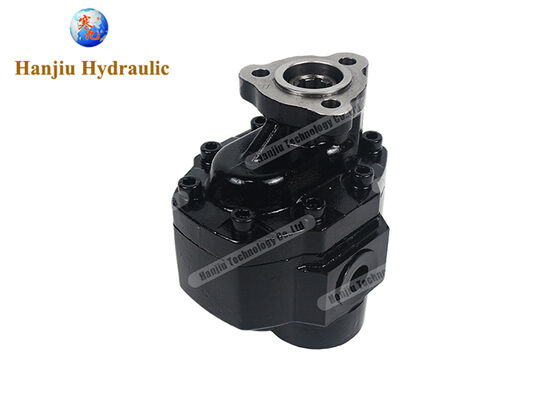

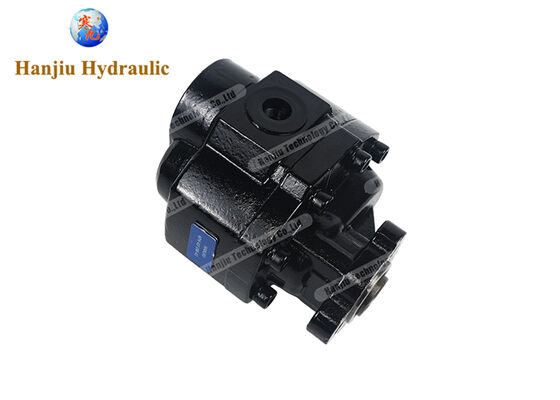

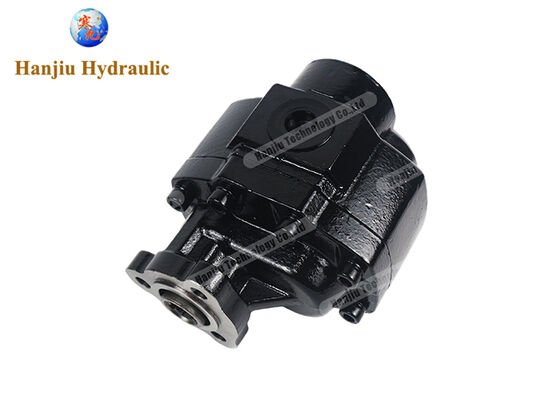

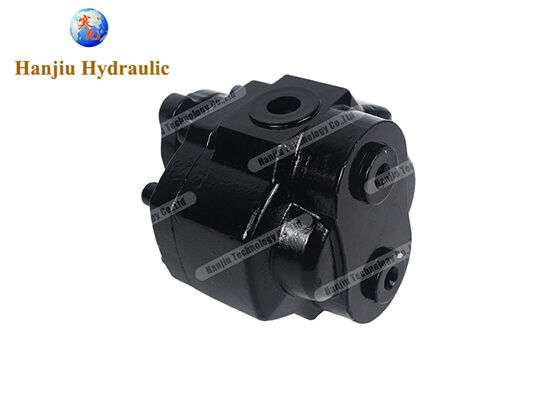

NPH-43 UNI-43 Hydraulic Gear pump for medium-heavy duty, High reliability, low failure rate and low maintenance requirements

DESCRIPTION
TYPE OF PUMP: NPH-43 UNI-43
DISPLACEMENT CC: 43
ROTATION:Right

Product description:
High-performance OMFB NPH-43 hydraulic gear pump replacement.
Right rotation design with a 3-bolt UNI flange and G 3/4” threaded ports.
An excellent choice for industrial, agricultural and truck hydraulic systems.

Main features:

Type: NPH-43
Rotation: Right
Inlet port (IN): G 3/4”
Outlet port (OUT): G 3/4”
Displacement: 43 cm³/rev
Max. working pressure: 280 bar
Peak pressure: 310 bar
Maximum speed: 2800 rpm
Minimum speed: 300 rpm
Shaft type: 6×21×25 (ISO 14)
Mounting: 3-bolt, Ø12 mm
Housing material: cast iron
Weight: 10.5kg

FAMILY DESCRIPTION
Autocompensated one-way cast-iron pumps for medium-heavy duty, displacements from 17 to 125 cc- 3 hole Flanging UNI 21x25- Side intake, side and rear delivery OPTIONAL: bronze thrust plate. This is crucial in mobile machinery.

More type pumps available:
