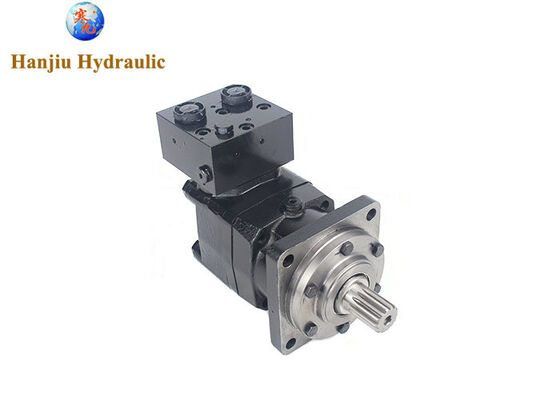

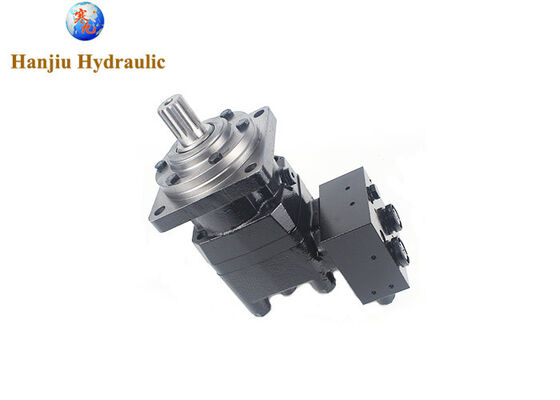

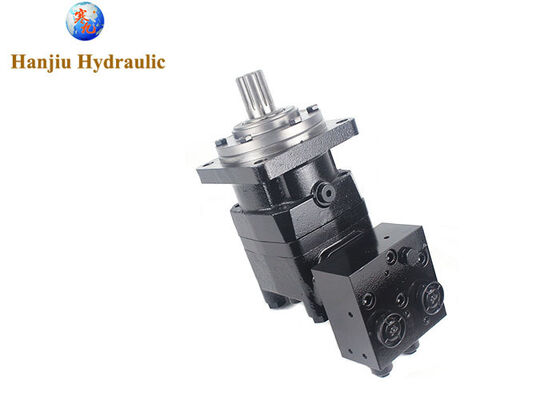

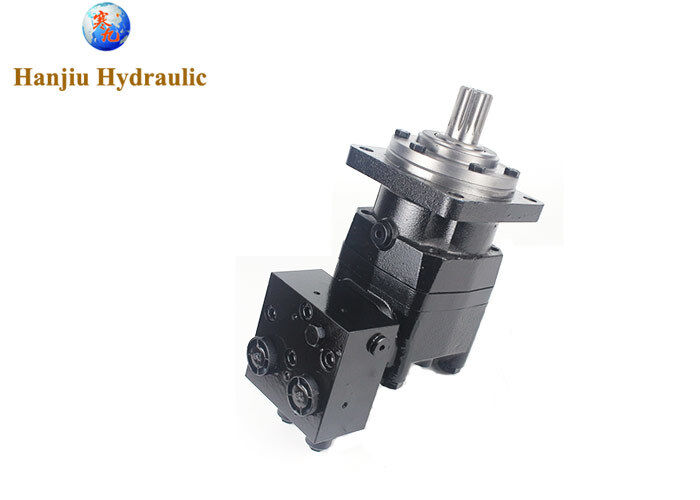

HYDRAULIC ORBIT MOTOR OMT160 WITH CROSSOVER RELIEF VALVE

HYDRAULIC ORBIT MOTOR OMT160 WITH CROSSOVER RELIEF VALVE

Details

type code BMT-160-4-FC-M1+FPTD-3-21-D

• Output volume (cc/rev): 160cc
• Shaft: spline shaft, 14T
• max r.p.m.: 780
• Torque max. (Nm): 470/560
• Power max. (kW): 32
• Pressure difference (bar): 200
• Inlet pressure (bar): 240
• Volume flow max. (l/min): 125
• Engine version: with non-return valves
• Connection: G 3/4
• Leakage oil connection: G 1/4

Main Specifications:

Application:

Construction equipment

Agricultural machinery

Material handling equipment

Marine applications

Industrial machinery

Hanjiu Corporation positions motor orbital as one of its core product lines. From incoming raw material inspection and precision machining of core components to complete assembly and full performance testing, the company has established and rigorously implements a comprehensive quality control process. This ensures every delivered product meets our established standards for high performance and reliability. We are not only committed to providing premium hydraulic transmission products but also aspire to become a trusted partner for our customers in enhancing equipment performance and optimizing system efficiency through our deep expertise and extensive engineering experience, jointly creating greater value.
