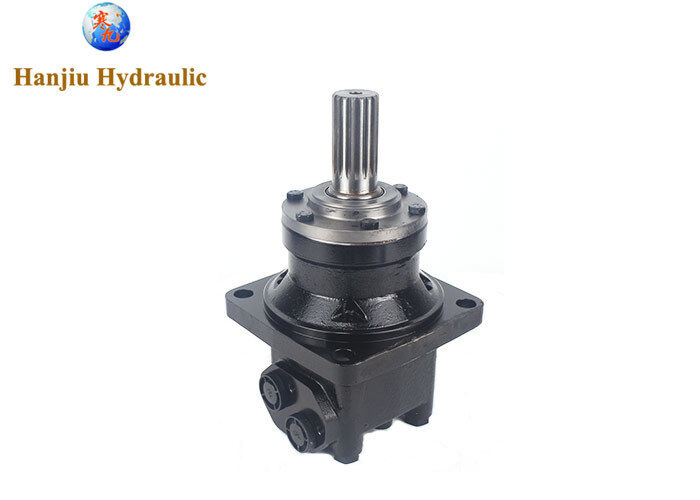

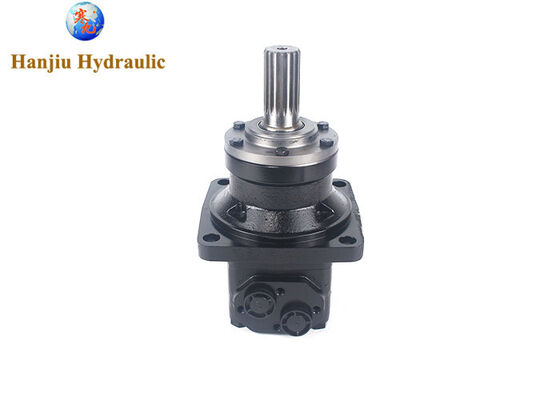

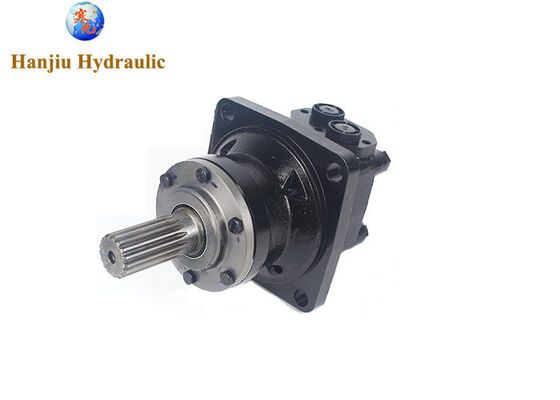

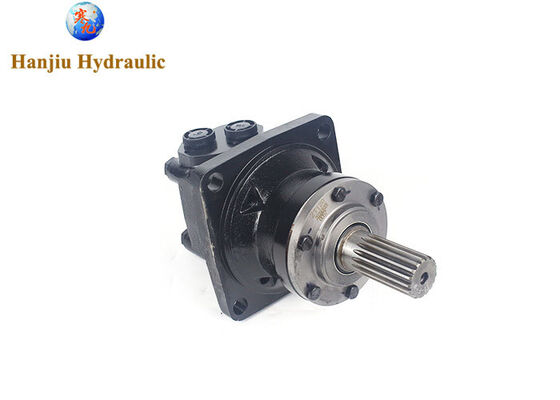

MTW200SH OMTW200 HYDRAULIC WHEEL MOTOR WITH SPLINE SHAFT

MTW200SH OMTW200 HYDRAULIC WHEEL MOTOR WITH SPLINE SHAFT

Details

type code BMT-200-W-F-D=MTW200SH

• Output volume (cc/rev): 200cc
• Shaft: spline shaft, 17T
• max r.p.m.: 625/780rpm
• Torque max. (Nm): 590/710
• Power max. (kW): 40
• Pressure difference (bar): 200
• Inlet pressure (bar): 240
• Volume flow max. (l/min): 150
• Engine version: with non-return valves
• Connection: G 3/4
• Leakage oil connection: G 1/4

Main Specifications:

It is used in the hydraulic system of the MKDU TOMEZ combined machine and other special equipment.

In the field of construction machinery, HANJIU's orbital motors perform particularly well. Take the grapple as an example: with strong and precise driving force, the motor can easily handle the gripping of irregular heavy materials, demonstrating excellent load adaptability in scenarios such as construction waste sorting and scrap metal processing. In log grappler applications, the motor's precise control over gripping tightness enables efficient handling of timber and sugarcane. In screw drilling applications, the low-speed, high-torque characteristics provide sufficient power for drill rigs, ensuring stable operation under complex geological conditions. Agricultural and forestry machinery is also an area where orbital motors have an advantage; in equipment such as combine harvesters and seeders, the motors ensure operational quality and efficiency with their low-speed stability and high performance. Urban sanitation equipment, such as sweepers and mixers, also widely employ orbital motors for reliable drive. In the marine and special equipment sectors, orbital motors play a significant role in deck machinery like anchor winches and capstans, thanks to their robust structure and excellent sealing performance. For underground mining equipment, HANJIU can provide explosion-proof designs that meet IP67 protection standards to satisfy safety requirements in specific working environments. In material handling and industrial automation, orbital motors are widely used in feeders, conveyors, and pumping devices, and their compact design allows them to perform exceptionally even in installations with limited space.

HANJIU Technology not only provides standard products but can also design products based on user requirements. Whether it's displacement adjustment, customized shaft extensions, or integrating brakes or flushing valves, we can provide precisely matched solutions. Performance is the cornerstone of our products, and application reflects their value. With continuous research and innovation in orbital motor technology, HANJIU Technology is dedicated to providing high-performance, high-reliability power products to customers worldwide. Whether you are in construction machinery, agricultural production, or specialized equipment, the orbital hydraulic motors sold by HANJIU will be a power partner you can trust.
