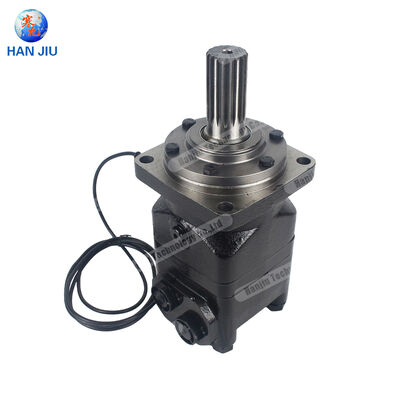

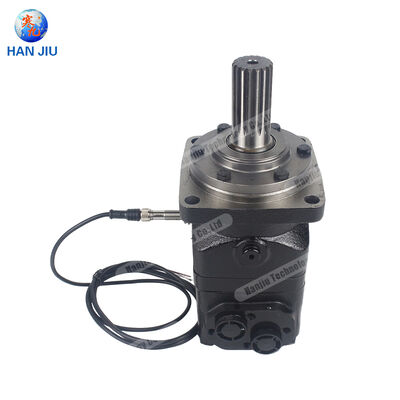

Hydraulic motor with speed sensor; 84 pulses per revolution; 1.5m cable, BMT-315, BMT OMT MT Series
Quick review:
| Model No. |
BMT-315-4-F-D-SD |
|
Displacement
|
315 ml/r |
| Speed sensor |
84 pulses /r |
Main Specifications:
| Type |
BMT
160 |
BMT
200 |
BMT
230 |
BMT
250 |
BMT
315 |
BMT
400 |
BMT
500 |
BMT
630 |
BMT
800 |
| displacement (cm3/rev. ) |
161.1 |
201.4 |
232.5 |
251.8 |
326.3 |
410.9 |
523.6 |
629.1 |
801.8 |
Max. speed
(rpm) |
cont. |
625 |
625 |
536 |
500 |
380 |
305 |
240 |
196 |
154 |
| int. |
780 |
750 |
643 |
600 |
460 |
365 |
285 |
233 |
185 |
| Max. torque (N.m) |
cont. |
470 |
590 |
670 |
730 |
950 |
1080 |
1220 |
1318 |
1464 |
| int. |
560 |
710 |
821 |
880 |
1140 |
1260 |
1370 |
1498 |
1520 |
| peak |
669 |
838 |
958 |
1036 |
1346.3 |
1450.3 |
1643.8 |
1618.8 |
1665 |
| Max. output (KW) |
cont. |
27.7 |
34.9 |
34.7 |
34.5 |
34.9 |
31.2 |
28.8 |
25.3 |
22.2 |
| int. |
32 |
40 |
40 |
40 |
40 |
35 |
35 |
27.5 |
26.8 |
| Max.pressure drop (MPa) |
cont. |
20 |
20 |
20 |
20 |
20 |
18 |
16 |
14 |
12.5 |
| int. |
24 |
24 |
24 |
24 |
24 |
21 |
18 |
16 |
13 |
| peak |
28 |
28 |
28 |
28 |
28 |
24 |
21 |
19 |
16 |
| Max. flow (L/min) |
rated |
80 |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
| cont. |
100 |
125 |
125 |
125 |
125 |
125 |
125 |
125 |
125 |
| int. |
125 |
150 |
150 |
150 |
150 |
150 |
150 |
150 |
150 |
Max. inlet
pressure (Mpa) |
cont. |
21 |
21 |
21 |
21 |
21 |
21 |
21 |
21 |
21 |
| int. |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
| peak |
30 |
30 |
30 |
30 |
30 |
30 |
30 |
30 |
30 |
| Weight (kg) |
19.5 |
20 |
20.4 |
20.5 |
21 |
22 |
23 |
24 |
25
|
The BMT series of hydraulic motors, equipped with speed sensors, is primarily utilized in closed-loop and open-loop hydraulic systems that require precise control over rotational speed, direction, or position feedback. This configuration is frequently found in heavy-duty mobile machinery and automated industrial equipment, enabling intelligent monitoring and automated adjustment capabilities.
More BMT series hydraulic motor available:
| BMT 160 |
BMTE 230 |
BMTJ 230 |
| BMT 200 |
BMTE 230 |
BMTJ 230 |
| BMT 250 |
BMTE 250 |
BMTJ 250 |
| BMT 315 |
BMTE 315 |
BMTJ 315 |
| BMT 400 |
BMTE 400 |
BMTJ 400 |
| BMT 500 |
BMTE 500 |
BMTJ 500 |
| BMT 630 |
BMTE 630 |
BMTJ 630 |
| BMT 800 |
BMTE 800 |
BMTJ 800
|
Applications of Speed Sensor Hydraulic Motors:
For example, used in forklift trucks, sweepers, and road maintenance machinery. These sensors provide vehicle speed feedback, ensuring that the vehicle maintains a constant travel speed under varying load conditions.
Agricultural and Forestry Machinery: Widely utilized in combine harvesters, planting equipment, and spreaders. For instance, on salt spreaders, sensors monitor motor speed to precisely control the discharge rate of de-icing salt.
Material Handling and Lifting: Employed in winches, aerial lifts, and conveyor systems. In these applications, speed sensors ensure smooth starts and stops while preventing hook slippage or inconsistent conveyor speeds.
Positioning and Precision Feeding: In applications such as granule metering for injection molding machines—or wherever precise positioning feedback is required—the sensor functions as an "encoder," delivering high-resolution signals of up to 180 pulses per revolution.
Are you looking to integrate sensor capabilities into your existing equipment? Or are you currently selecting the appropriate motor specifications for a new machine model? Please contact us; we can provide the ideal hydraulic motor solution tailored specifically to your equipment.
More Speed sensor Hydraulic Motors, BMM series, BMR series, BMS series, BMV series
