Gerotor Hydraulic Motor 100 Ccm/rev 230 Bar 55015538 for mining drilling machines

Large Image : Gerotor Hydraulic Motor 100 Ccm/rev 230 Bar 55015538 for mining drilling machines

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	ISO9001
Model Number:	bmsys motor

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	Negotiable
Packaging Details:	36x32x18cm/ 2 pcs/ carton, 720 pcs/ 20' GP.
Delivery Time:	20 - 25 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,Payple
Supply Ability:	10000 pieces per months

Contact Now

Detailed Product Description

Type:	Hydraulic Bearingless Motor	Manufacturer:	HANJIU
Model No.:	BMSYS100	Replace:	OMSS100
Shaft:	12 Teeth Spline Shaft	Oil Port:	G1/4
Drain:	G1/2	Application:	MINIING DRILLING MACHINES
Highlight:	Gerotor hydraulic motor 100 ccm/rev , Hydraulic drive motor 230 bar , Sandvik mining drilling machine motor

Gerotor Hydraulic Motor 100 Ccm/rev 230 Bar 55015538 for mining drilling machines

Type model: BMSYS100

Cross reference: OMSS100

Application: DC125R,DC122R,DC121R,DC120R

Technical information:

Splined shaft 12 spline 12/24 (Ø27.6mm)

Circle-flange Ø125 , ×6 pilot

Lateral port 1/2 BSP -

Drain port 1/4BSP

Type			BMSYS 80	BMSYS 100	BMSYS 125	BMSYS 160	BMSYS 200	BMSYS 250	BMSYS 315	BMSYS 400	BMSYS 475
Displacement (cc/rev)			80.6	100.8	125	154	194	243	311	394	475
Max speed rate (rpm)	cont		800	748	600	470	375	300	240	185	155
Max speed rate (rpm)	int		988	900	720	560	450	360	280	225	185
Max torque (N.m)	cont		225	290	365	485	586	708	880	880	910
Max torque (N.m)	int		250	320	400	540	645	806	960	960	960
Max output (KW)	cont		16	18	18	18.1	18.1	18	17	11	9
Max output (KW)	int		20	22	23	24	24	23.8	20.2	12	11
Max pressure Drop(Mpa)	cont		20.5	20.5	20.5	21	21	20	20	16	14
Max pressure Drop(Mpa)	int		22.5	22.5	22.5	22.5	22.5	22.5	22.5	17.5	15
Max.flow (L/min)		cont	65	75	75	75	75	75	75	75	75
Max.flow (L/min)		int	80	90	90	90	90	90	90	90	90
Weight(kg)			9.8	10	10.3	10.7	11.1	11.6	12.3	13.2	14.3

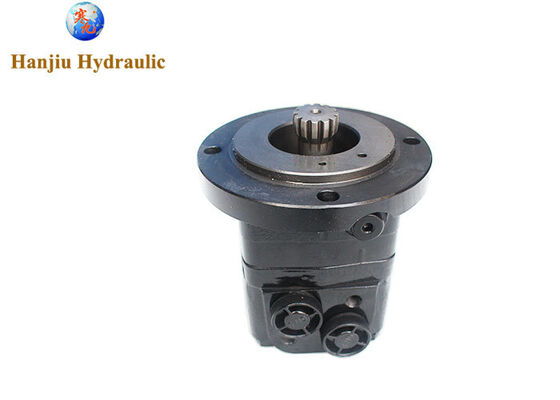

Gerotor Hydraulic Motor 100 Ccm/rev 230 Bar 55015538 for mining drilling machines 0

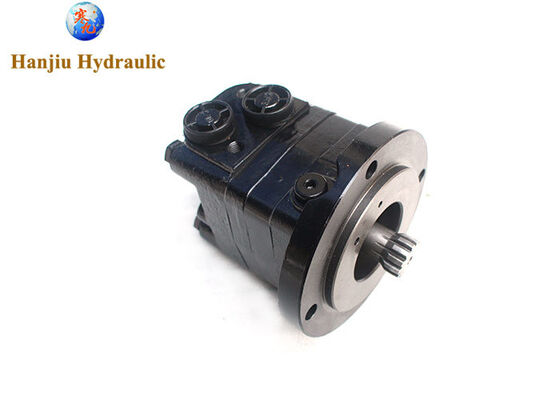

Gerotor Hydraulic Motor 100 Ccm/rev 230 Bar 55015538 for mining drilling machines 1

Other types

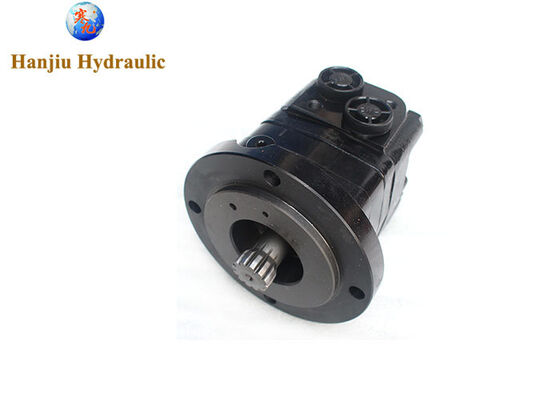

Gerotor Hydraulic Motor 100 Ccm/rev 230 Bar 55015538 for mining drilling machines 2

orbital motor size chart

orbital motor catalog pdf

orbital motors diagram

orbital motors list

orbital motor manufacturers

orbital motor specifications

orbital motors for sale

low speed orbital motors
