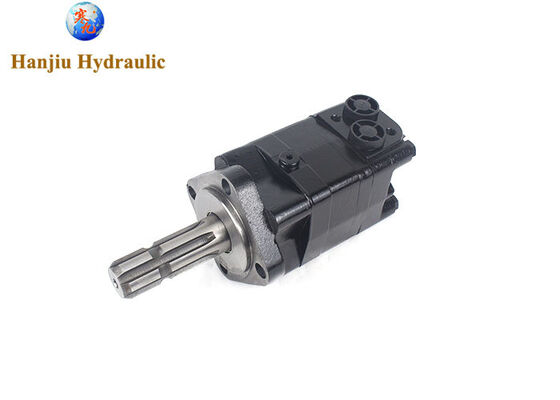

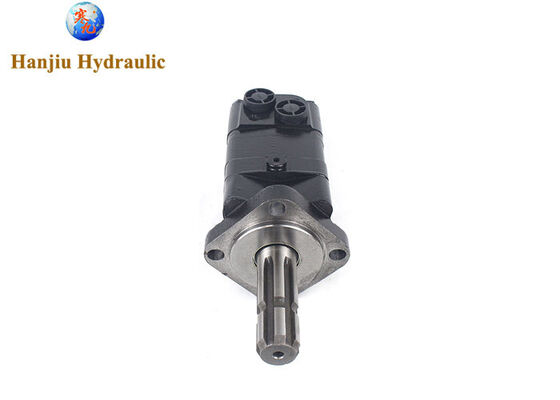

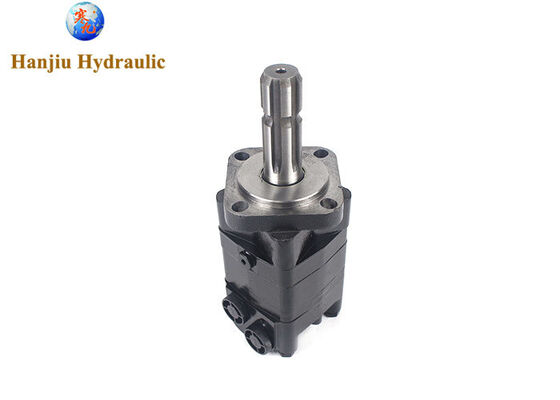

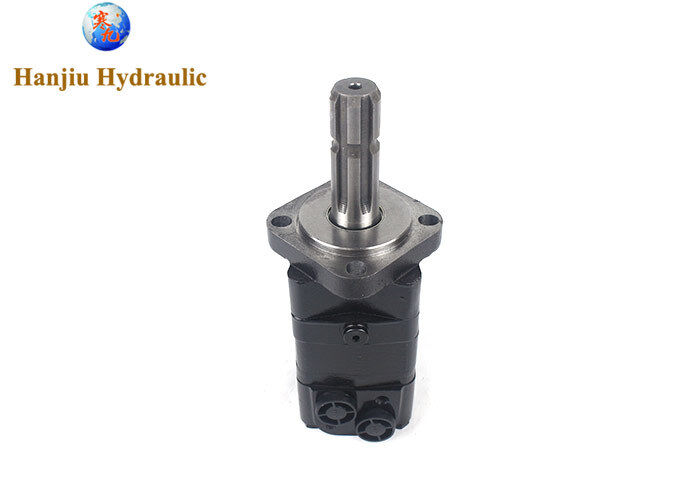

Hydraulic Orbital Motor BMSY-200 with PTO shaft MS200SL

Hydraulic Orbital Motor BMSY-200 with PTO shaft MS200SL

Product details:

type code BMSY-200-E4-SL-D-B

Displacement:200cc

Flange:4-Ø13.5 Rhomb-flange Ø106.4,pilot Ø82.5×6.3

Shaft:shaft Ø34.85,Splined key,6-34.85×28.14×8.64

Ports:G1/2

BMSY  Main Specifications:

Other choice

Contact a hydraulics specialist or HANJIU . Solve all your hydraulic motor problems

As the core driving component of various agricultural machinery, the performance of hydraulic motors is crucial. HANJIU Technology's motor orbital OMS 200, with its powerful performance and stable reliability, has become an ideal choice for many agricultural machines.

The HANJIU motor orbital OMS 200 uses an advanced end-face distribution structure, offering high distribution accuracy and automatic wear compensation to ensure the motor maintains high volumetric efficiency throughout its entire service life. Its core components feature high working pressure and high output torque, allowing stable operation for extended periods under high-pressure conditions. This model has a displacement of 200 cc/rev, a maximum continuous torque of up to 865 Nm, and a maximum continuous working pressure of 140-160 bar. Featuring a tapered roller bearing structure, it can withstand substantial axial and radial loads, enabling the motor to directly drive the working mechanism without additional support bearings. The minimum stable speed can reach 5-10 rpm, ensuring smooth operation at low speeds without crawling.

On combine harvesters, the motor orbital OMS 200 drives the header lift, reel adjustment, and conveyor operation. Its excellent low-speed stability ensures the header can smoothly follow the contour of the crops, reducing crop loss; its powerful output torque ensures that even under dense and wet crop conditions, the conveyor can operate continuously and stably without jamming or stoppages. Many harvester users have reported that after equipping with OMS series motors, operational efficiency has significantly increased and downtime due to faults has been greatly reduced.

In modern seeders, this motor is used to drive the seed metering device and fertilizer mechanism. Its precise speed control and excellent startup characteristics ensure that seeds and fertilizers are evenly discharged according to preset amounts, achieving precise planting. Especially in field corners where frequent stop-starts or speed changes are required, the motor responds quickly, ensuring consistent row spacing and plant spacing, laying a foundation for high yields.

On large tractors, the motor orbital OMS 200 can serve as the power source for the rear hitch system, precisely controlling the lifting and penetration depth of heavy plows and harrows. Its strong impact resistance allows it to handle instantaneous shock loads caused by hidden stones in the soil, protecting agricultural implements from damage. Additionally, this motor can be used to drive front loaders, enabling efficient material handling.

In silage harvesters, feed mixers, and other livestock machinery, the motor orbital OMS 400, with its high torque output and capability for long-term continuous operation, ensures reliable equipment performance, boosting efficiency in large-scale farming operations.

The motor orbital OMS 200, launched by HANJIU Technology, is based on a mature technology platform and has been adaptively optimized for domestic agricultural conditions. The company has R&D centers in Beijing and Hangzhou, and relies on advanced manufacturing and testing equipment to perform rigorous performance tests on every product. HANJIU not only provides reliable standard products but also offers customized services according to the specific needs of different agricultural machinery manufacturers, including interface dimensions, shaft types, and protection levels, ensuring perfect compatibility with the host machine.

Choosing the HANJIU motor orbital OMS 200 means selecting a powerful, efficient, and reliable power core for your agricultural machinery. We welcome inquiries and purchases from agricultural machinery users and OEMs. Let us work together with dependable hydraulic technology to help improve quality and efficiency in modern agriculture.
