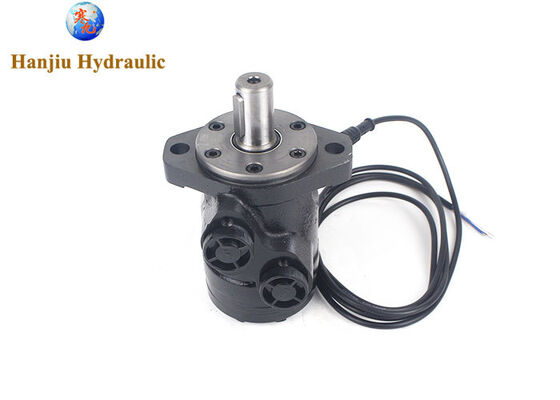

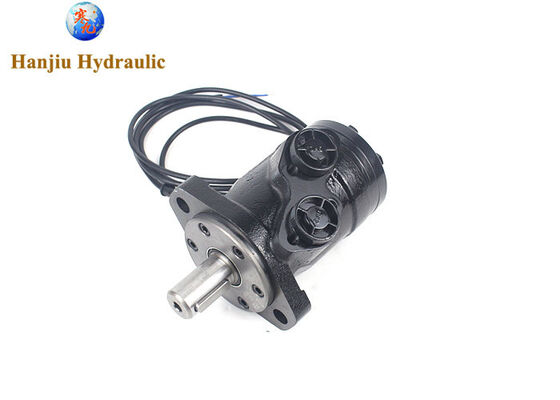

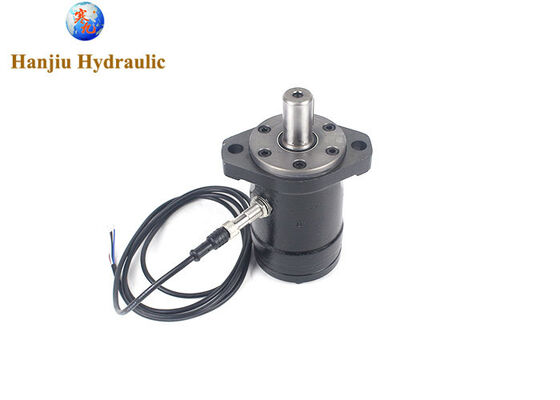

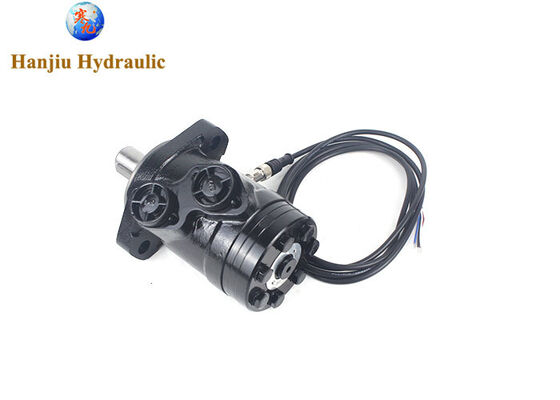

hydraulic motor gerotor motor MP32CD with speed sensor cross reference BMP-36-2-A-D-SD

Large Image : hydraulic motor gerotor motor MP32CD with speed sensor cross reference BMP-36-2-A-D-SD

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE
Model Number:	BMP-36-2-A-D-SD

Payment & Shipping Terms:

Minimum Order Quantity:	10 Pieces
Price:	Negotiable
Packaging Details:	Carton Box
Supply Ability:	90000 Pieces One Year

Contact Now

Detailed Product Description

Features:	High Pressure Oil Seal	Product Name:	Hydraulic Motor
Material:	Cast Iron	Model Number:	BMP-36-2-A-D-SD
Displacement:	36cc	Application:	Auger , Skid Steer, Trench
Highlight:	hydraulic gerotor motor MP32CD , orbit hydraulic motor with speed sensor , BMP-36-2-A-D-SD cross reference motor

hydraulic motor gerotor motor MP32CD with speed sensor cross reference BMP-36-2-A-D-SS

► Product details

model type:BMP-36-2-A-D-SD=MP32CD RS

displacement:36cc

flange:2 bolts flange, φ106.4mm,pilot φ82.5x8

shaft: φ25mm key shaft

port threads:G1/2

► Specification

BMP / OMP/MP Motors

Type		BMP 36	BMP 50	BMP 80	BMP 100	BMP 125	BMP 160	BMP 200	BMP 250	BMP 315	BMP 400	BMP 500
Geometric displacement (cm3 /rev.)		36	51.7	77.7	96.2	120.2	157.2	194.5	240.3	314.5	389.5	486.5
Max. speed (rpm)	cont.	1500	1150	770	615	490	383	310	250	192	155	120
Max. speed (rpm)	int.	1650	1450	960	770	615	475	385	310	240	190	150
Max. torque (N·m)	cont.	55	100	146	182	236	302	360	380	375	360	385
	int.	76	128	186	227	290	370	440	460	555	525	560
	peak	96	148	218	264	360	434	540	550	650	680	680
Max. output (kW)	cont.	8	10	10	11	10	10	10	8.5	7	6	5
Max. output (kW)	int.	11.5	12	12	13	12	12	12	10.5	8.5	7	6
Max. pressure drop (MPa)	cont.	12.5	14	14	14	14	14	14	11	9	7	6
	int.	16.5	17.5	17.5	17.5	17.5	17.5	17.5	14	14	10.5	9
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	18	16	14	12
Max. flow (L/min)	cont.	55	60	60	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	60	75	75	75	75	75	75	75	75	75	75
Weight (kg)		5.6	5.6	5.7	5.9	6	6.2	6.4	7	6.9	7.4	8
