Hydraulic Control Valve DCV100, with one rotary manual control lever Mobile Directional Valves

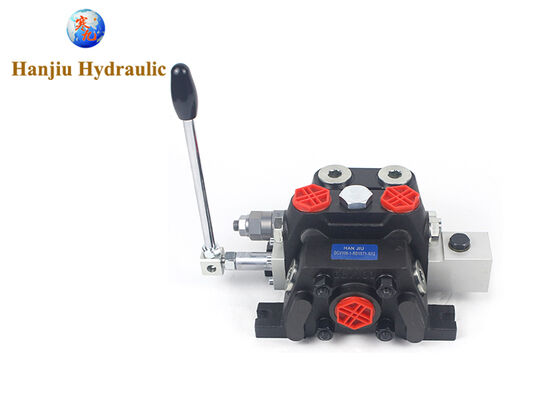

Large Image : Hydraulic Control Valve DCV100, with one rotary manual control lever Mobile Directional Valves

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU
Certification:	CE
Model Number:	DCV100-1

Payment & Shipping Terms:

Minimum Order Quantity:	100 Sets
Price:	Ask supplier
Packaging Details:	Standard export package
Delivery Time:	25 - 35 work days
Payment Terms:	T/T
Supply Ability:	300000 sets per year

Contact Now

Detailed Product Description

Item:	Hydraulic Section Valve	Model:	DCV100/1
Spool No.:	1 Lever	Max Operation Pressure:	315 Bar
Material:	Cast Iron	Spool:	3 Position Double Acting
Control:	Spring Return	Flow Rate:	26.5gpm
Highlight:	Hydraulic directional control valve with manual lever , Mobile hydraulic valve DCV100 , Directional control valve with rotary lever

Hydraulic Control Valve DCV100, with one rotary manual control lever Mobile Directional Valves

Features: DCV100-1

flow rate	100liters,26.5gpm
number of spools	1 lever
inlet section valve	side inlet, with relief valve
relief valve set pressure	100-315bar,max pressure 315bar
inlet port size	SAE Ports, BSPP ports, Metric ports
spool type	3 positon, double acting
handle side arrangement	rotary manual control
spool cap side arrangement	3positions, spring return
working section arrangement	standard type
work port size	BSPP Ports
outlet section type	top outlet, or side outlet
outlet port size	BSPP Ports

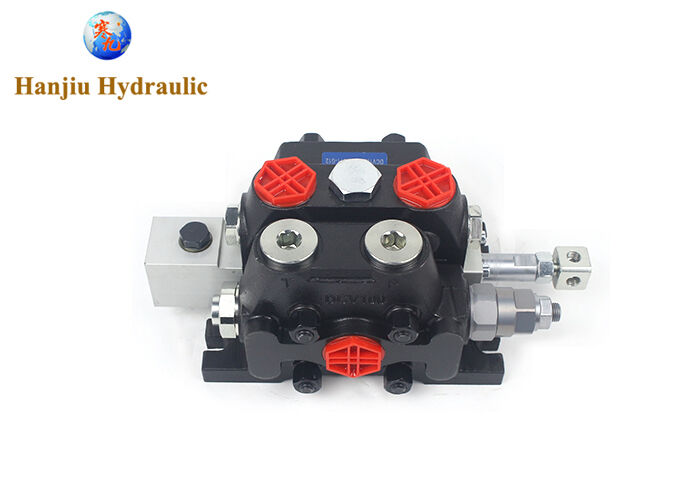

Hydraulic Control Valve DCV100, with one rotary manual control lever Mobile Directional Valves 0

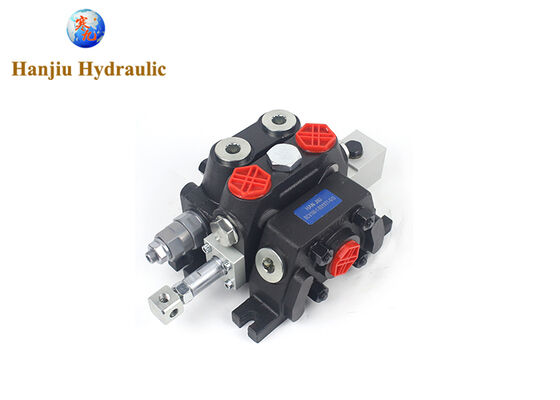

Hydraulic Control Valve DCV100, with one rotary manual control lever Mobile Directional Valves 1

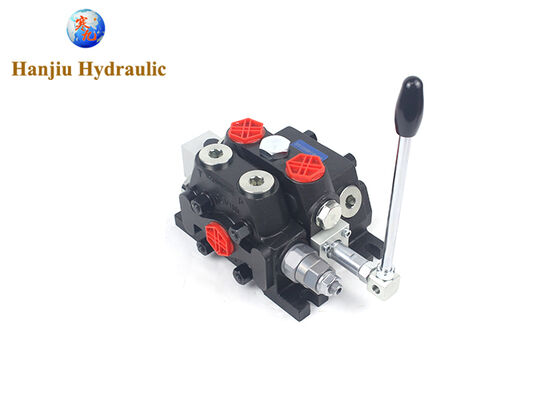

Hydraulic Control Valve DCV100, with one rotary manual control lever Mobile Directional Valves 2

Hydraulic Control Valve DCV100, with one rotary manual control lever Mobile Directional Valves 3

Application:

tractor

dump truck

sweeper

harvesters

backhoe loaders

excavators

deep drilling rig

Hydraulic Control Valve DCV100, with one rotary manual control lever Mobile Directional Valves 4
