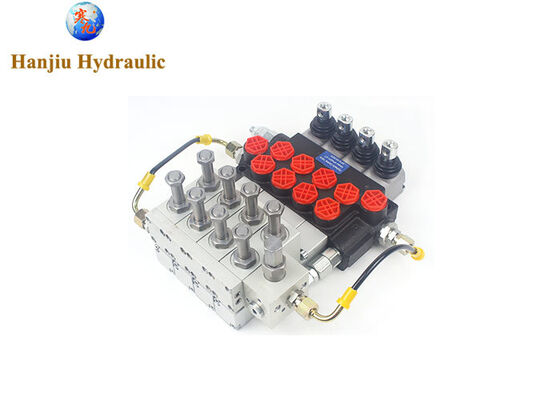

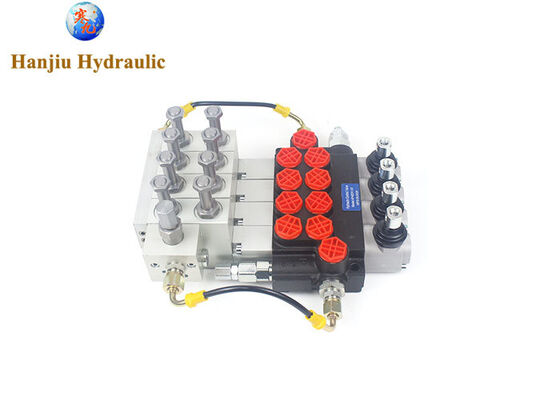

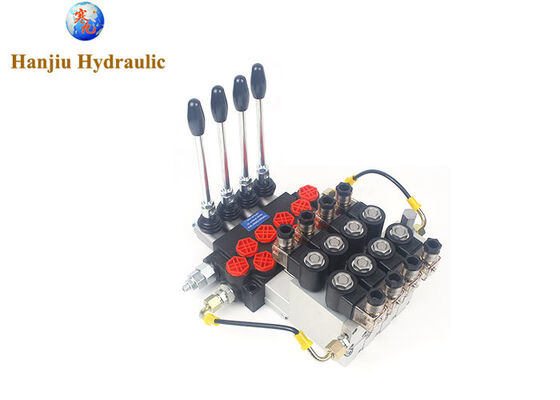

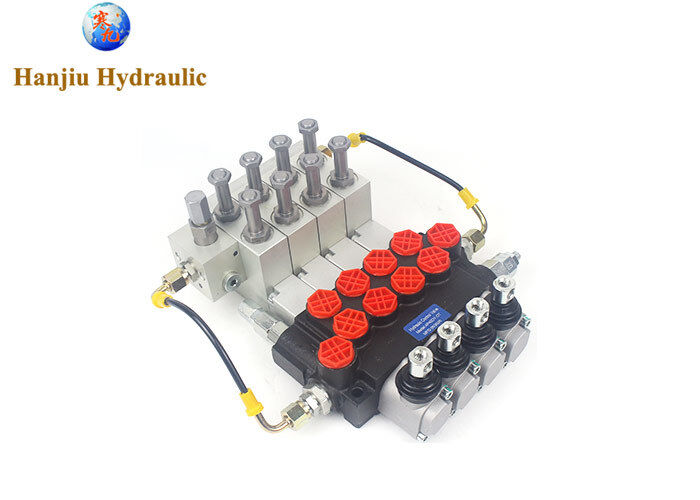

AKON Hydraulic monoblock valve pneumatic-electric valve with 4 spools

Large Image : AKON Hydraulic monoblock valve pneumatic-electric valve with 4 spools

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU
Certification:	CE
Model Number:	2P40

Payment & Shipping Terms:

Minimum Order Quantity:	100 Sets
Price:	Contact the seller to get a quote
Packaging Details:	Carton, Box, Pallets
Delivery Time:	25 - 35 work days
Payment Terms:	L/C,T/T,Western Union,Western Union
Supply Ability:	300000 sets per year

Contact Now

Detailed Product Description

Item:	Monoblock Valve	Material:	Cast Iron
Apply To:	Tractor Vehicles, Agricultural Machines	Spool:	4spools
Max Operation Pressure:	250 Bar	Control Type:	Spring Return, Detent Return, Electric, Pneumatic
Highlight:	hydraulic monoblock valve with spools , pneumatic-electric valve 4 spools , directional control valve hydraulic

AKON Hydraulic monoblock valve pneumatic-electric valve with 4 spools

type code

P40DY-4 electric-pneumatic valve, with12VDC

Code: P40 liters
Sections: 4
Relief Valve Setting Pressure:180(bar)
Intlet Port Option: G3/8
Control Method Option: manual control +electric control+pneumatic control
Spool Function: 3 Positions, double acting;
Spool Returning Way:spring return
Working Port Option: G3/8
Outlet Port Option: G3/8

flow rate	40 liters
number of spools	4 spools
inlet section valve	side inlet, with relief valve
relief valve set pressure	200bar
inlet port size	G3/8
spool type	3 Positions, Double Acting
handle side arrangement	standard type
spool cap side arrangement	3position, spring return,manual control,detent control,
working section arrangement	standard type
work port size	G3/8
outlet section type	top outlet,side
outlet port size	G3/8

AKON Hydraulic monoblock valve pneumatic-electric valve with 4 spools 0

AKON Hydraulic monoblock valve pneumatic-electric valve with 4 spools 2

AKON Hydraulic monoblock valve pneumatic-electric valve with 4 spools 3

AKON Hydraulic monoblock valve pneumatic-electric valve with 4 spools 4

AKON Hydraulic monoblock valve pneumatic-electric valve with 4 spools 5

AKON Hydraulic monoblock valve pneumatic-electric valve with 4 spools 6

AKON Hydraulic monoblock valve pneumatic-electric valve with 4 spools 7

Different types

AKON Hydraulic monoblock valve pneumatic-electric valve with 4 spools 8

P40 P80 P120 series / ZT(ZD) series /SD series / DCV series / RD500 series...

The valve is widely used in hydraulic systems of agriculture machinery, forklifts, sanitation trucks, transport machinery, lifting & handing equipment, construction machinery, etc.

When to Choose Which

Choose Electric if you need high precision, energy efficiency, and simple integration with digital control systems.
Choose Pneumatic if you need high-speed, repetitive movements with clean, safe media and lower force requirements.
Choose Hydraulic if your application involves heavy-duty lifting, pressing, or requires holding massive loads in place

if you are not sure about which valves you need,

pls feel free to contact us !
