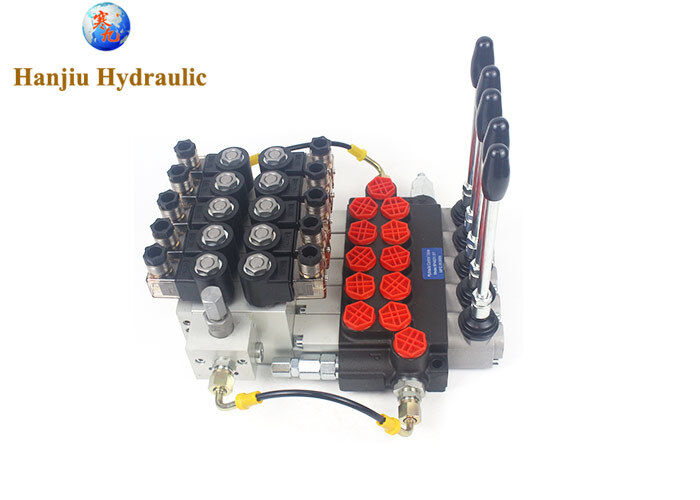

Electro-Pneumatic Hydraulic Directional Control Valves Hydraulic Valve 5P40-DY

Large Image : Electro-Pneumatic Hydraulic Directional Control Valves Hydraulic Valve 5P40-DY

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU
Certification:	CE
Model Number:	5P40DY-OT

Payment & Shipping Terms:

Minimum Order Quantity:	100 Sets
Price:	Contact the seller to get a quote
Packaging Details:	Carton, Box, Pallets
Delivery Time:	25 - 35 work days
Payment Terms:	L/C,T/T,Western Union,Western Union
Supply Ability:	300000 sets per year

Contact Now

Detailed Product Description

Spool:	5spools	Max Operation Pressure:	250 Bar
Apply To:	Tractor Vehicles, Agricultural Machines	Material:	Cast Iron
Item:	Monoblock Valve	Control Type:	Spring Return, Detent Return, Electric, Pneumatic
Highlight:	Electro-Pneumatic Hydraulic Valve 5P40-DY , Directional Control Valve with warranty , Hydraulic Control Valve 5P40-DY

Electro-Pneumatic Hydraulic Directional Control Valves Hydraulic Valve

type code

5P40DY-OT electric-pneumatic valve, with 24VDC

Code: P40 liters
Sections: 5 spools
Relief Valve Setting Pressure:200(bar)
Intlet Port Option: G3/8
Control Method Option: manual control +electric control+pneumatic control
Spool Function: 3 Positions, double acting;
Spool Returning Way:spring return
Working Port Option: G3/8
Outlet Port Option: G3/8

flow rate	40 liters
number of spools	5 spools
inlet section valve	side inlet, with relief valve
relief valve set pressure	200bar
inlet port size	G3/8
spool type	3 Positions, Double Acting
handle side arrangement	standard type
spool cap side arrangement	3position, spring return,manual control,detent control,
working section arrangement	standard type
work port size	G3/8
outlet section type	top outlet,side
outlet port size	G3/8

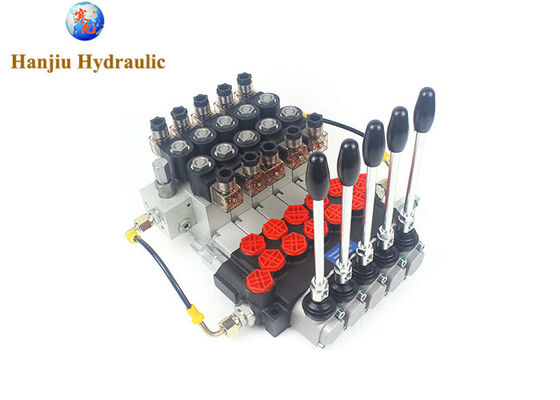

Electro-Pneumatic Hydraulic Directional Control Valves Hydraulic Valve 5P40-DY 0

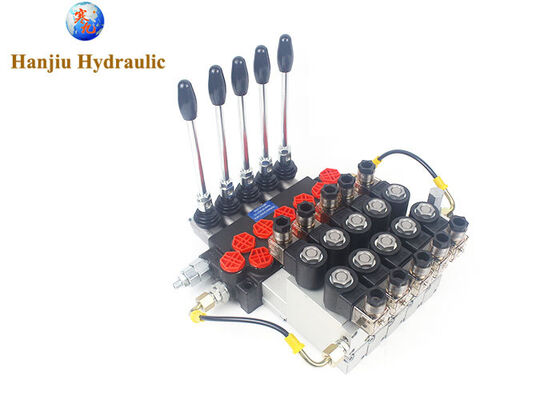

Electro-Pneumatic Hydraulic Directional Control Valves Hydraulic Valve 5P40-DY 2

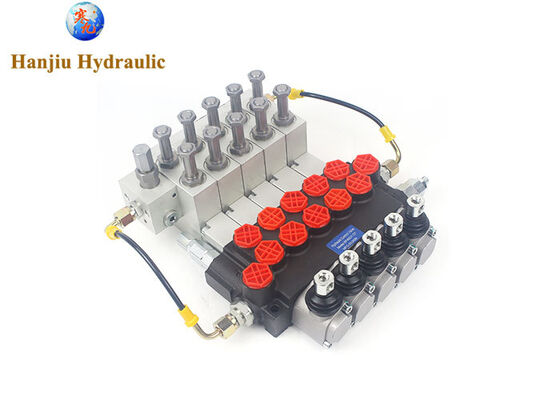

Electro-Pneumatic Hydraulic Directional Control Valves Hydraulic Valve 5P40-DY 3

Electro-Pneumatic Hydraulic Directional Control Valves Hydraulic Valve 5P40-DY 4

Electro-Pneumatic Hydraulic Directional Control Valves Hydraulic Valve 5P40-DY 5

HANJIU TECHNOLOGY P40 SERIES DIRECTIONAL CONTROL VALVE
ADVANTAGE	Stable performance,low price and high universality
CONTROL TYPE	manual control ,pneumatic control,electro-hydraulic control,solenoid control,eletro-pneumatic control,joystick control and remote control,etc
MONOBLOCK STRUCTURE	1-7 Sections
APPLICATION FIELDS	construction machines,environmental sanitation machines,mining machines,agricultural machines and other types of machines.

Different types

Electro-Pneumatic Hydraulic Directional Control Valves Hydraulic Valve 5P40-DY 6

The valve is widely used in hydraulic systems of agriculture machinery, forklifts, sanitation trucks, transport machinery, lifting & handing equipment, construction machinery, etc.

As a core component in a hydraulic system, the stability and reliability of the hydraulic directional valve is critical to the operation of the entire system. Through regular maintenance and repair, as well as effective treatment of common failures, you can ensure that the hydraulic directional valves continue to play a good performance in the complex and changing conditions. If the directional valve is seriously damaged, it needs to be replaced in time, Hanjiu company produces and sells high-quality hydraulic valves, the quality of these products is guaranteed, after-sales service in place, if you need, you can go to the official website of Hanjiu company to browse the relevant information, look forward to working with you.
