Hydraulic directional control valve joystick valve 2P40 for backhoe loader and mounted loaders with floating function

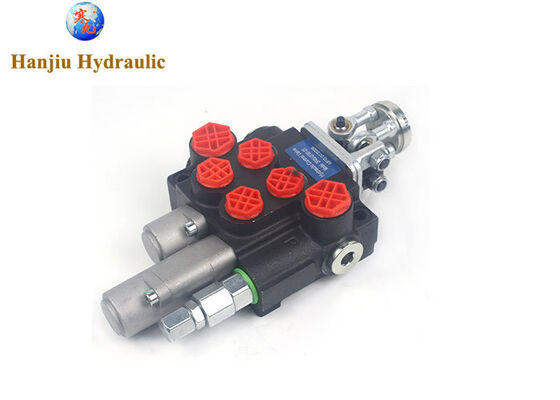

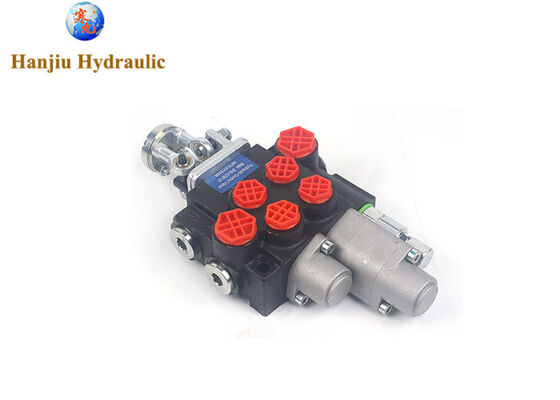

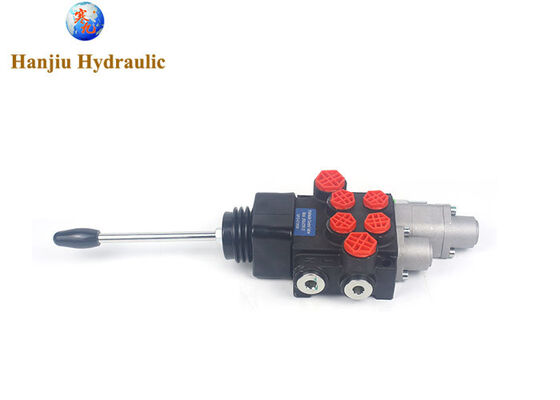

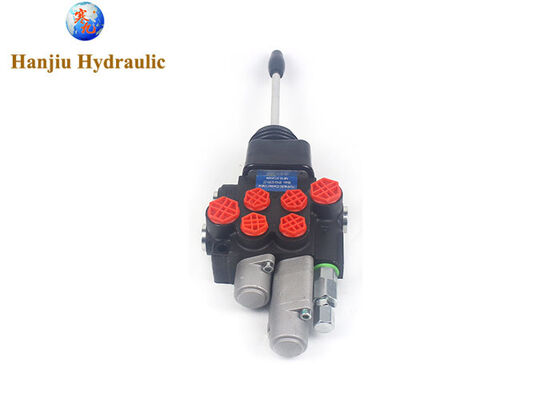

Large Image : Hydraulic directional control valve joystick valve 2P40 for backhoe loader and mounted loaders with floating function

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU
Certification:	CE
Model Number:	2P40JOT

Payment & Shipping Terms:

Minimum Order Quantity:	100 Sets
Price:	Contact the seller to get a quote
Packaging Details:	Carton, Box, Pallets
Delivery Time:	25 - 35 work days
Payment Terms:	L/C,T/T,Western Union,Western Union
Supply Ability:	300000 sets per year

Contact Now

Detailed Product Description

Spool:	2 Spools	Material:	Cast Iron
Control Type:	Manual Control With Electric-pneumatic	Max Operation Pressure:	250 Bar
Item:	Hydraulic Valves	Apply To:	Forklifts, Cranes, Loaders
Highlight:	Hydraulic directional control valve 2P40 , Joystick valve for backhoe loader , Directional control valve with floating function

Hydraulic directional control valve joystick valve 2P40 for backhoe loader and mounted loaders with floating function

type code 2P40 with joystick valve, widely used on backhoe loader, mounted loaders,

one spool is 3 positions, the other spool is floating position

flow rate	40 liters
number of spools	2 manual control
inlet section valve	side inlet, with relief valve
relief valve set pressure	250bar
inlet port size	G1/2
spool type	4 positons, double acting and 3 positions, double acting
handle side arrangement	standard handle
spool cap side arrangement	3position, spring return
working section arrangement	standard type
work port size	G1/2
outlet section type	top outlet,side
outlet port size	G1/2

Hydraulic directional control valve joystick valve 2P40 for backhoe loader and mounted loaders with floating function

Product Description:

Monoblock hydraulic control valve with joystick has small and compact design for tight installations.
High-tensile strength cast iron monoblock construction.
Precision ground and hard chrome-plated spools assure a long life.
Vertical or horizontal handle mount.

Application:

This Hydraulic Joystick Control Valve can be used on Loaders, special vehicles, truck mounted crane, wrecker, scrubbing machine and dynamic compactor and can effectively control such actuating mechanisms like motor and oil cylinder.
We have variety of Hydraulic Monoblock valves available, 40 liters, 45 liters, 50 liters, 60 liters, 80 liters.

Other types we offer

DCV20

DCV40

DCV60

DCV100

DCV140

DCV200

P81 log splitter valve

Hydraulic directional control valve joystick valve 2P40 for backhoe loader and mounted loaders with floating function
