Hydraulic monoblock direction valve 40 liters replacement HDM140 control valve

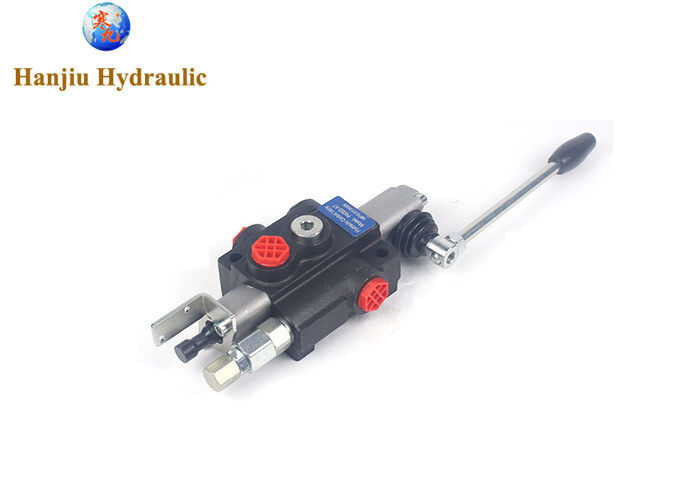

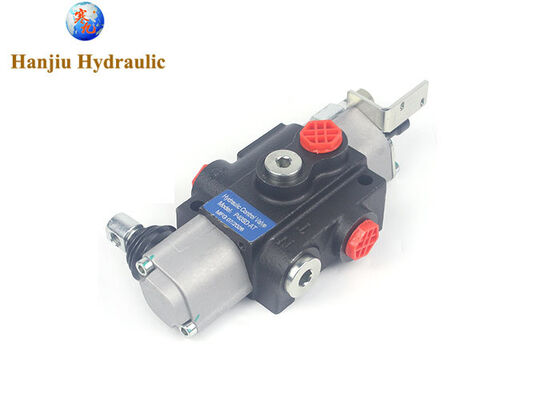

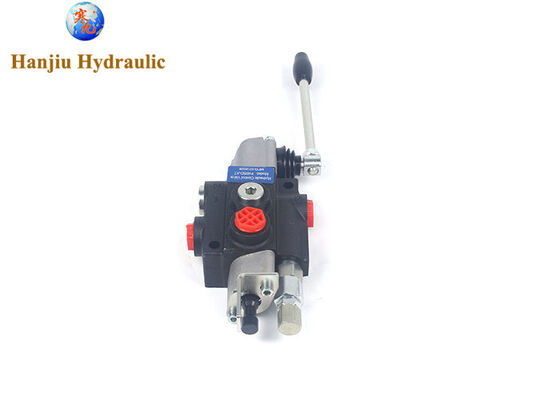

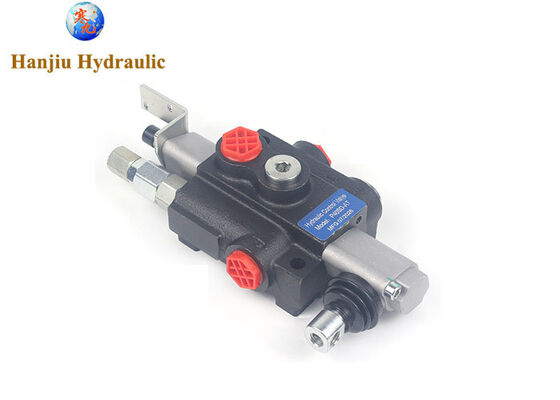

Large Image : Hydraulic monoblock direction valve 40 liters replacement HDM140 control valve

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU
Certification:	CE
Model Number:	P40SD-AT

Payment & Shipping Terms:

Minimum Order Quantity:	100 Sets
Price:	Contact the seller to get a quote
Packaging Details:	Carton, Box, Pallets
Delivery Time:	25 - 35 work days
Payment Terms:	L/C,T/T,Western Union,Western Union
Supply Ability:	300000 sets per year

Contact Now

Detailed Product Description

Material:	Cast Iron	Max Operation Pressure:	250 Bar
Item:	Monoblock Valve	Control Type:	P40SD-AT
Apply To:	Forklift Truck	Spool:	One Spool
Highlight:	Hydraulic monoblock direction valve 40 liters , HDM140 control valve replacement , Directional control valve with warranty

Hydraulic monoblock direction valve 40 liters replacement HDM140 control valve

type details:

type code:P40SD-AT interchange HDM140

flow rate:40liters

spool type:1 spool

pressure:200bar

inlet port:G1/2

working port:G3/8

control: 3position double acting,A closed

outlet port:G3/8

Spool positon:90degree side spool

Features: with Microswitch

Control type:
manual control

Circuit type: parallel

Application :

Cranes, Telescopic boom fork lifts, Back-hoe Excavators and Compactors,Sanitation Vehicles

flow rate	40 liters
number of spools	1 bank
inlet section valve	side inlet, with relief valve
relief valve set pressure	200bar
inlet port size	G1/2
spool type	3 positon, double acting, A closed
handle side arrangement	standard type
spool cap side arrangement	3position, spring return,manual control,detent control,
working section arrangement	standard type
work port size	G3/8
outlet section type	top outlet,side
outlet port size	G1/2
