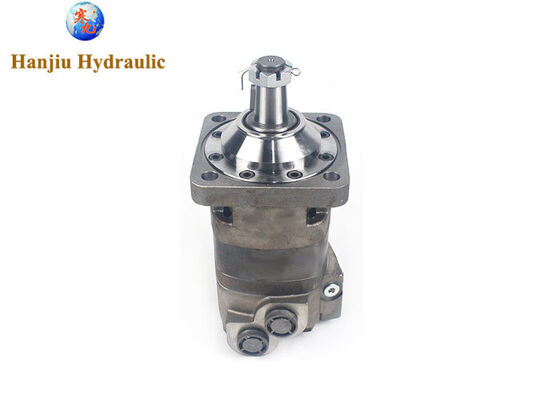

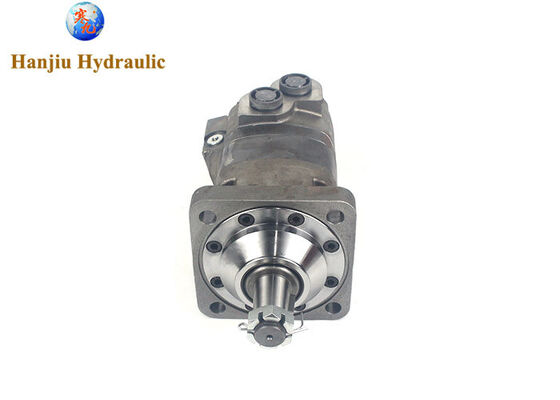

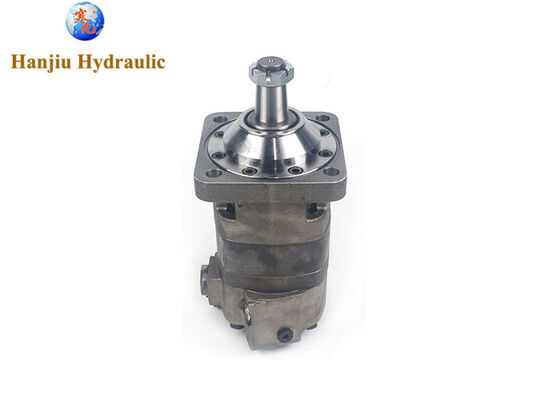

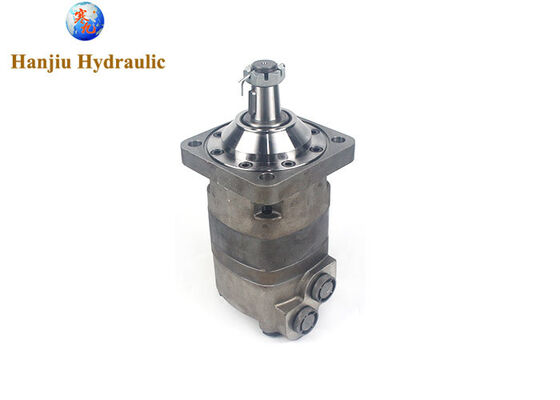

Eaton low-speed, high-torque (LSHT) motors 109-1052-006 for SKIDSTEER 641,631
Hanjiu low-speed, high-torque (LSHT) motors deliver reliable, energy-efficient performance in a wide variety of applications. Their industry-leading high-torque motors are available in Geroler/gerotor, piston and drive models.
Product details:
Disc Motor
Geroler
Disc Valve109-1052-006 Char-Lynn 4000 Series Hydraulic Motor
tapered shaft
Special flange
.875-14 UNF-2B SAE O-RING PORTS - STAGGERED PORTS
.5625-18 UNF-2B SAE O-RING PORT WITH SHUTTLE--case flow port
displacement 311.8 CM3/R [19.03 IN3/R]
Main Specifications:
| TYPE |
BMK4 |
BMK4 |
BMK4 |
BMK4 |
BMK4 |
BMK4 |
| 160 |
200 |
250 |
315 |
400 |
500 |
| Displacement(ml/r) |
159.2 |
195.6 |
246.1 |
311.6 |
391.3 |
490.8 |
| Max.speed(rpm) |
cont. |
560 |
440 |
300 |
234 |
188 |
155 |
| int. |
670 |
535 |
450 |
351 |
282 |
232 |
| Max.Pressure.Drop(Mpa) |
cont. |
20 |
20 |
20 |
20 |
20 |
20 |
| int. |
30 |
30 |
30 |
30 |
30 |
27.5 |
| peak. |
30 |
30 |
30 |
30 |
30 |
30 |
| Max.Torque(N.m) |
cont. |
450 |
565 |
710 |
920 |
1160 |
1445 |
| int. |
680 |
855 |
1080 |
1325 |
1625 |
1880 |
| Max.Flow(cont.)(L/min) |
cont. |
95 |
95 |
150 |
150 |
150 |
150 |
| int. |
115 |
115 |
205 |
225 |
225 |
225 |
| Weight(kg) |
26.3 |
26.5 |
26.8 |
27.3 |
28 |
28.8 |
With years of deep expertise in the hydraulic motor industry, Hanjiu has always focused on refining its products based on users’ real-world experiences, avoiding unnecessary technical specifications and focusing solely on solving users’ practical problems. From raw material selection and precision machining to actual testing of system pressure and sealing performance, every orbital hydraulic motor undergoes rigorous testing to ensure compatibility with a wide range of daily residential and commercial hydraulic equipment operating conditions. Thanks to their stable performance, rugged quality, and extremely low operating and maintenance costs, Hanjiu’s products have earned widespread recognition from end users both domestically and internationally. If you are facing operational challenges such as unstable motors, frequent breakdowns, or difficult maintenance, we invite you to visit Hanjiu’s official website to select the hydraulic motor orbital best suited to your needs and completely resolve these daily operational damage points.
