109-1450-006 Char-Lynn Eaton hydraulic orbital motor series 4000,LSHT gerotor motor

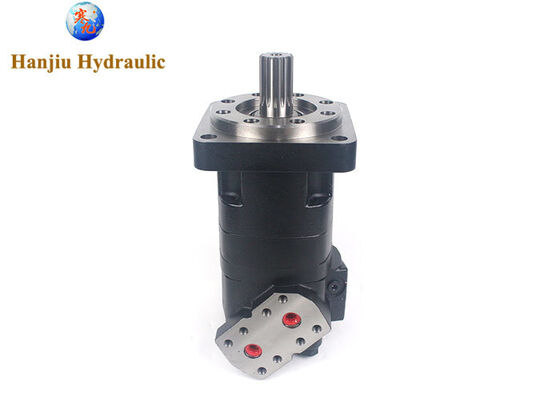

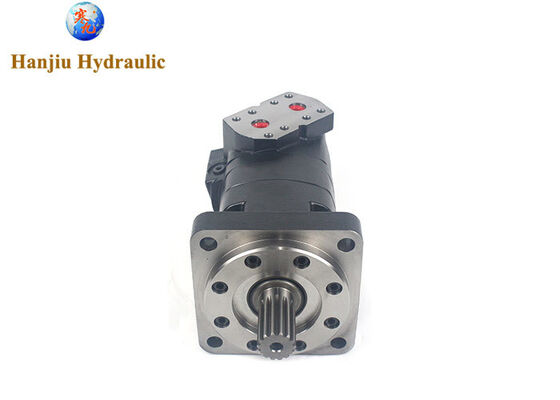

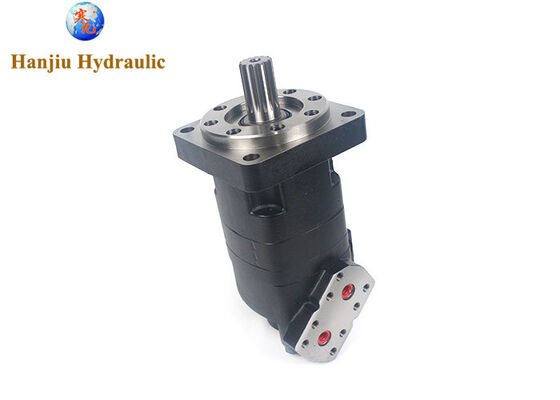

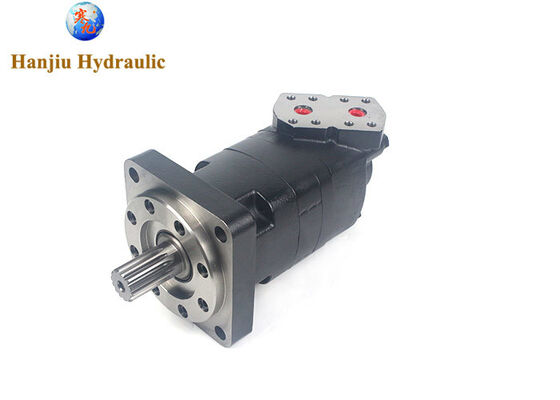

Large Image : 109-1450-006 Char-Lynn Eaton hydraulic orbital motor series 4000,LSHT gerotor motor

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU
Certification:	CE
Model Number:	BMK4 motor

Payment & Shipping Terms:

Minimum Order Quantity:	10pieces
Price:	Negotiable
Packaging Details:	2PCS IN ONE CARTON,800PCS IN 20'FCL
Delivery Time:	25-30DAYS
Payment Terms:	T/T,D/P,D/A,L/C
Supply Ability:	300000PCS PER YEAR

Contact Now

Detailed Product Description

Displacement:	246cc	Max.speed(rpm):	Cont.300rpm/int.450pm
Max.torque(N.m):	Cont.710N.m/int.1080N.m	Max.pressure Drop:	Cont.20Mpa/int.30Mpa
Oil Temperature:	Normal-35℃-80℃	Viscosity:	42-74mm2/s
Highlight:	Char-Lynn Eaton hydraulic orbital motor , LSHT gerotor motor series 4000 , low speed high torque hydraulic motor

109-1450-006 Char-Lynn Eaton hydraulic orbital motor series 4000,LSHT gerotor motor

HANJIU CODE BMK4-245cc

Displacement: 246.3 cm3/r [15.03 in3/r]

Mounting: standard, 4 bolt, 127.00 [5.000] pilot dia.14.27 [.562] dia. holes on 161.92 [6.375] dia. bolt circle. (sae c)

Shaft: 31.75 [1.250] dia. similar to sae flat root side fit, 14 tooth, 12/24 dp 30 deg. involute spline, 25.01 [.985] minimum full spline length

Ports: 19.05 [.750] 4 bolt split flange staggered ports standard pressure series

Flow: .4375-20 unf-2b sae o-ring port with check valve

Main specification

TYPE		BMK4 160	BMK4 200	BMK4 250	BMK4 315	BMK4 400	BMK4 500
Displacement(ml/r)		159.2	195.6	246.1	311.6	391.3	490.8
Max.speed(rpm)	cont.	560	440	300	234	188	155
Max.speed(rpm)	int.	670	535	450	351	282	232
Max.Pressure.Drop(Mpa)	cont.	20	20	20	20	20	20
	int.	30	30	30	30	30	27.5
	peak.	30	30	30	30	30	30
Max.Torque(N.m)	cont.	450	565	710	920	1160	1445
Max.Torque(N.m)	int.	680	855	1080	1325	1625	1880
Max.Flow(cont.)(L/min)	cont.	95	95	150	150	150	150
Max.Flow(cont.)(L/min)	int.	115	115	205	225	225	225
Weight(kg)		26.3	26.5	26.8	27.3	28	28.8

109-1450-006 Char-Lynn Eaton hydraulic orbital motor series 4000,LSHT gerotor motor

4000 series orbital motor diagram

orbital motor curve chart

BMK4 orbital motor specs

109 Series motor diagram

orbital motors for sale

4k orbital motor curve

orbital motor specs

eaton motor specs

109-1450-006 Char-Lynn Eaton hydraulic orbital motor series 4000,LSHT gerotor motor
