Low-Speed Gerotor charlynn 4k series orbit motor 109-1589-006,crusher hydraulic motor

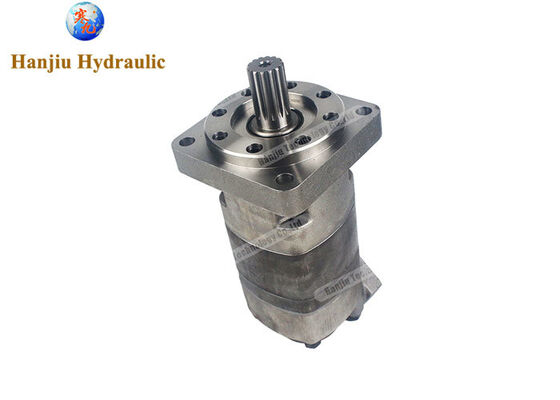

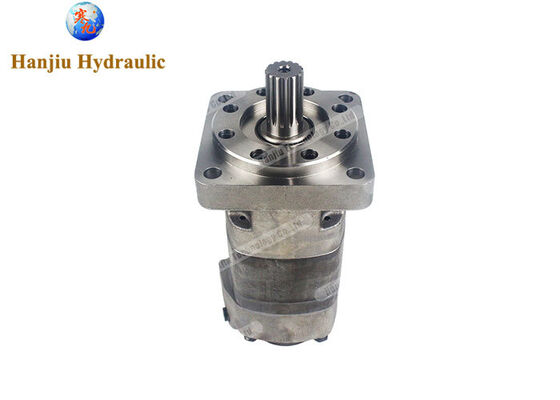

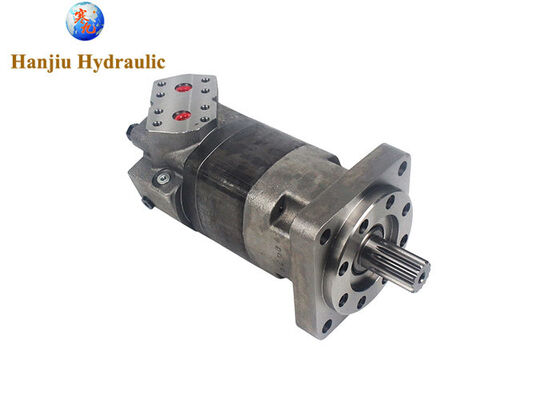

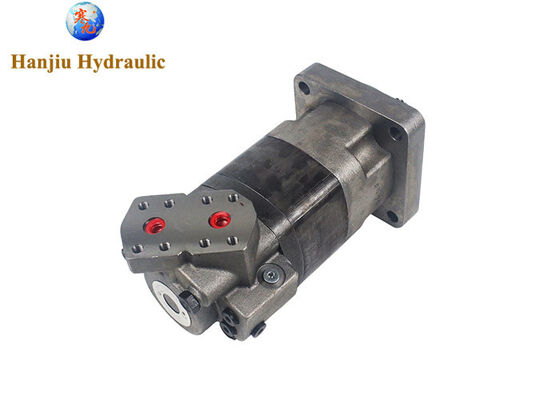

Large Image : Low-Speed Gerotor charlynn 4k series orbit motor 109-1589-006,crusher hydraulic motor

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU
Certification:	CE
Model Number:	BMK4 motor

Payment & Shipping Terms:

Minimum Order Quantity:	10pieces
Price:	Negotiable
Packaging Details:	2PCS IN ONE CARTON,800PCS IN 20'FCL
Delivery Time:	25-30DAYS
Payment Terms:	T/T,D/P,D/A,L/C
Supply Ability:	300000PCS PER YEAR

Contact Now

Detailed Product Description

Displacement:	400cc	Max.speed(rpm):	Cont.188rpm/int.282rpm
Max.torque(N.m):	Cont.1160N.m/int.1625N.m	Max.pressure Drop:	Cont.20Mpa/int.30Mpa
Oil Temperature:	Normal-35℃-80℃	Viscosity:	42-74mm2/s
Highlight:	Low-Speed Gerotor hydraulic motor , Charlynn 4K series orbit motor , Crusher hydraulic motor with warranty

Low-Speed Gerotor charlynn 4k series orbit motor 109-1589-006,crusher hydraulic motor

HANJIU CODE BMK4-400cc

displacement:492.6cc

Mounting flange:Standard, 4 Bolt; 127.00 [5.000] Pilot Dia 14.27 [.562] Dia.Holes On 161.92 [6.375] Dia. Bolt Circle.(SAE C)

Out put shaft:spline shaft

port type:19.05 [.750] 4 Bolt Split Flange Staggered Ports Standard Pressure Series

Main specification

TYPE		BMK4 160	BMK4 200	BMK4 250	BMK4 315	BMK4 400	BMK4 500
Displacement(ml/r)		159.2	195.6	246.1	311.6	391.3	490.8
Max.speed(rpm)	cont.	560	440	300	234	188	155
Max.speed(rpm)	int.	670	535	450	351	282	232
Max.Pressure.Drop(Mpa)	cont.	20	20	20	20	20	20
	int.	30	30	30	30	30	27.5
	peak.	30	30	30	30	30	30
Max.Torque(N.m)	cont.	450	565	710	920	1160	1445
Max.Torque(N.m)	int.	680	855	1080	1325	1625	1880
Max.Flow(cont.)(L/min)	cont.	95	95	150	150	150	150
Max.Flow(cont.)(L/min)	int.	115	115	205	225	225	225
Weight(kg)		26.3	26.5	26.8	27.3	28	28.8

Low-Speed Gerotor charlynn 4k series orbit motor 109-1589-006,crusher hydraulic motor

As a leading manufacturer of high-performance hydraulic motors, Hanjiu has always prioritized the user’s actual experience. Leveraging a mature R&D system, precision manufacturing processes, and rigorous end-to-end quality control standards, the company continuously iterates and upgrades the performance of its orbital hydraulic motors. All products undergo comprehensive real-world testing—including multiple speed and load conditions, as well as seal integrity and pressure resistance—before leaving the factory. This ensures that substandard products with unstable performance or high energy consumption are eliminated, guaranteeing that every motor shipped is capable of handling complex daily operating conditions. Unlike ordinary contract manufacturers, Hanjiu offers both standardized products and customized solutions tailored to specific operating conditions, complemented by 24/7 online technical support. We provide users with one-stop services—including product selection, installation and commissioning, troubleshooting, and routine maintenance guidance—to ensure the stable operation of equipment throughout its lifecycle. Thanks to reliable product quality, a comprehensive after-sales support system, and exceptional value for money, Hanjiu’s products are exported worldwide and have earned deep recognition from end-users and equipment manufacturers alike. If you are looking for hydraulic motors that are suitable for multiple operating conditions, energy-efficient, durable, and offer stable speed control, please visit Hanjiu’s official website to obtain a customized solution.

Low-Speed Gerotor charlynn 4k series orbit motor 109-1589-006,crusher hydraulic motor
