BMER-2-750-MS-B1 Hydraulic Orbital Motor with high pressure PARKER TG0750 Hydromotor

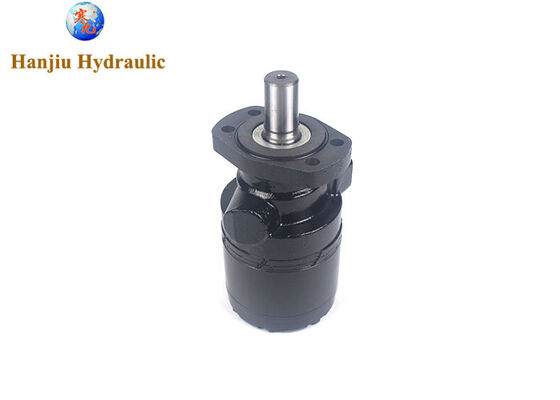

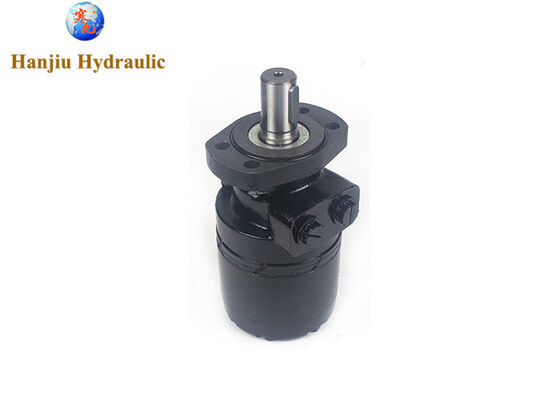

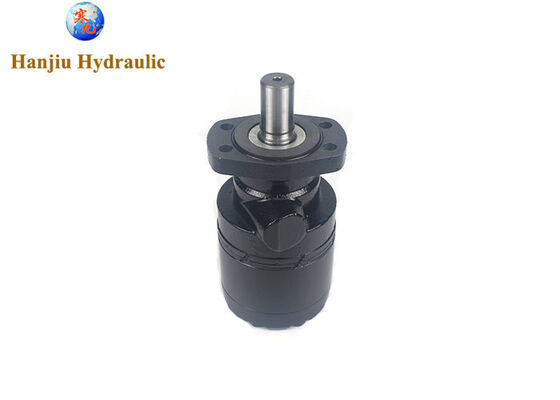

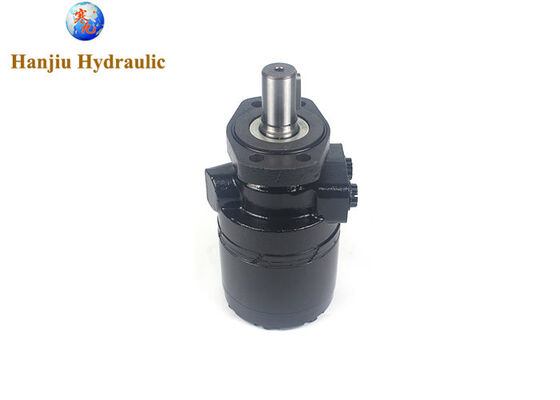

Large Image : BMER-2-750-MS-B1 Hydraulic Orbital Motor with high pressure PARKER TG0750 Hydromotor

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE, ISO9001
Model Number:	BMER-2-750-MS-B1

Payment & Shipping Terms:

Minimum Order Quantity:	10 Pieces
Price:	160 usd/pc
Packaging Details:	box, pallet
Delivery Time:	35 - 45 work days
Payment Terms:	T/T,Western Union
Supply Ability:	10000 pieces per year

Contact Now

Detailed Product Description

Product:	Low Speed High Torque Hydraulic Motor	Model No.:	BMER-2-750
Size:	750ml/r	Flange:	Magneto Mount 4-Holes
Shaft:	32MM Key Shaft	Rotation:	CCW
Port:	Offsite Ports	Material:	Cast Iron
Highlight:	Parker TG0750 hydraulic orbital motor , high torque hydraulic motor with warranty , high pressure hydraulic motor for industrial

BMER-2-750-MS-B1 Hydraulic Orbital Motor with high pressure PARKER TG0750 Hydromotor

BMER Series is a durable hydraulic motor with superior side load capacity, high pressure shaft seal and smooth low speed operation.

Product details

Product	Low Speed High Torque Hydraulic Motor
Model No.	BMER-2-750-MS-B1
Displacement	750ml/r
Flange	Magneto Mount 4-Holes
Shaft	ShaftØ32, Parallel key 10×8×36
Rotation	CCW
Port	G1/2

Technical Specifications

Type	BMER 125	BMER 160	BMER 200	BMER 230	BMER 250	BMER 300	BMER 350	BMER 375	BMER 475	BMER 540	BMER 750
Geometric displacement (cm3/rev.)	118	156	196	228	257	296	345	371	462	540	745
Max. speed (rpm) cont.	360	375	330	290	290	250	220	200	160	140	100
Max. speed (rpm) int.	490	470	425	365	350	315	270	240	195	170	120
Max. torque (N•m) cont.	325	eca450	530	625	700	810	905	990	1085	980	1050
Max. torque (N•m) int.	380	525	600	710	790	930	1035	1140	1180	1240	1180
Max. torque (N•m) peak	450	590	750	870	980	1120	1285	1360	1260	1380	1370
Max. output (kW) cont.	12.0	15.0	15.5	16.0	17.5	18.0	17.5	16.5	14.5	11.5	8.0
Max. output (kW) int.	14.0	17.5	18.0	19.0	20.0	21.0	20.0	19.0	16.5	10.0
Max. pressure drop (MPa) cont.	20.5	20.5	20.5	20.5	20.5	20.5	20.5	20.5	17.5	14	10.5
Max. pressure drop (MPa) int.	24	24	24	24	24	24	24	24	19	17.5	12
Max. pressure drop (MPa) peak	27.6	27.6	27.6	27.6	27.6	27.6	27.6	27.6	20.5	20.5	14
Max. flow (L/min) cont.	45	60	70	70	75	80	80	75	75	75	75
Max. flow (L/min) int.	60	75	85	85	90	95	95	90	90	90	90

As a professional manufacturer specializing in the R&D of hydraulic motors, HanJIU boasts an independent R&D and design team along with a comprehensive production and testing system. The company is dedicated to refining the core performance of its hydraulic motors. Thanks to their stable low-speed high-torque output and exceptional smoothness, HanJIU’s products are widely sold in both domestic and international markets and have earned recognition from numerous industry clients. HanJIU not only provides standardized, high-quality motor products but also offers 24/7 online technical support, delivering one-stop services including precise product selection, installation and commissioning, and troubleshooting. If you require hydraulic power components suitable for various low-speed, heavy-duty, and high-precision applications, please visit the HanJIU website to explore complete product specifications and customized solutions, and equip your equipment with stable, efficient, and durable high-quality hydraulic motors.
