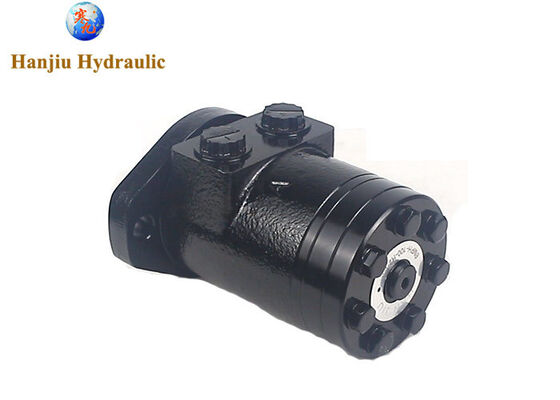

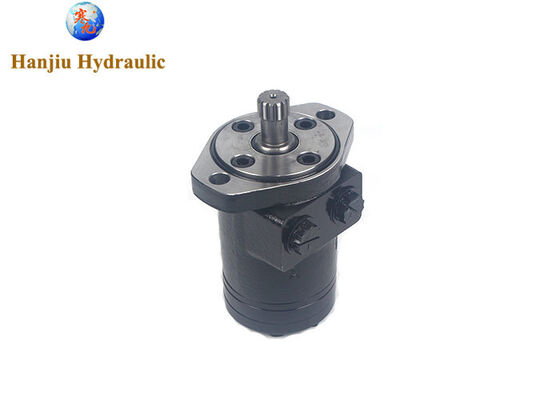

Hydraulic gerotor orbit motor BMPH-100-H2-I-S,2 holes flange, 13T spline shaft 7/8-14unf ports

Large Image : Hydraulic gerotor orbit motor BMPH-100-H2-I-S,2 holes flange, 13T spline shaft 7/8-14unf ports

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE
Model Number:	BMPH-100-H2-I-S

Payment & Shipping Terms:

Minimum Order Quantity:	10 Pieces
Price:	Negotiable
Packaging Details:	Carton Box
Supply Ability:	90000 Pieces One Year

Contact Now

Detailed Product Description

Features:	Low Speed High Torque	Product Name:	Hydraulic Geroler Motor
Material:	Cast Iron	Model Number:	BMPH-100-H2-I-S
Displacement:	100CC	Shaft:	13T Spline Shaft
Highlight:	Hydraulic gerotor orbit motor BMPH-100-H2-I-S , Orbit hydraulic motor 13T spline shaft , Hydraulic motor 2 holes flange

Hydraulic gerotor orbit motor BMPH-100-H2-I-S,2 holes flange, 13T spline shaft 7/8-14unf ports

► Product details

model type:BMPH-100-H2-I-S

displacement:100cc

flange:2-Ø13.5 Rhomb-flange , pilot Ø82.5×2.8

shaft: Shaft Ø22.22, splined tooth 13-DP16/32

port threads:7/8-14 O-ring ,7/16-20UNF

► Specification

Type		BMPH 36	BMPH 50	BMPH 80	BMPH 100	BMPH 125	BMPH 160	BMPH 200	BMPH 250	BMPH 315	BMPH 400	BMPH 500
Geometric displacement (cm3 /rev.)		36	51.7	77.7	96.2	120.2	157.2	194.5	240.3	314.5	389.5	486.5
Max. speed (rpm)	cont.	1500	1150	770	615	490	383	310	250	192	155	120
Max. speed (rpm)	int.	1650	1450	960	770	615	475	385	310	240	190	150
Max. torque (N·m)	cont.	55	100	146	182	236	302	360	380	375	360	385
	int.	76	128	186	227	290	370	440	460	555	525	560
	peak	96	148	218	264	360	434	540	550	650	680	680
Max. output (kW)	cont.	8	10	10	11	10	10	10	8.5	7	6	5
Max. output (kW)	int.	11.5	12	12	13	12	12	12	10.5	8.5	7	6
Max. pressure drop (MPa)	cont.	12.5	14	14	14	14	14	14	11	9	7	6
	int.	16.5	17.5	17.5	17.5	17.5	17.5	17.5	14	14	10.5	9
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	18	16	14	12
Max. flow (L/min)	cont.	55	60	60	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	60	75	75	75	75	75	75	75	75	75	75
Weight (kg)		5.6	5.6	5.7	5.9	6	6.2	6.4	7	6.9	7.4	8

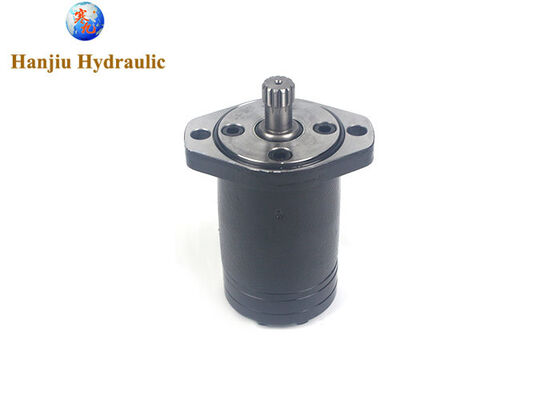

Hydraulic gerotor orbit motor BMPH-100-H2-I-S,2 holes flange, 13T spline shaft 7/8-14unf ports

OTHER TYPES, YOU CAN CHOOSE FROM THE ORDER CODE

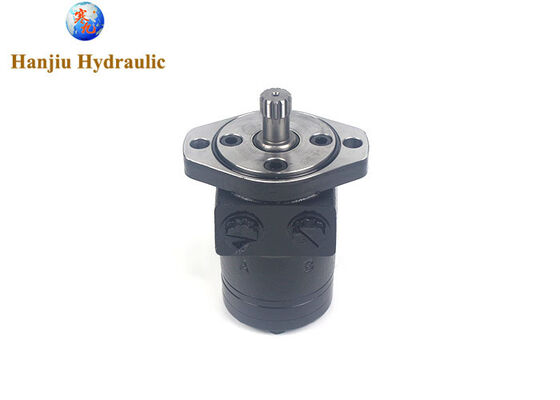

Hydraulic gerotor orbit motor BMPH-100-H2-I-S,2 holes flange, 13T spline shaft 7/8-14unf ports

Cost Savings and Lifecycle Analysis

Implementing HANJIU BMPH orbital motors and genuine spare parts delivers measurable economic benefits throughout the equipment lifecycle:

Acquisition cost reduction of 35% to 55% compared to original Eaton equipment, with no compromise in performance or service life

Complete seal kit replacement cost savings of 40% to 60%, with all kits including precision-matched seals, O-rings, and gaskets

Standard delivery lead times of 1 to 7 days globally, with 24-hour express dispatch for urgent requirements, minimizing equipment downtime

Extended motor service life achieved through consistent availability of genuine replacement parts, reducing total cost of ownership by 25% to 35% over the equipment lifecycle

Free technical consultation and troubleshooting support provided by qualified hydraulic engineers with average response time under 2 hours
