151F0610 OMSW 400 White Hydraulic orbital motor Displacement 400 cm3

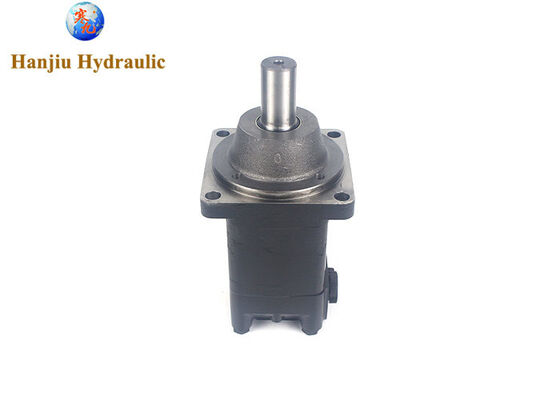

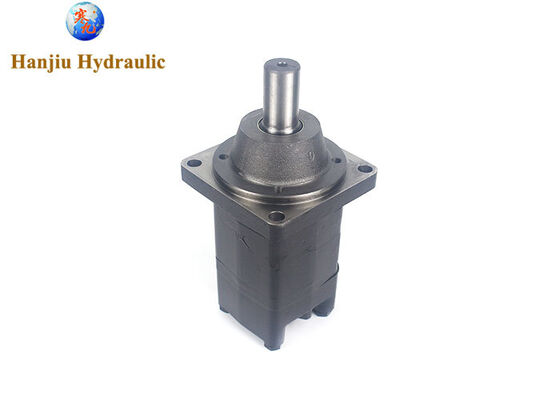

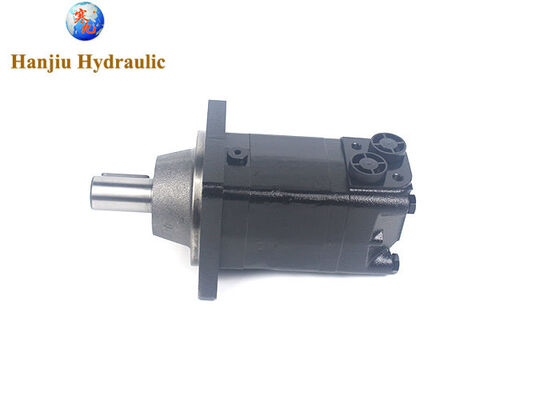

Large Image : 151F0610 OMSW 400 White Hydraulic orbital motor Displacement 400 cm3

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU CHINA
Certification:	CE
Model Number:	BMSY-400-W-B-D

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	Contact the seller to ask
Packaging Details:	Box, Pallet
Delivery Time:	25 - 35 work days
Payment Terms:	L/C,D/A,T/T,Western Union,Payple
Supply Ability:	100000 pieces per year

Contact Now

Detailed Product Description

Item:	Low Speed High Torque Motor	Application:	Sweepers, Platforms
Flange:	Wheel Flange	Shaft:	32mm Straight Key Shaft
Materia:	Cast Iron	Warranty:	1 Year
Highlight:	white hydraulic orbital motor , 400 cm3 displacement hydraulic motor , low speed high torque motor

151F0610 OMSW 400 White Hydraulic orbital motor Displacement 400 cm3

Product details:

type code BMSY-400-W-B-D

Displacement: 394cc
Maximum Pressure: 2,320 PSI continuous / 2,563 PSI intermittent.
Max Continuous Torque: ~7,786 in-lbs.
Speed: 185 RPM continuous / 225 RPM intermittent.
Flow Rate: 19.8 GPM continuous
Flange:wheel flange
Shaft:32mm key shaft
Ports: side ports G1/2
Drain ports:G1/4

BMSY Main Specifications:

Type		BMSY 80	BMSY 100	BMSY 125	BMSY 160	BMSY 200	BMSY 250	BMSY 315	BMSY 400	BMSY 475
Geometric displacement (cm3 /rev.)		80.6	100.8	125	157.2	200	252	314.5	370	475
Max. speed (rpm)	cont.	800	748	600	470	375	300	240	185	155
Max. speed (rpm)	int.	988	900	720	560	450	360	280	225	185
Max. torque (N·m)	cont.	225	290	365	485	586	708	880	880	910
Max. torque (N·m)	int.	305	390	480	590	705	860	1000	980	990
Max. output (kW)	cont.	16	18	18	18.1	18.1	18	17	11	9
Max. output (kW)	int.	20	22	23	25	24	23.8	20.2	12	11
Max. pressure drop (MPa)	cont.	20.5	20.5	20.5	21	21	20	20	16	14
	int.	27.5	27.5	27.5	26	25	25	24	19	15
	peak	29.5	29.5	29.5	28	27	27	26	21	17.5
Max. flow (L/min)	cont.	65	75	75	75	75	75	75	75	75
Max. flow (L/min)	int.	80	90	90	90	90	90	90	90	90
Max. inlet pressure (MPa)	cont.	25	25	25	25	25	25	25	25	25
Max. inlet pressure (MPa)	int.	30	30	30	30	30	30	30	30	30
Weight (kg)		9.8	10	10.3	10.7	11.1	11.6	12.3	13.2	14.3

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute

151F0610 OMSW 400 White Hydraulic orbital motor Displacement 400 cm3

Contact a hydraulics specialist or HANJIU . Solve all your hydraulic motor problems

151F0610 OMSW 400 White Hydraulic orbital motor Displacement 400 cm3

The HANJIU OMS series heavy-duty orbital hydraulic motor represents the pinnacle of gerotor-based power transmission technology, engineered for applications demanding maximum torque output, superior bearing capacity, and exceptional durability under the most extreme operating conditions. Featuring an advanced Geroler gear set with disc-type distribution valve, the OMS series delivers hydraulic power to the largest and most demanding mobile and stationary equipment worldwide. This white paper presents the complete HANJIU OMS product line encompassing nine displacement variants from OMS 80 through OMS 500, with comprehensive technical specifications, cross-reference data, and aftermarket support information.

Shijiazhuang Hanjiu Technology Co., Ltd. has engineered its OMS series orbital motors to achieve complete dimensional and performance interchangeability with the Danfoss OMS series, the globally recognized benchmark for heavy-duty hydraulic power transmission. With geometric displacements ranging from 80.5 cm³ to 476.5 cm³, maximum continuous pressure drop ratings of 175 bar (up to 205 bar on select models), and peak torque output reaching 1,091 Nm, HANJIU OMS motors provide a high-performance, cost-effective solution for OEM equipment manufacturers, hydraulic system integrators, and aftermarket service providers in construction, mining, forestry, marine, and heavy industrial sectors worldwide.

Keywords: HANJIU OMS orbital motor, heavy duty hydraulic motor, Danfoss OMS compatible, OMS 80 OMS 100 OMS 125 OMS 160 OMS 200 OMS 250 OMS 315 OMS 400 OMS 500, geroler orbital motor, disc valve hydraulic motor, low speed high torque hydraulic motor, construction machinery hydraulic motor, mining equipment hydraulic motor, hydraulic motor spare parts, orbital motor seal kit
