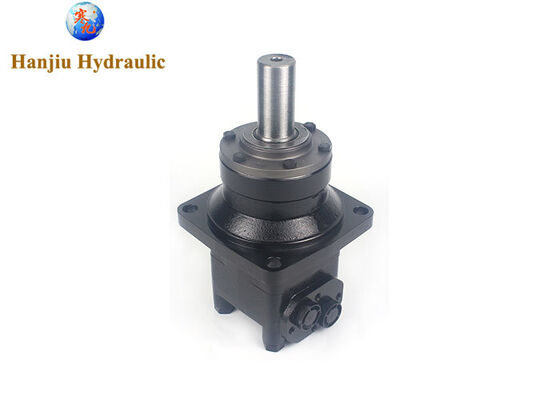

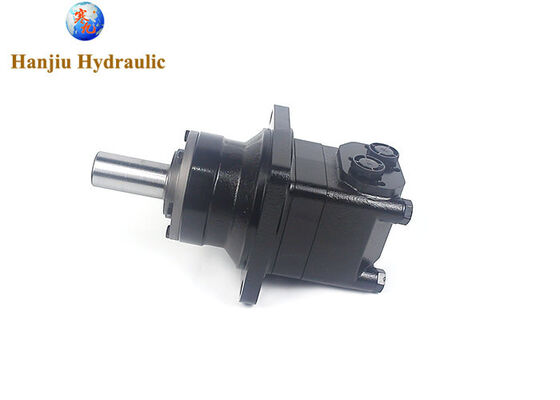

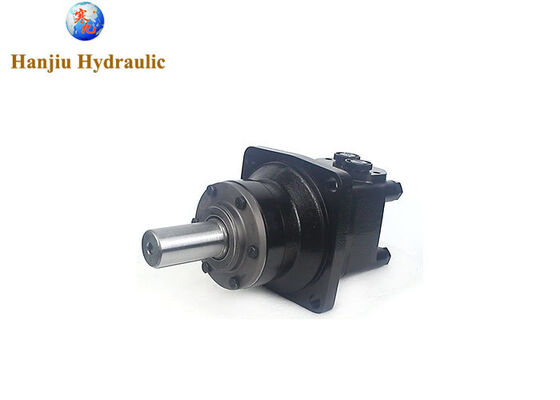

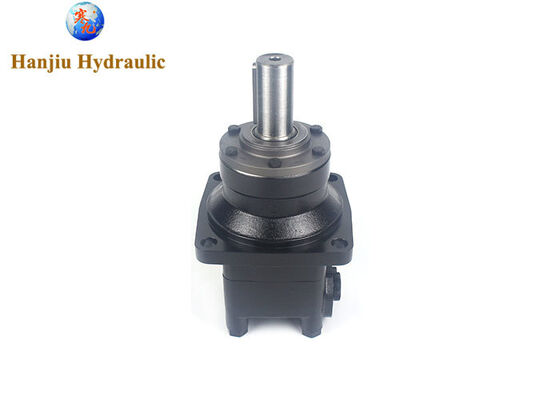

151B3029 OMTW 500 Danfoss hydraulic orbital motor 500 cm3 wheel type with 40 mm cylindrical shaft

151B3029 OMTW 500 Danfoss hydraulic orbital motor 500 cm3 wheel type with 40 mm cylindrical shaft

the details as below

hanjiu code :BMT-500-W-M-D=151B3029

Specification:

Key Structural Components

The HANJIU OMT series orbital motor comprises several precision-engineered subassemblies that collectively determine performance, reliability, and service life:

• Gerotor/Geroler Gear Set:The heart of the motor, machined to tight tolerances to minimize internal leakage while maintaining efficient lubrication film formation between contacting surfaces.

• Disc Valve Distributor:Precision-ground flat disc with kidney-shaped ports that align with Gerotor chamber openings, ensuring optimal timing of fluid delivery and exhaust.

• Tapered Roller Bearings:Front and rear tapered roller bearings provide exceptional radial and axial load capacity, accommodating significant external shaft loads without premature wear.

• High-Pressure Shaft Seal:Dual-lip seal design with dust exclusion lip maintains system integrity under high return-line pressures, eliminating the need for a separate drain line in most installations.

• Check Valve Assembly:Integrated anti-cavitation check valves protect the motor from damage during deceleration and prevent shaft seal over-pressurization.

• Four-Bolt Mounting Flange:Standard square flange with pilot diameter and threaded mounting holes ensures compatibility with industry-standard attachment configurations.

Applications:

• Trenchers
• Skid Steer Attachments
• Golf Course Maintenance Equipment
• Sweepers
• Wood Chippers
• Conveyers
• Combine Harvesters
• Winches
• Augers
• Portable Irrigation Systems
• Post Hole Augers
• Potato, Tomato, Nut, Leafy Vegetable, Sugar, Cotton, Coffee and Grape Specialty Harvesters
• Combine Header Drives
• Sprayers
• Forestry
• Snow Removal
• Salt and Sand Spreaders
• Pipe Spinners
