109-1589-006 Hydraulic Orbital Motor | 4000 Series Geroler Motor | Replacement  Sourcing Solution

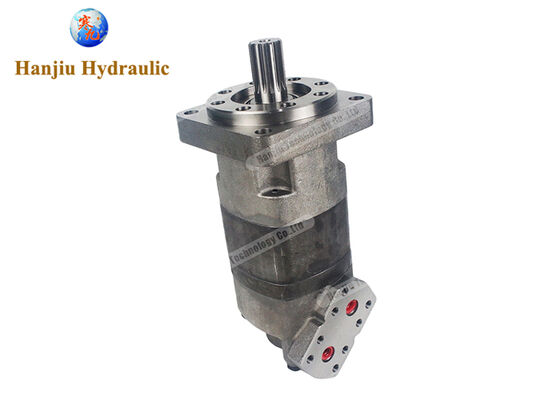

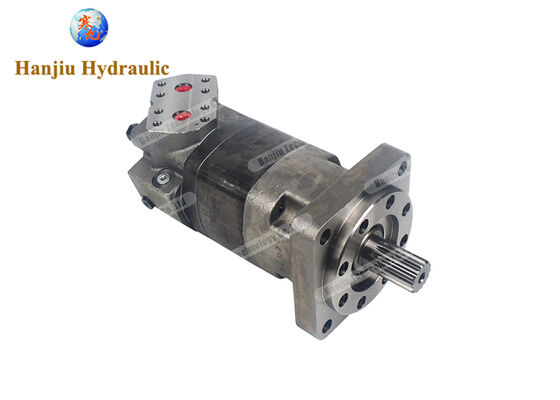

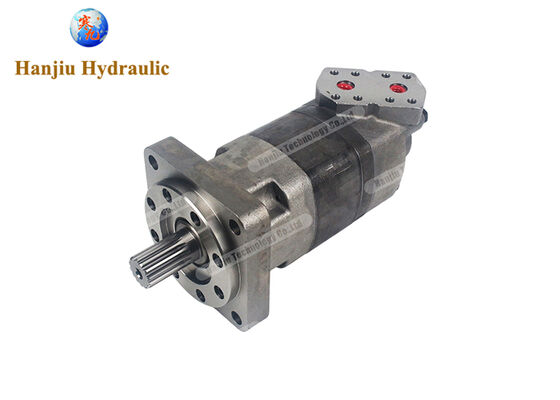

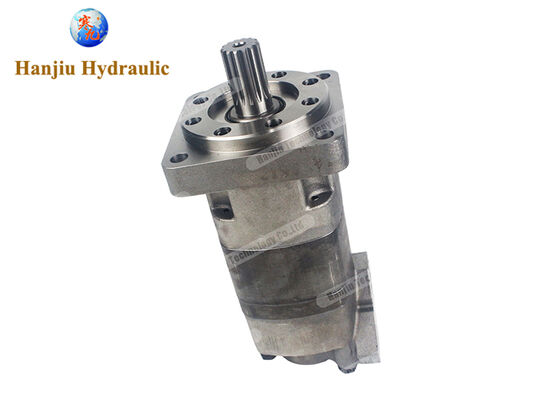

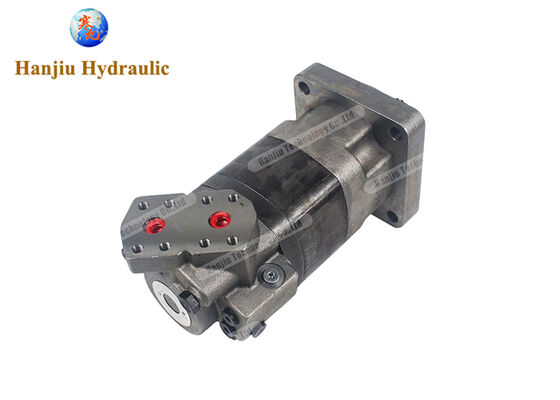

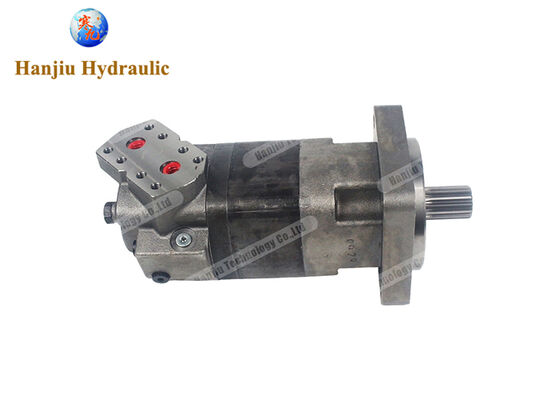

The 109-1589-006 is a Danfoss Char-Lynn 4000 Series orbital hydraulic motor, featuring a disc valve with valve drive and Geroler gear set. It has a geometric displacement of 492.6 cm³/rev (30.06 in³/rev), a 4-bolt SAE C mounting configuration, and a splined output shaft.

This hydraulic motor is suitable for low-speed, high-torque hydraulic drive applications and can be marketed for hydraulic motor replacement, aftermarket spare parts, equipment repair, and overseas B2B procurement. Typical applications include mowing equipment, snow-removal equipment, sprayers, trenchers, and wood-processing machinery.

3 Key Selling Points

1. 109-1589-006 Replacement Solution | For the Global Hydraulic Motor Aftermarket

The 109-1589-006 can be supplied as a Replacement, Compatible Replacement, or Aftermarket solution for corresponding 4000 Series orbital hydraulic motor applications.

For overseas B2B customers looking for an alternative hydraulic motor sourcing channel, equipment repair solution, or replacement spare part, this model is suitable for hydraulic motor maintenance and aftermarket procurement.

Recommended search keywords:

109-1589-006 Replacement
109-1589-006 Hydraulic Motor
109-1589-006 Orbital Motor
109-1589-006 Geroler Motor
109-1589-006 Char-Lynn Motor
109-1589-006 Aftermarket Motor
109-1589-006 Compatible Replacement
109-1589-006 Hydraulic Motor Replacement

2. 492.6 cm³/rev Displacement | Low-Speed, High-Torque Hydraulic Drive

The 109-1589-006 features a 492.6 cm³/rev displacement and Geroler motor design, making it suitable for applications requiring controlled low-speed rotation and high hydraulic torque.

Key specifications include:

• Displacement: 492.6 cm³/rev

• Displacement: 30.06 in³/rev

• Motor Series: 4000 Series

• Motor Size: 495

• Motor Type: Standard

• Valve System: Disc Valve with Valve Drive

• Geroler Type: Standard

• Mounting: 4-Bolt Square, SAE C

• Output Shaft: Splined

• Main Port: 3/4-inch split-flange configuration

• Maximum Speed: 191 rpm

• Intermittent Pressure: Up to 170 bar

• Rated Torque: Approximately 945 Nm

3. 4-Bolt SAE C Mounting + Splined Shaft | Convenient for Equipment Replacement

The 109-1589-006 uses a 4-bolt SAE C mounting configuration with a splined output shaft, providing a clearly defined mechanical interface for compatible hydraulic equipment.

Key mechanical specifications include:

• Pilot Diameter: 127 mm

• Bolt Circle Diameter: 161.9 mm

• Mounting Hole Diameter: 14.3 mm

• Shaft Type: Splined

• Shaft Size: 1-1/4 inch

• Shaft Spline: 14-tooth

Suitable B2B procurement applications include:

• Hydraulic Motor Replacement

• Orbital Motor Replacement

• Geroler Motor Sourcing

• Char-Lynn Motor Replacement

• Aftermarket Hydraulic Parts

• Agricultural Machinery Repair

• Construction Equipment Maintenance

• Mowing Equipment

• Snow Removal Equipment

• Sprayer Equipment

• Trencher Equipment

• Wood Processing Machinery

Brand Replacement and Compatibility Information

Product Model: 109-1589-006

Model Code: M04301AF03AD02000000000000000F

Product Name: 4000 Series 495 Orbital Hydraulic Motor

Product Type: Orbital Hydraulic Motor / Geroler Motor / Low-Speed High-Torque Hydraulic Motor

Displacement: 492.6 cm³/rev (30.06 in³/rev)

Series: 4000 Series

Motor Size: 495

Mounting: 4-Bolt Square / SAE C

Output Shaft: Splined

Brand Reference: Danfoss / Char-Lynn

Procurement Type: Replacement / Compatible Replacement / Aftermarket

Recommended B2B search keywords:

109-1589-006 Replacement
109-1589-006 Compatible Replacement
109-1589-006 Aftermarket Hydraulic Motor
109-1589-006 Orbital Motor
109-1589-006 Geroler Motor
109-1589-006 4000 Series Motor
Char-Lynn 109-1589-006 Replacement
4000 Series 495 Hydraulic Motor
492.6 cm³/rev Hydraulic Motor
30.06 in³/rev Orbital Motor

Application Compatibility

Mowing Equipment

Suitable for compatible hydraulic drive systems used in mowing and vegetation-management equipment requiring low-speed, high-torque hydraulic power.

Snow Removal Equipment

Suitable for compatible snow-removal machinery and hydraulic drive systems.

Agricultural Machinery

Suitable for agricultural machinery requiring orbital hydraulic motors for auxiliary or drive functions, subject to system pressure, flow, mounting, and shaft requirements.

Sprayer Equipment

Suitable for compatible hydraulic sprayer systems where a high-displacement orbital motor is required.

Trenchers

Suitable for compatible trencher hydraulic drive applications requiring low-speed, high-torque output.

Wood Processing Equipment

Suitable for compatible wood-processing machinery and hydraulic drive systems.

Compatibility Verification

Before purchasing a 109-1589-006 replacement hydraulic motor, it is recommended to verify:

• Complete original motor part number

• Original motor nameplate

• Complete model code

• Equipment brand

• Equipment model

• Equipment serial number

• Displacement

• Mounting flange

• Pilot diameter

• Bolt pattern

• Shaft type

• Shaft dimensions

• Hydraulic port configuration

• Case drain configuration

• Rotation requirements

• Working pressure

• Required flow rate

• Required output torque

• Hydraulic circuit configuration

If the customer can provide the original motor nameplate, complete model code, equipment model, part number, or product photos, further replacement compatibility can be verified.

Compatibility Note: Actual replacement suitability depends on the complete motor configuration, hydraulic pressure, flow rate, mounting dimensions, shaft specifications, port configuration, and equipment hydraulic circuit. Direct interchangeability should not be determined solely by the “109-1589-006” part number or the 4000 Series designation.
