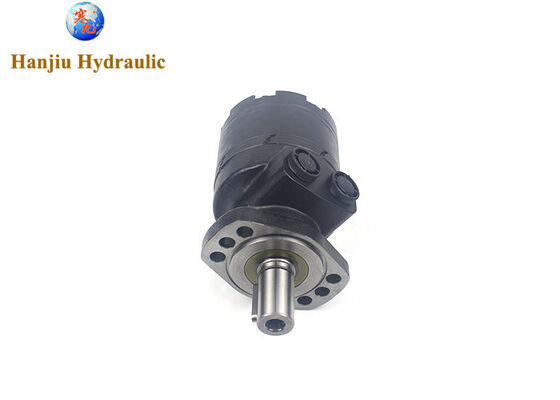

RE 520 Series Motor, White Hydraulic Motors 520470A5107AAAAA Medium Duty Motor

Large Image : RE 520 Series Motor, White Hydraulic Motors 520470A5107AAAAA Medium Duty Motor

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE, ISO9001
Model Number:	BMER-2-475-FS-G2

Payment & Shipping Terms:

Minimum Order Quantity:	10 Pieces
Price:	160 usd/pc
Packaging Details:	box, pallet
Delivery Time:	35 - 45 work days
Payment Terms:	T/T,Western Union
Supply Ability:	10000 pieces per year

Contact Now

Detailed Product Description

Product:	Low Speed High Torque Hydraulic Motor	Model No.:	BMER-2-475
Size:	475ml/r	Flange:	Magneto Mount 6-Holes
Shaft:	31.75MM Key Shaft	Rotation:	CCW
Port:	Aligned Ports,7/8-14UNF	Material:	Cast Iron
Highlight:	white hydraulic motor medium duty , RE 520 series hydraulic motor , low speed high torque motor

RE 520 Series Motor, White Hydraulic Motors 520470A5107AAAAA Medium Duty Motor

The RE 520 Series Motor from Hanjiu technology is a medium-duty orbital hydraulic motor designed for high torque at low speeds

the similar type is BMER motor

Product details

Product	Low Speed High Torque Hydraulic Motor
Model No.	BMER-2-475-FS-G=520470A5107AAAAA
Displacement	475ml/r
Flange	Magneto Mount 6-Holes
Shaft	1-1/4” Straight
Rotation	CCW
Port	SAE A Mount,Aligned Ports, 7/8-14 UNF

Technical Specifications

Type	BMER 125	BMER 160	BMER 200	BMER 230	BMER 250	BMER 300	BMER 350	BMER 375	BMER 475	BMER 540	BMER 750
Geometric displacement (cm3/rev.)	118	156	196	228	257	296	345	371	462	540	745
Max. speed (rpm) cont.	360	375	330	290	290	250	220	200	160	140	100
Max. speed (rpm) int.	490	470	425	365	350	315	270	240	195	170	120
Max. torque (N•m) cont.	325	eca450	530	625	700	810	905	990	1085	980	1050
Max. torque (N•m) int.	380	525	600	710	790	930	1035	1140	1180	1240	1180
Max. torque (N•m) peak	450	590	750	870	980	1120	1285	1360	1260	1380	1370
Max. output (kW) cont.	12.0	15.0	15.5	16.0	17.5	18.0	17.5	16.5	14.5	11.5	8.0
Max. output (kW) int.	14.0	17.5	18.0	19.0	20.0	21.0	20.0	19.0	16.5	10.0
Max. pressure drop (MPa) cont.	20.5	20.5	20.5	20.5	20.5	20.5	20.5	20.5	17.5	14	10.5
Max. pressure drop (MPa) int.	24	24	24	24	24	24	24	24	19	17.5	12
Max. pressure drop (MPa) peak	27.6	27.6	27.6	27.6	27.6	27.6	27.6	27.6	20.5	20.5	14
Max. flow (L/min) cont.	45	60	70	70	75	80	80	75	75	75	75
Max. flow (L/min) int.	60	75	85	85	90	95	95	90	90	90	90

Common Applications

Medium-duty wheel drives

Grapple heads

Feed rollers

Broom and sweep drives

Other types

RE520 – 520300A5107AAAAA – 300cc – Cylindrical 1-1/4″ Shaft – SAE A 6-Hole
RE520 – 520300A5109AAAAA – 300cc – Splined 1″ 14T Shaft – SAE A 6-Hole
RE520 – 520300W3107AAAAA – 300cc – Cylindrical 1-1/4″ Shaft – Wheel Mount
RE520 – 520300W3125AAAAA – 300cc – Tapered 1-1/4″ 1:8 Shaft – Wheel Mount
