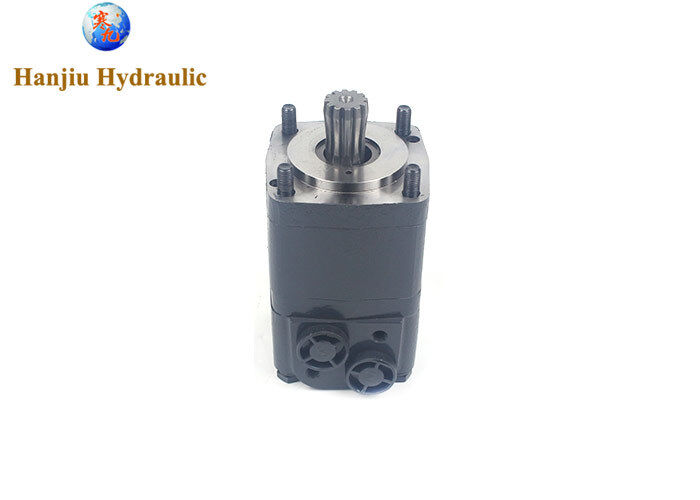

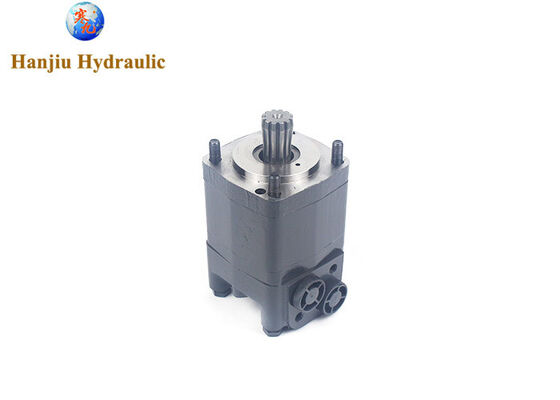

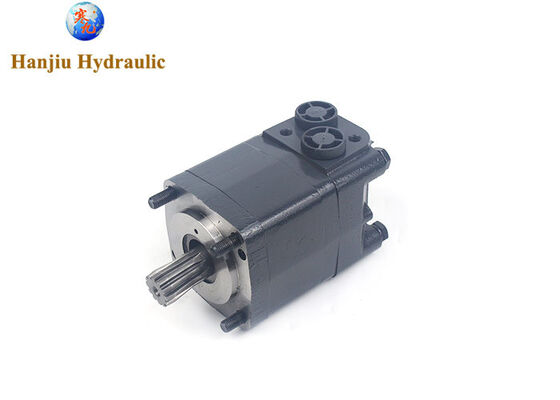

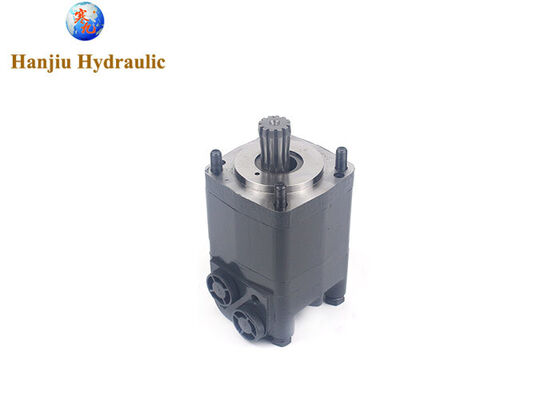

151F0584 OMSU 315 HYDRAULIC MOTOR ULTRA SHORT MOTOR

151F0584 OMSU 315 HYDRAULIC MOTOR ULTRA SHORT MOTOR

Large Image :  151F0584 OMSU 315 HYDRAULIC MOTOR ULTRA SHORT MOTOR

Product Details:
Place of Origin: CHINA
Brand Name: HANJIU CHINA
Certification: CE
Model Number: BMSYU-315
Payment & Shipping Terms:
Minimum Order Quantity: 100 Pieces
Price: Contact the seller to ask
Packaging Details: Box, Pallet
Delivery Time: 25 - 35 work days
Payment Terms: L/C,D/A,T/T,Western Union,Payple
Supply Ability: 100000 pieces per year
Detailed Product Description
Item: Low Speed High Torque Motor Application: Drilling Machines, Lawn Machines
Flange: Ultra Short Flange Shaft: Spline Shaft
Materia: Cast Iron Warranty: 12 Months
Highlight:

OMSU 315 hydraulic motor

,

ultra short hydraulic motor

,

low speed high torque motor


151F0584 OMSU 315 HYDRAULIC MOTOR ULTRA SHORT MOTOR


Product details:

type code BMSYU-315-U-D =151F0584

  • ultra-short version of the OMS motor
  • side ports G1/2"
  • drain line ø5mm on the face side
  • disc valve motor
  • M+S MS series


BMSY  Main Specifications:


Type BMSY
80
BMSY
100
BMSY
125
BMSY
160
BMSY
200
BMSY
250
BMSY
315
BMSY
400

BMSY

475

Geometric displacement
(cm3 /rev.)
80.6 100.8 125 157.2 200 252 314.5 370 475
Max. speed (rpm) cont. 800 748 600 470 375 300 240 185 155
int. 988 900 720 560 450 360 280 225 185
Max. torque (N·m) cont. 225 290 365 485 586 708 880 880 910
int. 305 390 480 590 705 860 1000 980 990
Max. output (kW) cont. 16 18 18 18.1 18.1 18 17 11 9
int. 20 22 23 25 24 23.8 20.2 12 11
Max. pressure drop (MPa) cont. 20.5 20.5 20.5 21 21 20 20 16 14
int. 27.5 27.5 27.5 26 25 25 24 19 15
peak 29.5 29.5 29.5 28 27 27 26 21 17.5
Max. flow (L/min) cont. 65 75 75 75 75 75 75 75 75
int. 80 90 90 90 90 90 90 90 90
Max. inlet pressure (MPa) cont. 25 25 25 25 25 25 25 25 25
int. 30 30 30 30 30 30 30 30 30
Weight (kg) 9.8 10 10.3 10.7 11.1 11.6 12.3 13.2 14.3

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute


PMSU-080 MSU080 151F0578
EPMSU-100 MSU100 151F0579
EPMSU-125 MSU125 151F0580
EPMSU-160 MSU160 151F0581
EPMSU-200 MSU200 151F0582
EPMSU-250 MSU250 151F0583
EPMSU-315 MSU315
EPMSU-400 MSU400
EPMSU-475 MSU475
EPMSU-525 MSU525
EPMSU-565 MSU565



151F0584 OMSU 315 HYDRAULIC MOTOR ULTRA SHORT MOTOR


151F0584 OMSU 315 HYDRAULIC MOTOR ULTRA SHORT MOTOR

Contact a hydraulics specialist or HANJIU . Solve all your hydraulic motor problems
