Hydraulic Motor M+S MS80CO,151F2200 equivalent BMSY-80-E4-G-SU orbit motor

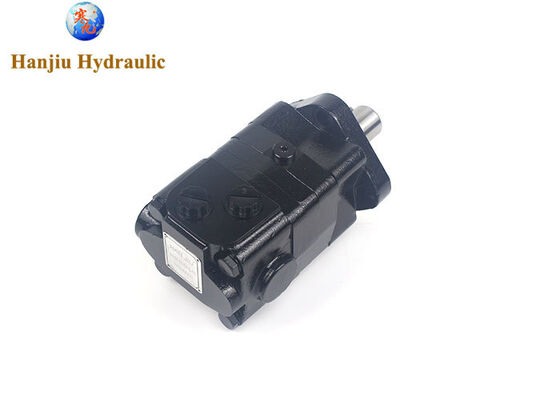

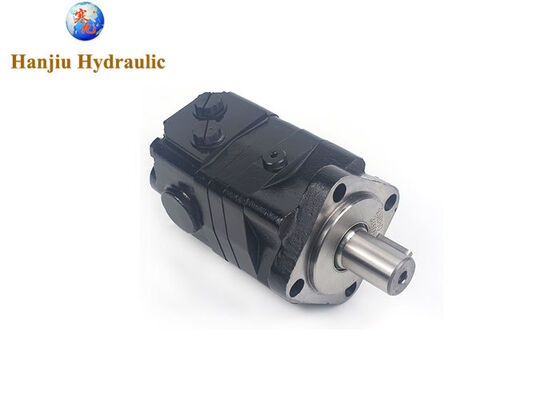

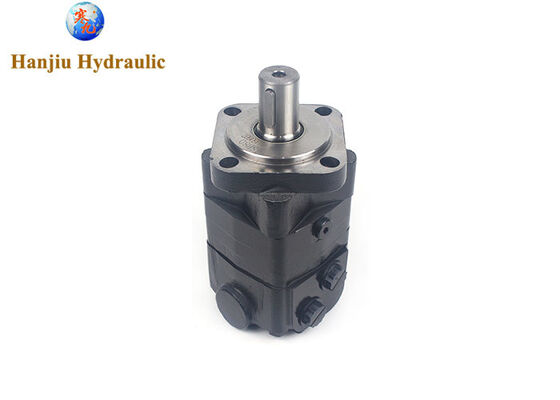

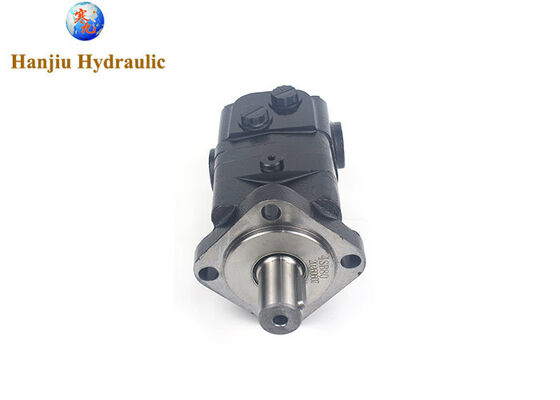

Large Image : Hydraulic Motor M+S MS80CO,151F2200 equivalent BMSY-80-E4-G-SU orbit motor

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU CHINA
Certification:	CE
Model Number:	BMSY-80-E4-G-SU

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	Contact the seller to ask
Packaging Details:	Box, Pallet
Delivery Time:	25 - 35 work days
Payment Terms:	L/C,D/A,T/T,Western Union,Payple
Supply Ability:	100000 pieces per year

Contact Now

Detailed Product Description

Item:	Low Speed High Torque Motor	Application:	Road Building Machines
Flange:	Square Flange	Shaft:	31.75mm Straight Key Shaft
Materia:	Cast Iron	Warranty:	1 Year
Highlight:	Hydraulic Motor M+S MS80CO , Low Speed High Torque Hydraulic Motor , BMSY-80-E4-G-SU orbit motor

Hydraulic Motor M+S MS80CO,151F2200 equivalent BMSY-80-E4-G-SU orbit motor

Product details:

type code BMSY-80-E4-G-SU, Matching M+S MS80CO, 151F2200

This motor is characterised by its high quality and its reasonable price.

This product’s features are as follows:
- hydraulic motor MS80CO by M+S
- displacement: 80 ccm/REV
- ports: G 1/2’’
- shaft: Ø 1 1/4‘‘ cylindrical with key 5/16‘‘ x 5/16‘‘ x 1 1/4‘‘
- SAE A-4 flange 4-hole
- internal check valve
- usage without drain line possible
- OEM quality, made in Europe
- optimised for small spaces

BMSY Main Specifications:

Type		BMSY 80	BMSY 100	BMSY 125	BMSY 160	BMSY 200	BMSY 250	BMSY 315	BMSY 400	BMSY 475
Geometric displacement (cm3 /rev.)		80.6	100.8	125	157.2	200	252	314.5	370	475
Max. speed (rpm)	cont.	800	748	600	470	375	300	240	185	155
Max. speed (rpm)	int.	988	900	720	560	450	360	280	225	185
Max. torque (N·m)	cont.	225	290	365	485	586	708	880	880	910
Max. torque (N·m)	int.	305	390	480	590	705	860	1000	980	990
Max. output (kW)	cont.	16	18	18	18.1	18.1	18	17	11	9
Max. output (kW)	int.	20	22	23	25	24	23.8	20.2	12	11
Max. pressure drop (MPa)	cont.	20.5	20.5	20.5	21	21	20	20	16	14
	int.	27.5	27.5	27.5	26	25	25	24	19	15
	peak	29.5	29.5	29.5	28	27	27	26	21	17.5
Max. flow (L/min)	cont.	65	75	75	75	75	75	75	75	75
Max. flow (L/min)	int.	80	90	90	90	90	90	90	90	90
Max. inlet pressure (MPa)	cont.	25	25	25	25	25	25	25	25	25
Max. inlet pressure (MPa)	int.	30	30	30	30	30	30	30	30	30
Weight (kg)		9.8	10	10.3	10.7	11.1	11.6	12.3	13.2	14.3

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute

Hydraulic Motor M+S MS80CO,151F2200 equivalent BMSY-80-E4-G-SU orbit motor

Contact a hydraulics specialist or HANJIU . Solve all your hydraulic motor problems

Hydraulic Motor M+S MS80CO,151F2200 equivalent BMSY-80-E4-G-SU orbit motor

All our hydraulic products are new, unused and in OEM quality (except when explicitly declared otherwise). Should a particular item not be in stock or not be represented here, please don’t hesitate to contact us. We will immediately try to find an appropriate solution pertaining to your given specifications. Moreover, we are constantly expanding our product range to offer you a wide variety of hydraulic components at reasonable prices. HANJIU hydraulics – always an excellent choice at low prices!
