BMSY100 hydraulic low speed high torque wheel motor with crossover relief valve

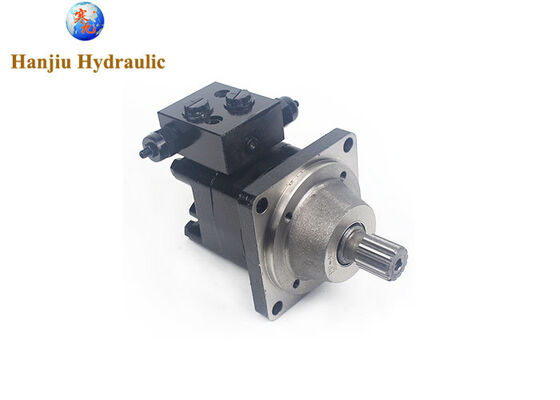

Large Image : BMSY100 hydraulic low speed high torque wheel motor with crossover relief valve

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU CHINA
Certification:	CE
Model Number:	BMSY-100+FYSD

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	Contact the seller to ask
Packaging Details:	Box, Pallet
Delivery Time:	25 - 35 work days
Payment Terms:	L/C,D/A,T/T,Western Union,Payple
Supply Ability:	100000 pieces per year

Contact Now

Detailed Product Description

Item:	Low Speed High Torque Motor	Application:	Road Building Machines
Flange:	Wheel Flange	Shaft:	14T Shaft
Materia:	Cast Iron	Warranty:	1 Year
Highlight:	hydraulic wheel motor with crossover relief valve , low speed high torque hydraulic motor , BMSY100 hydraulic wheel motor

BMSY100 hydraulic low speed high torque wheel motor with crossover relief valve

Product details:

type code BMSY-100-W-FE-S& FYSD-15-S

details:

displacement:100cc

flange: wheel flange

shaft size:Shaft Ø31.75 ,splined key 14-DP12/24

port size:7/8-14UNF

FYSD valve

flow rate:60liters

pressure range:15Mpa

BMSY Main Specifications:

Type		BMSY 80	BMSY 100	BMSY 125	BMSY 160	BMSY 200	BMSY 250	BMSY 315	BMSY 400	BMSY 475
Geometric displacement (cm3 /rev.)		80.6	100.8	125	157.2	200	252	314.5	370	475
Max. speed (rpm)	cont.	800	748	600	470	375	300	240	185	155
Max. speed (rpm)	int.	988	900	720	560	450	360	280	225	185
Max. torque (N·m)	cont.	225	290	365	485	586	708	880	880	910
Max. torque (N·m)	int.	305	390	480	590	705	860	1000	980	990
Max. output (kW)	cont.	16	18	18	18.1	18.1	18	17	11	9
Max. output (kW)	int.	20	22	23	25	24	23.8	20.2	12	11
Max. pressure drop (MPa)	cont.	20.5	20.5	20.5	21	21	20	20	16	14
	int.	27.5	27.5	27.5	26	25	25	24	19	15
	peak	29.5	29.5	29.5	28	27	27	26	21	17.5
Max. flow (L/min)	cont.	65	75	75	75	75	75	75	75	75
Max. flow (L/min)	int.	80	90	90	90	90	90	90	90	90
Max. inlet pressure (MPa)	cont.	25	25	25	25	25	25	25	25	25
Max. inlet pressure (MPa)	int.	30	30	30	30	30	30	30	30	30
Weight (kg)		9.8	10	10.3	10.7	11.1	11.6	12.3	13.2	14.3

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute

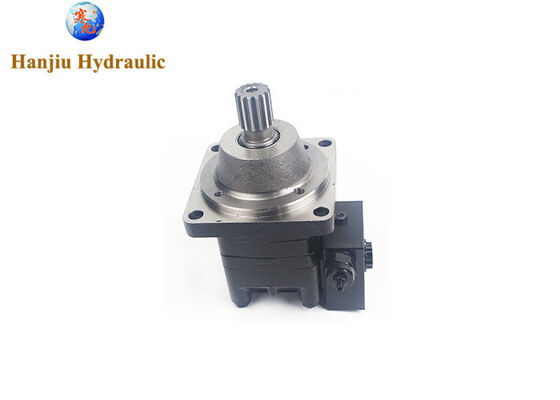

BMSY100 hydraulic low speed high torque wheel motor with crossover relief valve

Contact a hydraulics specialist or HANJIU . Solve all your hydraulic motor problems

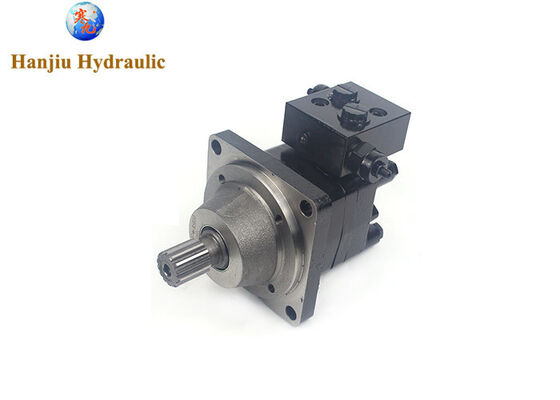

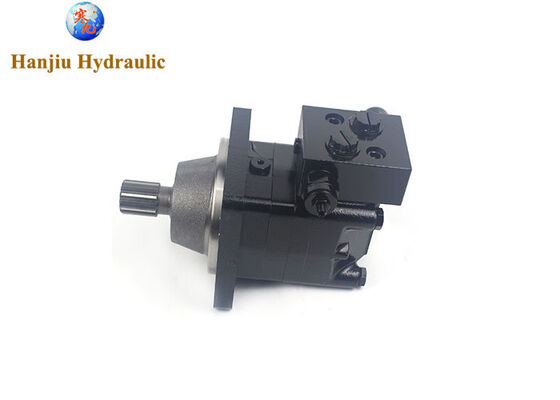

BMSY100 hydraulic low speed high torque wheel motor with crossover relief valve

Specifying the correct HANJIU OMS orbital motor follows a systematic engineering procedure:

● Step 1: Calculate required output torque including application service factor (typically 1.5 to 2.0 for mining and construction equipment)

● Step 2: Determine available system working pressure and confirm motor pressure rating adequacy

● Step 3: Calculate required hydraulic flow rate: Q = Vg x n / 1000 (L/min)

● Step 4: Verify that calculated speed, flow, and pressure all fall within the motor's continuous duty envelope

● Step 5: Select mounting flange (E2, E4, F6, W, E2B, SP, D, or E), shaft type (cylindrical, splined, or tapered), and port configuration

● Step 6: Specify shaft seal (standard or high-pressure HPS) based on expected return line back pressure
