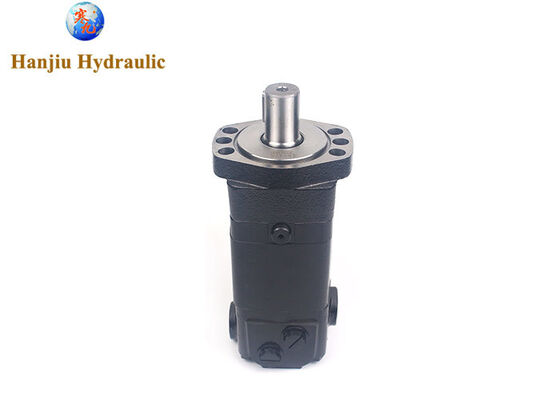

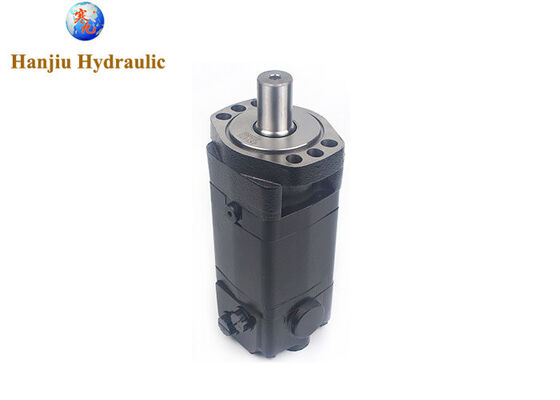

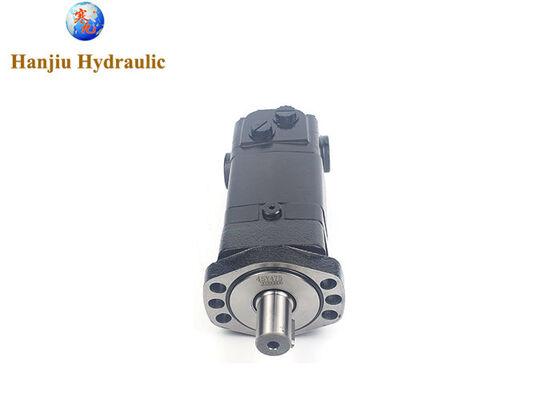

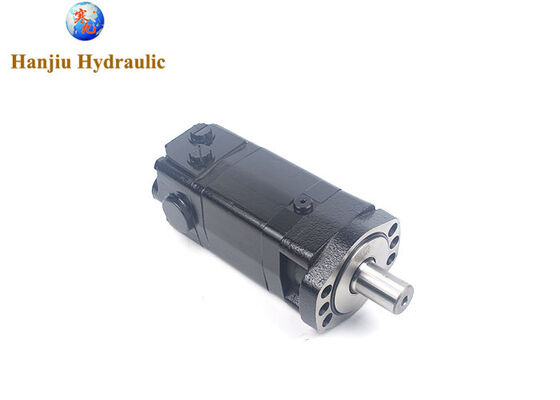

Hydraulic Motor Replacement 151F2376, 500cc Magneto flange, key shaft orbit motor
Product details:
type code BMSY-500-F6-G-SU
-
- displacement: 500 ccm/REV
- ports: 7/8-14UNF
- shaft:
Shaft Ø31.75 ,
parllel key 7. 96×7 . 96×31 .75
- Magneto mount, six holes
- internal check valve
- usage without drain line possible
- OEM quality, made in Europe
- optimised for small spaces
BMSY Main Specifications:
| Type |
BMSY
80 |
BMSY
100 |
BMSY
125 |
BMSY
160 |
BMSY
200 |
BMSY
250 |
BMSY
315 |
BMSY
400 |
BMSY
475
|
Geometric displacement
(cm3 /rev.) |
80.6 |
100.8 |
125 |
157.2 |
200 |
252 |
314.5 |
370 |
475 |
| Max. speed (rpm) |
cont. |
800 |
748 |
600 |
470 |
375 |
300 |
240 |
185 |
155 |
| int. |
988 |
900 |
720 |
560 |
450 |
360 |
280 |
225 |
185 |
| Max. torque (N·m) |
cont. |
225 |
290 |
365 |
485 |
586 |
708 |
880 |
880 |
910 |
| int. |
305 |
390 |
480 |
590 |
705 |
860 |
1000 |
980 |
990 |
| Max. output (kW) |
cont. |
16 |
18 |
18 |
18.1 |
18.1 |
18 |
17 |
11 |
9 |
| int. |
20 |
22 |
23 |
25 |
24 |
23.8 |
20.2 |
12 |
11 |
| Max. pressure drop (MPa) |
cont. |
20.5 |
20.5 |
20.5 |
21 |
21 |
20 |
20 |
16 |
14 |
| int. |
27.5 |
27.5 |
27.5 |
26 |
25 |
25 |
24 |
19 |
15 |
| peak |
29.5 |
29.5 |
29.5 |
28 |
27 |
27 |
26 |
21 |
17.5 |
| Max. flow (L/min) |
cont. |
65 |
75 |
75 |
75 |
75 |
75 |
75 |
75 |
75 |
| int. |
80 |
90 |
90 |
90 |
90 |
90 |
90 |
90 |
90 |
| Max. inlet pressure (MPa) |
cont. |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
| int. |
30 |
30 |
30 |
30 |
30 |
30 |
30 |
30 |
30 |
| Weight (kg) |
9.8 |
10 |
10.3 |
10.7 |
11.1 |
11.6 |
12.3 |
13.2 |
14.3 |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute
