Hydraulic drive motor BMSY-400cc Magneto flange, 31.75mm key shaft,7/8-14unf port size for sweepers

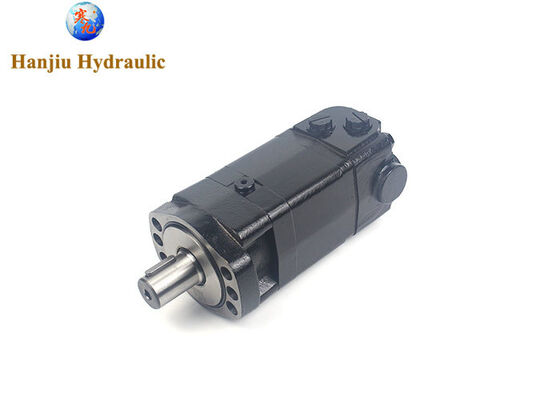

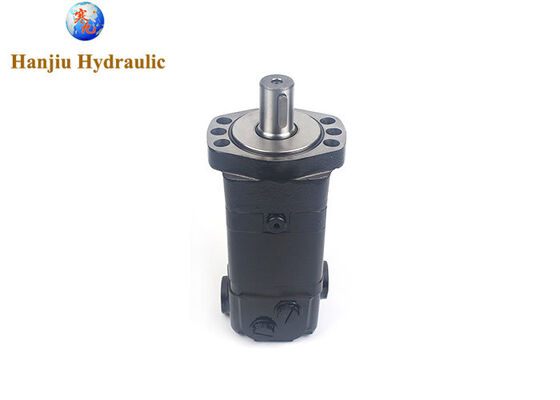

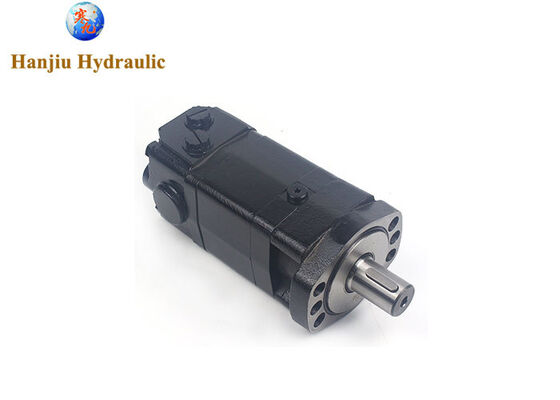

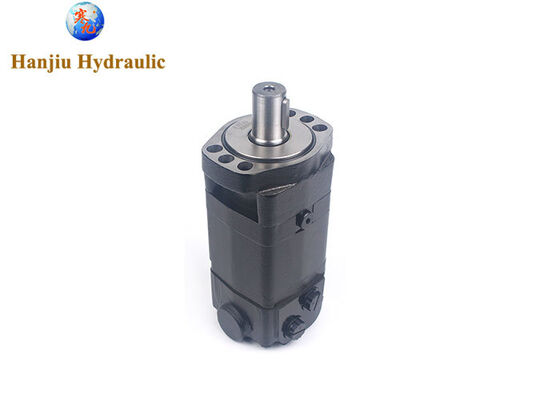

Large Image : Hydraulic drive motor BMSY-400cc Magneto flange, 31.75mm key shaft,7/8-14unf port size for sweepers

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU CHINA
Certification:	CE
Model Number:	BMSY-400-F6-G-SU

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	Contact the seller to ask
Packaging Details:	Box, Pallet
Delivery Time:	25 - 35 work days
Payment Terms:	L/C,D/A,T/T,Western Union,Payple
Supply Ability:	100000 pieces per year

Contact Now

Detailed Product Description

Item:	Low Speed High Torque Motor	Application:	Sweepers
Flange:	Magneto Flange	Shaft:	31.75mm Straight Key Shaft
Materia:	Cast Iron	Warranty:	1 Year
Highlight:	Hydraulic drive motor BMSY-400cc with magneto flange , Low speed high torque hydraulic motor 31.75mm key shaft , Hydraulic motor for sweepers 7/8-14UNF port size

Hydraulic drive motor BMSY-400cc Magneto flange, 31.75mm key shaft,7/8-14unf port size for sweepers

Product details:

type code BMSY-400-F6-G-SU=151F2375

Specifications

Type: Low speed, high torque (LSHT) orbital motor

Displacement: 393 cc / rev

Max Speed: 190 RPM

Max Continuous Torque: 865 Nm

Max Pressure Drop: 160 bar (continuous/recommended working specs vary up to 210 bar max)

Shaft Type: Cylindrical 1-1/4" with keyhole

Port Size: 7/8"-14 UNF (Side – Offset ports), with a 7/16"-20 UNF drain port

BMSY Main Specifications:

Type		BMSY 80	BMSY 100	BMSY 125	BMSY 160	BMSY 200	BMSY 250	BMSY 315	BMSY 400	BMSY 475
Geometric displacement (cm3 /rev.)		80.6	100.8	125	157.2	200	252	314.5	370	475
Max. speed (rpm)	cont.	800	748	600	470	375	300	240	185	155
Max. speed (rpm)	int.	988	900	720	560	450	360	280	225	185
Max. torque (N·m)	cont.	225	290	365	485	586	708	880	880	910
Max. torque (N·m)	int.	305	390	480	590	705	860	1000	980	990
Max. output (kW)	cont.	16	18	18	18.1	18.1	18	17	11	9
Max. output (kW)	int.	20	22	23	25	24	23.8	20.2	12	11
Max. pressure drop (MPa)	cont.	20.5	20.5	20.5	21	21	20	20	16	14
	int.	27.5	27.5	27.5	26	25	25	24	19	15
	peak	29.5	29.5	29.5	28	27	27	26	21	17.5
Max. flow (L/min)	cont.	65	75	75	75	75	75	75	75	75
Max. flow (L/min)	int.	80	90	90	90	90	90	90	90	90
Max. inlet pressure (MPa)	cont.	25	25	25	25	25	25	25	25	25
Max. inlet pressure (MPa)	int.	30	30	30	30	30	30	30	30	30
Weight (kg)		9.8	10	10.3	10.7	11.1	11.6	12.3	13.2	14.3

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute

Hydraulic drive motor BMSY-400cc Magneto flange, 31.75mm key shaft,7/8-14unf port size for sweepers

Contact a hydraulics specialist or HANJIU . Solve all your hydraulic motor problems

Hydraulic drive motor BMSY-400cc Magneto flange, 31.75mm key shaft,7/8-14unf port size for sweepers

HANJIU Technology provides comprehensive technical support through multiple channels: direct telephone consultation during extended business hours; email technical inquiry with guaranteed response within 2 hours; complete technical documentation including datasheets, installation manuals, troubleshooting guides, and hydraulic schematic diagrams available for download; video technical support and remote diagnostic assistance for complex challenges; and on-site field service for major OEM accounts and distribution partners. The technical support team comprises qualified hydraulic engineers with decades of combined experience across construction machinery, mining equipment, agricultural systems, marine hydraulics, and heavy industrial applications.
